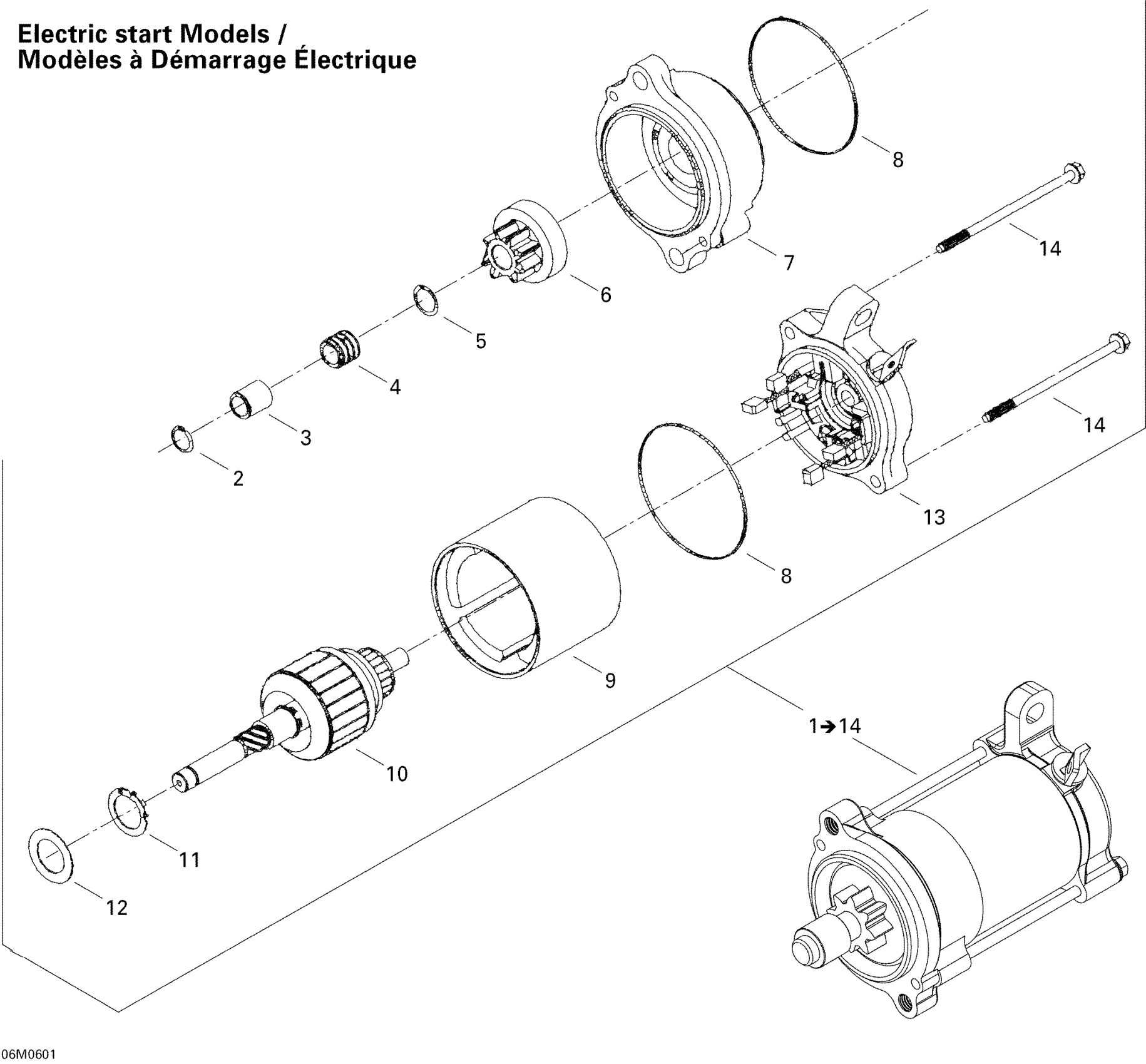

Ski-Doo Tundra 300F, 2006 Electric Starter Diagram

#

Description
Price

1

STARTER - Call your local BRP dealership | Includes 1 to 6

515176537

Unavailable

2

SNAP RING - Call your local BRP dealership

410207700

Unavailable

3

STOP BUSHING - Call your local BRP dealership

410207800

Unavailable

4

SPRING - Call your local BRP dealership

410207900

Unavailable

5

WASHER PLATE - Call your local BRP dealership

278001105

Unavailable

6

Starter Clutch

410922982

Unavailable

7

STARTER HOUSING - Call your local BRP dealership

410922983

Unavailable

8

O-RING - Call your local BRP dealership

410922984

Unavailable

9

Starter Housing

410922985

Unavailable

10

ARMATURE ASS'Y - Call your local BRP dealership

410922986

Unavailable

11

ARMATURE COLLAR - Call your local BRP dealership

410922987

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Starter Housing

410922988

Unavailable

14

BOLT - Call your local BRP dealership

410922989

Unavailable
