Description

Price

1>115

FRAME TUNDRA XTREME NOIR - Call your local BRP dealership | Includes 10 to 10ce

415130261

$3.00

5

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

10

RH Deflector, Black Polypropylene

518325782

$13.99

10

LH Deflector, Black Polypropylene

518325783

$13.99

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

25

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

30>30a

Front Radiator | Includes 10b to 10b2

518326485

$444.99

30>30a

Front Radiator | Includes 10b to 10b2

518326485

$444.99

40

LH Stirup

518326820

$37.99

45

Panel Nut M5 X 0.8

250000958

$4.23

50

Hemlock Rivet, 6.5 mm

293150119

$4.29

55

Hemlock Rivet, 6.4 mm

293150174

$7.86

65

Support

518326960

$12.99

70

Tork Screw M6 X 18

250000536

$2.11

75

Flat Washer

250200039

$0.74

80

Attach | Includes 10n to 10p

518326986

$12.99

80a

Clinch Stud M6 X 20

250300027

$2.09

85

Elastic Stop Nut M6

232561414

$0.55

90

Torx Screw M8 X 55

250000535

$3.17

95

Hex. Flange Screw M6 X 16

207661644

$0.74

105

Socket Screw Head 1/4-20 X 5/8''

250000512

$6.45

110

Elastic Hex. Flange Nut 1/4-20

250100140

$7.51

115

Monobolt Rivet, 4.8 mm

293150191

$0.99

118

Module E TUNDRA Xtreme | Includes 10av to 10w

518326927

$769.99

120

RH Member

518326795

$284.99

125

LH Member

518326796

$229.99

130

Front Member

518326198

$64.99

130a

Clinch Stud

250300038

$4.29

140

Hemlock Rivet 6.5 mm

293150120

$7.41

150

RH Front Member

518325949

$19.99

150

LH Front Member

518325950

$19.49

160

Front Bottom Plate

518325951

$31.99

165

Avex Rivet

390909100

$0.30

170

Monobolt Rivet 6.4

293150182

$3.09

180

Hex. Flange Screw M6 X 10

210261040

$1.48

185

Flat Washer 6 mm

234061410

$1.36

190

RH Reinforcement

518324874

$27.99

190

LH Reinforcement

518324875

$27.99

200

RH Slide Bracket

518325955

$45.99

200

LH Slide Bracket

518325956

$49.99

210

RH Rear Base

518325973

$21.99

210

LH Rear Base | Includes 10v to 10x

518325974

$21.99

225

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

225

LH Roller | Includes 10bd to 10be

518325160

$78.99

260

Seal

518326656

$9.19

265>265a

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$720.49

265a

Stavex Rivet

293150144

$0.82

270

Rear Cap

518327105

$22.49

275

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

275a

Avex Rivet

390909200

$0.30

278

Full Moon Dart 5 mm

293730042

$2.21

282

Stavex Rivet

293150144

$0.82

284

Henrob Rivet

293150146

$2.09

286

Ornit Rivet 6,5 X 14.5

293150266

$2.40

290

U-Attach

518326961

$10.99

294

Tork Screw M6 X 16

250000534

$2.11

296

Hex. Flange Nut M6

233061414

$1.68

298

Pop Rivet 3/16"

390402400

$0.35

300a

Cross Member S Module | Includes 300a to 300b

518328327

$469.99

300a1

Front Suspension Support

518327487

$289.99

300b

Front Member

518326975

$389.99

500>500a

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

510

Hex. Flange Elastic Nut M8

233281414

$1.47

700

Front Member, S Module

518328306

$244.99

740

Flat Washer

224061201

$1.37

780

Pop Rivet 3/16"

390402200

$0.35

900

Rear Member

518326559

$264.99

1100

Upper Lateral Column Support

518325114

$22.49

1110

Hex. Flange Screw M6 X 20

207662044

$2.00

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1200

Center Column Support

518325115

$22.49

1210

Hex. Flange Screw M6 X 25

207662544

$0.64

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1300a

Black Rear Bumper, 154"

518326611

$111.99

1300b

Black RH Cap

520000965

$11.49

1300b

Black LH Cap

520000964

$11.49

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

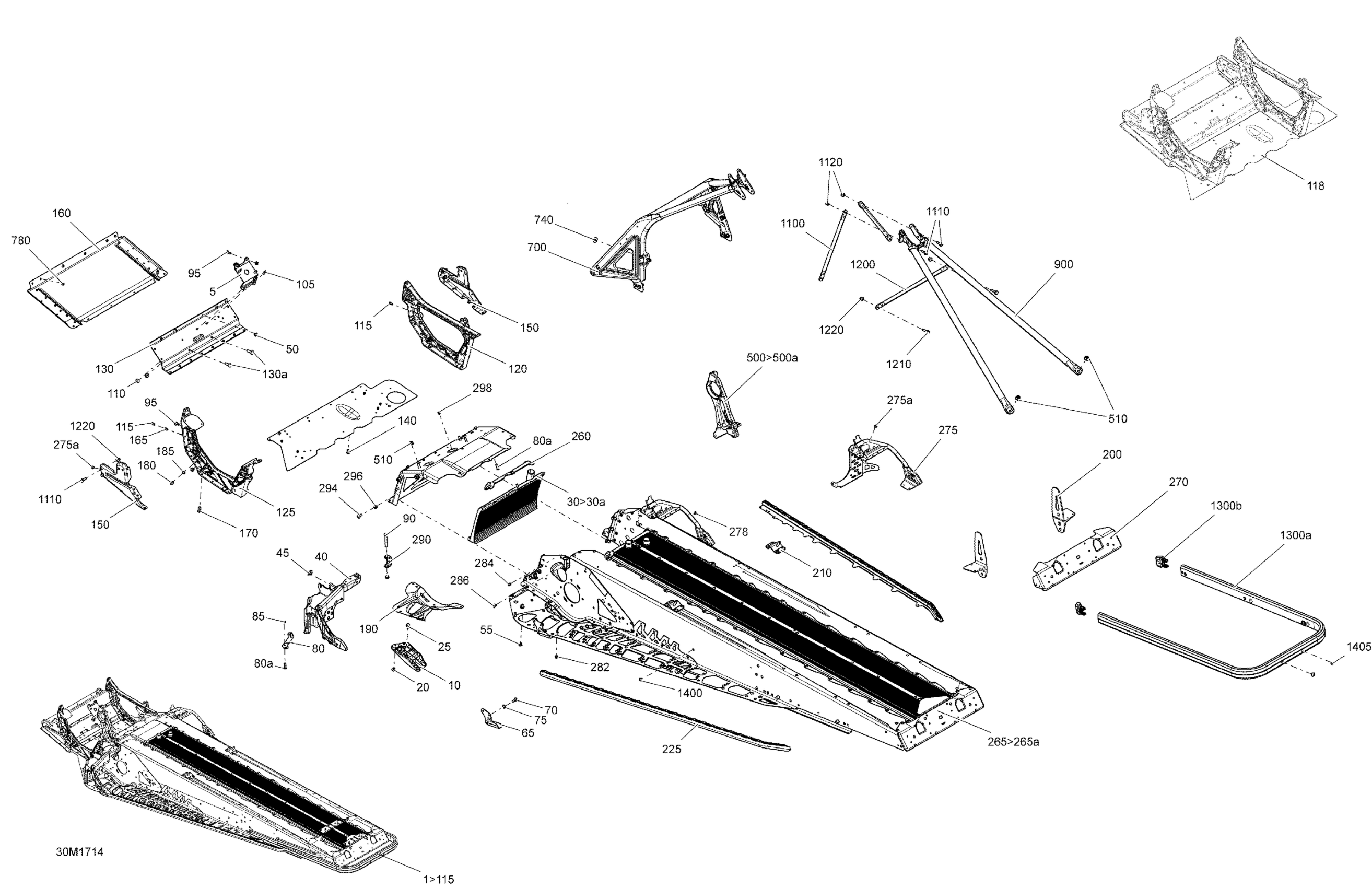

Ski-Doo TUNDRA - 2-STROKE - XTREME, 2017 09- Frame - All Models Diagram
