Description

Price

100a

Black, RH Pivot Support Long

503195759

$88.99

100a

Black, LH Pivot Support Long

503195760

$88.99

100c

Runner Pivot | Includes 100c to 100c3

503192647

$56.99

100d

Hex. Elastic Stop Nut M8

232581414

$0.56

100e

Cam Axle

503191608

$17.49

100f

RH Spring Cam

503191190

$15.29

100g

LH Spring Cam

503191668

$12.58

100h

LH Block

503192426

$16.49

100h

RH Block

503192427

$16.49

100k

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

100m

Block Guide

503189488

$39.99

100n

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

100p

Washer | 7415/7416. 7417/7418.

503189148

$2.85

100q

Grease Fitting

408200700

$3.49

100r

Rode

503192437

$6.19

100s

Flat Washer M5

234051410

$0.53

100t

Handle

503192438

$4.99

100u

Torx Screw M5 X 14

250000742

$1.47

100v

Circlip

293370068

$0.98

100w

Compression Spring

503192436

$38.99

105

Lower Shaft

503191279

$28.99

110

Bushing

503189324

$14.15

115

Washer

503192496

$0.77

120

Hex. Screw S.Grip M10 X 55

250000605

$8.11

125

Spring

503194624

$30.49

800

Spring Support Kit

861805547

$10.49

810

Spring Support Kit

861805547

$10.49

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

1050

Stopper Strap

503192360

$20.99

1060

Flat Washer 8 mm

250200128

$4.44

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

1080

Elastic Flange Nut M8

233281466

$1.01

1090

Pivot Axle

503193435

$39.99

1100

Center Bushing

503191259

$11.49

1110

Flat Washer

250200143

$3.17

1120

Bolt M10 X 251MM

503193227

$17.29

1130

Flange Elastic Nut M10

233201466

$3.17

2000a

Front Arm | Includes 2000a to 2000b

503191752

$370.99

2000b

Extended Bushing

503191556

$7.83

2000c

Grease Fitting

408200700

$3.49

2000d1

Rocker

503192211

$83.99

2000e

Swivel Bushing

503191555

$7.83

2000f

Bushing

503193037

$16.18

2000g

Bushing | Includes 240d to 240d1

503189282

$4.34

2000h

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

2000j

Elastic Locking Nut M10 X 1.5

233601416

$1.69

2010

Bushing

503191262

$15.79

2020

Upper Shaft

503191215

$38.99

2030

Washer

503192496

$0.77

2050

Hex. Screw S.Grip M10 X 55

250000605

$8.11

2070

Lower Shaft

503191279

$28.99

2080

Bushing

503189324

$14.15

2100

Flat Washer

250200143

$3.17

2110

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3000a

Rear Arm | Includes 3000a to 3000a7

503191762

$98.49

3000b

Bushing

572080700

$17.39

3000c

Swivel Bushing

503191555

$7.83

3000d

LH Cam Adjuster

503191565

$16.49

3000d

RH Cam Adjuster

503191566

$16.49

3000f

E-Circlip

293370013

$0.65

3000g

Upper Axle, Pivot Arm

503144300

$11.65

3000h

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

3000j

Washer

503189157

$3.28

3000k

Bolt M8, Short

732601197

$15.36

3000m

Hex. Elastic Stop Nut M8

232581414

$0.56

3000n

Grease Fitting

408200700

$3.49

3000p

Extended Bushing

503191556

$7.83

3000q

Washer

503191651

$8.32

3010

Black, LH Spring Square

503193158

$79.49

3010

Black, RH Spring Square

503193159

$79.49

3070

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

3070a

Ball Bearing

503193548

$17.99

3070b

Retaining Ring

415129780

$15.79

3120

Upper Shaft

503191215

$38.99

3130

Bushing

503191262

$15.79

3140

Retaining Ring

503168800

$14.99

3150

Socket Set Screw M6 X 8

206260844

$1.48

3170

Washer

503192496

$0.77

3180

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Link Rod

503191765

$18.49

4030

Axle Bar (Long)

503190643

$17.39

4060

Washer

503192494

$3.17

4070

Screw M8 X 90

503193372

$4.44

4080

Elastic Flange Nut M8

233281466

$1.01

4090

Axle Bar (Long)

503190643

$17.39

4100

Washer

503192494

$3.17

4120

Screw M8 X 90

503193372

$4.44

4130

Elastic Flange Nut M8

233281466

$1.01

5000a

Center Shock

503192991

$248.99

5000b

Adjustment Cam

505073625

$12.99

5000c

Black, Spring | Except 600 ACE

503191343

$62.49

5000k

Black, Spring

503192279

$67.99

5000e

Spring Guide

503191872

$2.29

5000f

Spring Stopper

503194270

$19.99

5000g

Urethane Bushing

503189117

$8.19

5000h

Bushing | Includes 240d to 240d1

503189282

$4.34

5000j

Bushing

503189271

$13.99

5000m

Spring Spacer

503191281

$8.89

5010

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5020

Elastic Locking Nut M10

233601466

$2.11

5500

Rear Shock HPG SEAL

503193192

$248.99

5570

Bushing

414936000

$13.99

5590

Hex. Flange Screw M8 X 40

207684044

$1.48

5600

Elastic Flange Nut M8

233281466

$1.01

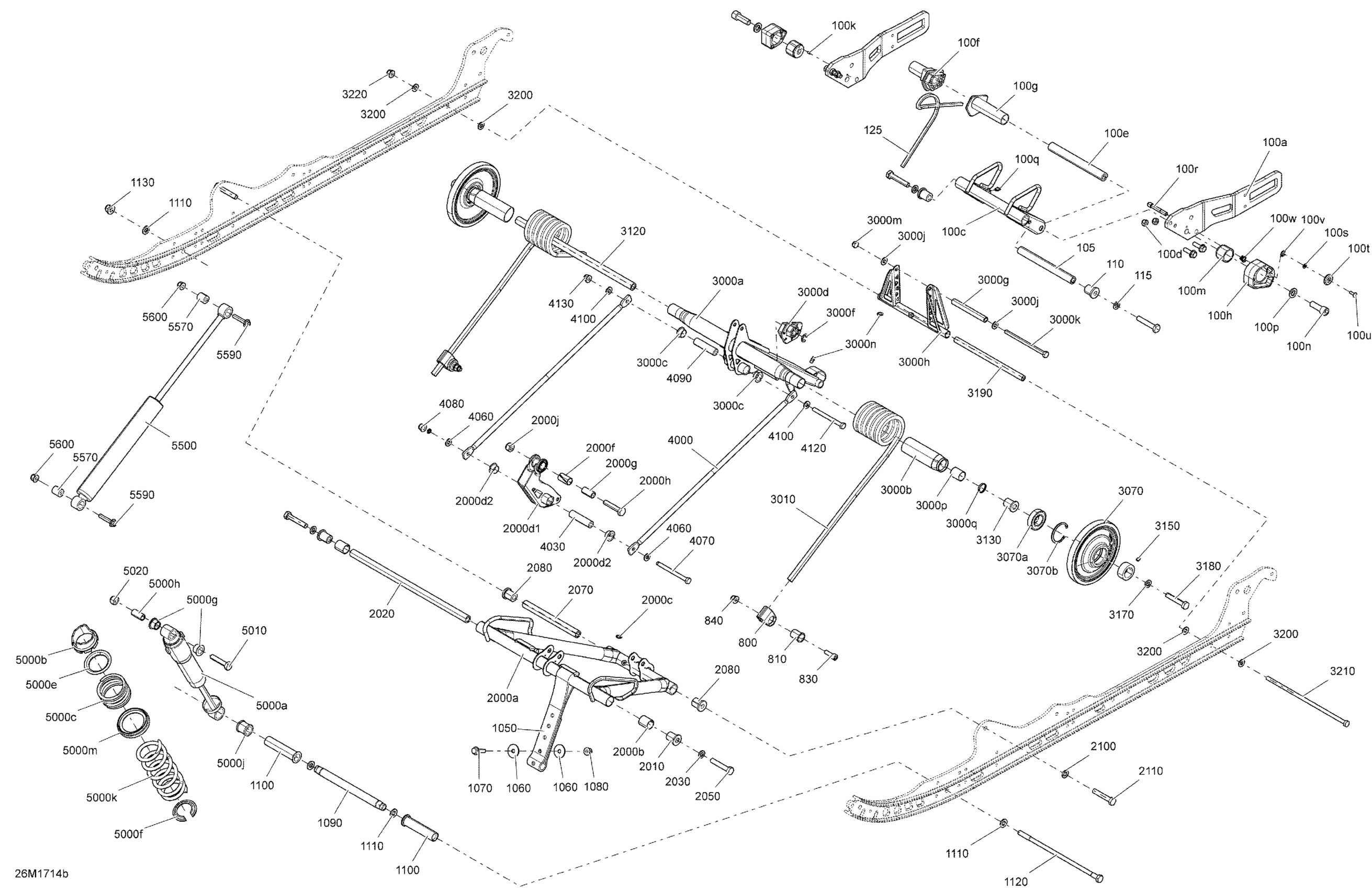

Ski-Doo TUNDRA - 2-STROKE - XTREME, 2017 08- Rear Suspension - Superior - All Models Diagram
