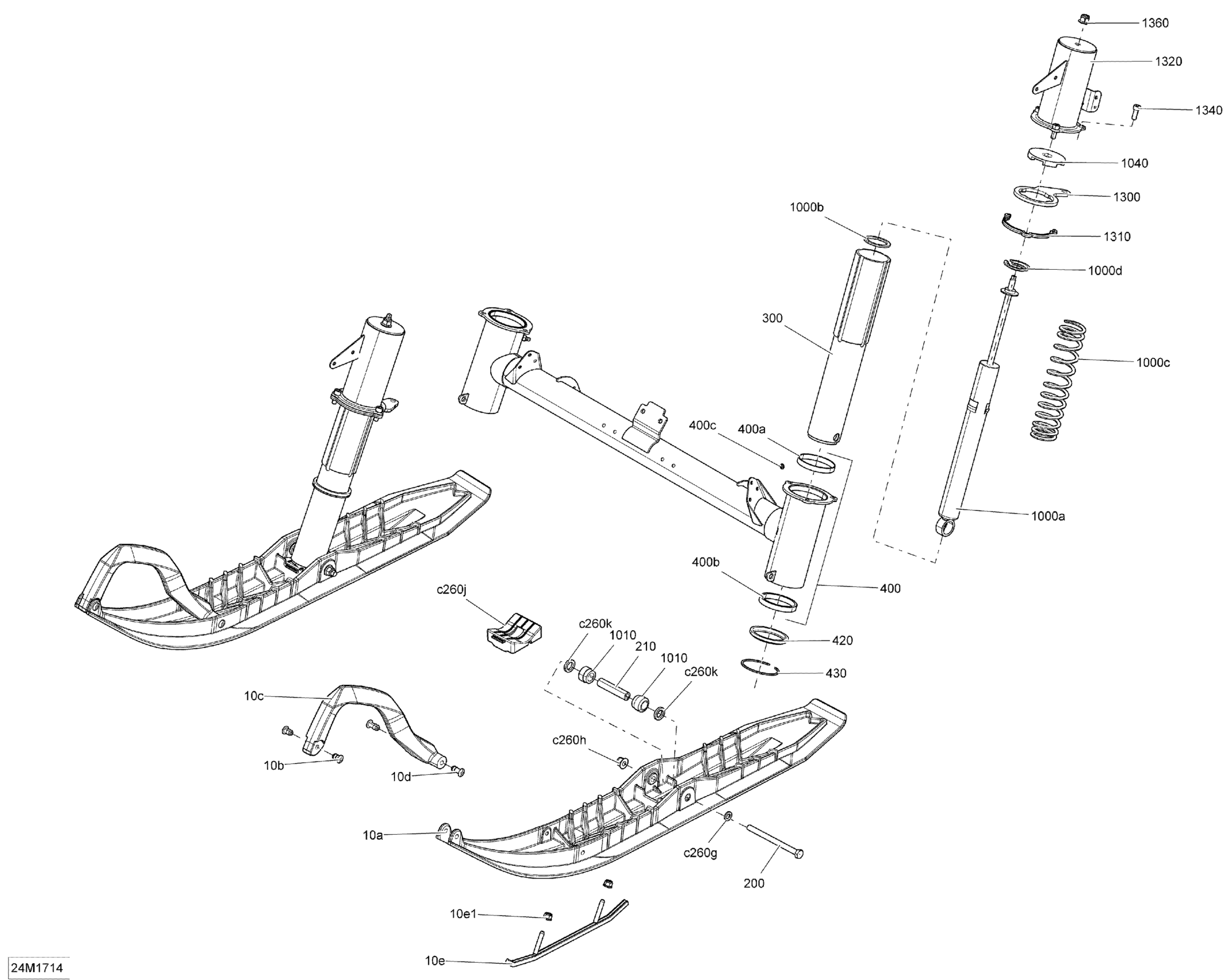

Ski-Doo TUNDRA - 2-STROKE - XTREME, 2017 Front Suspension And Ski - All Models Diagram

Description

Price

10a

Green, DS 2 Ski | Model MANTA GREEN

505073354

$181.31

10b

Retainer 17mm long

505071812

$4.30

10c

Black, Handle

505072976

$34.30

10d

Retainer 23mm Long

505072133

$4.88

10e

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

10e1

Hex. Flange Elastic Nut M8

233281414

$1.31

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

210

Ski Axle

505073209

$12.31

300

Ski Leg

505073200

$281.31

400

S2 Modul, Ass'y | Includes 400 to 400c

505073497

$473.10

400a

Upper Cushion

414803100

$8.16

400b

Lower Cushion

414803200

$11.36

400c

Grease Fitting

408200700

$3.21

420

Seal Oil

505072696

$44.75

430

Circlip

505072698

$12.51

1000a

Shock

505073046

$152.96

1000b

Washer

505072578

$12.18

1000c

Black, Spring | Model Europe

505073204

$64.90

1000c

Black Spring

505073327

$75.34

1000d

Spring Stopper

505072619

$9.93

1010

Cushion

572034500

$9.69

1040

Stopper

570025800

$12.27

1300

Steering Arm

505073823

$88.03

1310

Spacer

505073983

$23.85

1320

LH Suspension Cover | Includes 1320 to 1320a

505073449

$59.67

1320

RH Suspension Cover | Includes 1330 to 1330a

505073450

$59.67

1340

Socket Head Screw M8 X 20

205082044

$1.06

1360

Hex. Flange Elastic Nut M10

233201414

$1.45

c260g

Washer

503192496

$0.73

c260h

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

c260j

Ski Stopper

505072594

$17.13

c260k

Spacer

505072579

$7.36
