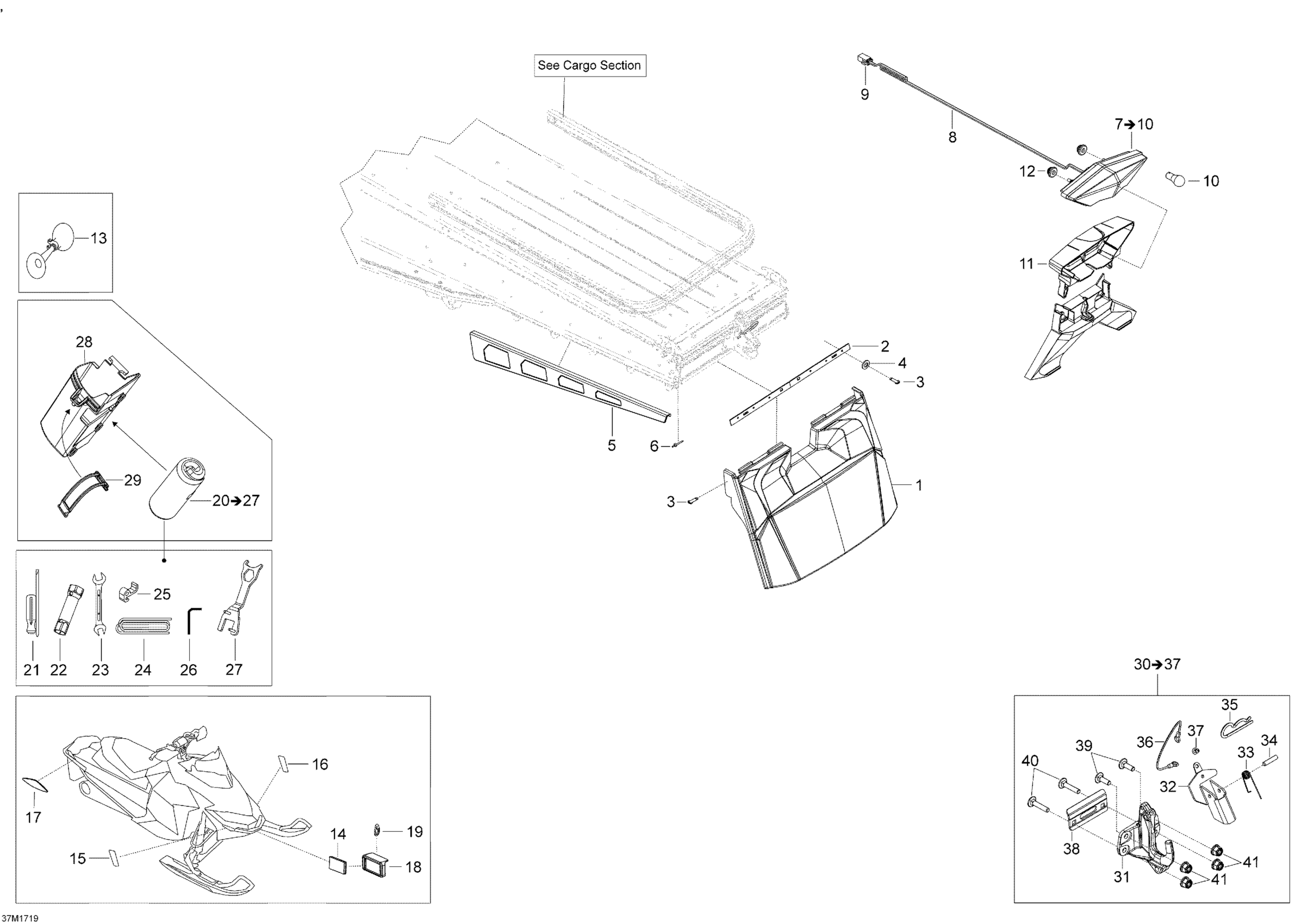

Ski-Doo TUNDRA - 2-STROKE - WT Europe, 2017 Utilities Diagram

#

Description
Price

1

Snow Guard

520001411

$106.99

2

Plate

520001021

$37.99

3

Forming Screw M5 x 16

250000676

$1.01

4

Washer M5

250200025

$0.74

5

RH Protector

520000693

$52.99

5

LH Protector

520000694

$52.99

6

Rivet Hucklok

293150163

$2.99

7

Rear Light | Includes 200 to 200a

520000848

$99.49

8

Rear Wiring Harness

520000849

$53.99

9

Male Housing, 3 Circuits

515175494

$16.18

10

Bulb

520000758

$9.10

11

Rear Light Cover

511000764

$38.99

12

Stopper Rubber

705014429

$5.95

13

Horn

549011291

$35.99

14

Reflector (Bright)

21118

$28.99

15

Yellow, RH Reflector

520001600

$33.99

16

Yellow, LH Reflector

520001601

$33.99

17

Amber, Lateral Reflector

705002423

$15.49

18

Deep Black, Reflector Support

520000871

$5.79

19

TIE RAP - Call your local BRP dealership

27120

$0.95

20

Tools Kit | Includes 1400 to 1400b

520001593

$51.49

21

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

22

Set Key, 16/21 mm

529000046

$14.49

23

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

24

Was 412500100 Rope-Starter

219704403

$158.99

25

Starter Grip

529000060

$14.15

26

Spacing Tool

520001142

$10.52

27

Wrench

520001499

$13.73

28

Tool Kit Rack

520000894

$14.99

29

Latch

520000528

$7.69

30

Hitch Ass'y | Includes 3600 to 3600f

520001774

$73.99

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Pin

41012

$6.39

35

Hair pin

41029

$4.44

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Avex Rivet

390909100

$0.30

38

Plate

520000727

$36.99

39

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

40

Bolt Carriage M8 X 40

207784044

$1.15

41

Hex. Flange Elastic Nut M8

233281414

$1.47
