Description

Price

1

LH Lower Bottom Pan

502007836

$224.99

2

RH Lower Bottom Pan

502007837

$199.99

3

Heat Shield | Model SWT, Engine 550F

508000829

Unavailable

4

Heat Isolation Plate

502007255

$5.79

5

Rivet | Except Package SWT

293150211

$2.19

6

Heat Shield | Model SWT, Engine 550F

508000830

Unavailable

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

8

Panel Nut M6 X 1.0

250100198

$2.11

9

Support

502007688

$18.49

10

Hex. Flange Screw M6 X 70

207667056

$4.44

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Front Grille

502007140

$89.99

13

Panel Nut M6 X 1.0

250100198

$2.11

14

Torx Screw M6 X 20

250000722

$1.68

15

Deep Black, RH Bottom Pan

502008015

$144.99

16

Insulator | Except Package EXTREME

502007009

$19.49

17

Heat Shield | Engine 550F

508000828

Unavailable

18

Torx Screw M6 X 20

250000722

$1.68

19

Deep Black, LH Bottom Pan

502008017

$139.99

20

Insulator

502007088

$67.99

21

Insulator

502007131

$29.99

22

Insulator

502007185

$28.99

23

Torx Screw M6 X 20

250000722

$1.68

24

Clear Anod. Bumper | Package SWT & LE

502007684

$121.99

25

Full Moon Dart 8 mm

293730041

$2.21

26

LH Bottom Pan Fastener

502007648

Unavailable

27

RH Bottom Pan Fastener

502007629

Unavailable

28

Clinch Nut M6 Hexsert

605636003

$4.23

29

Hex. Flange Screw M6 X 40

207664044

$2.22

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

31

BUMPER SUPPORT - Call your local BRP dealership

502007628

Unavailable

32

Hex. Flange Screw M6 X 20

207662044

$2.00

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Oil Plate

518328879

$13.49

35

Clinch Nut M6 Hexsert

605636003

$4.23

36

Torx Screw M6 X 20

250000722

$1.68

37

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

38

Flat Washer 8 mm

234082410

$1.47

39

Torx Screw M6 X 20

250000722

$1.68

40

Panel Nut M6 X 1.0

250100198

$2.11

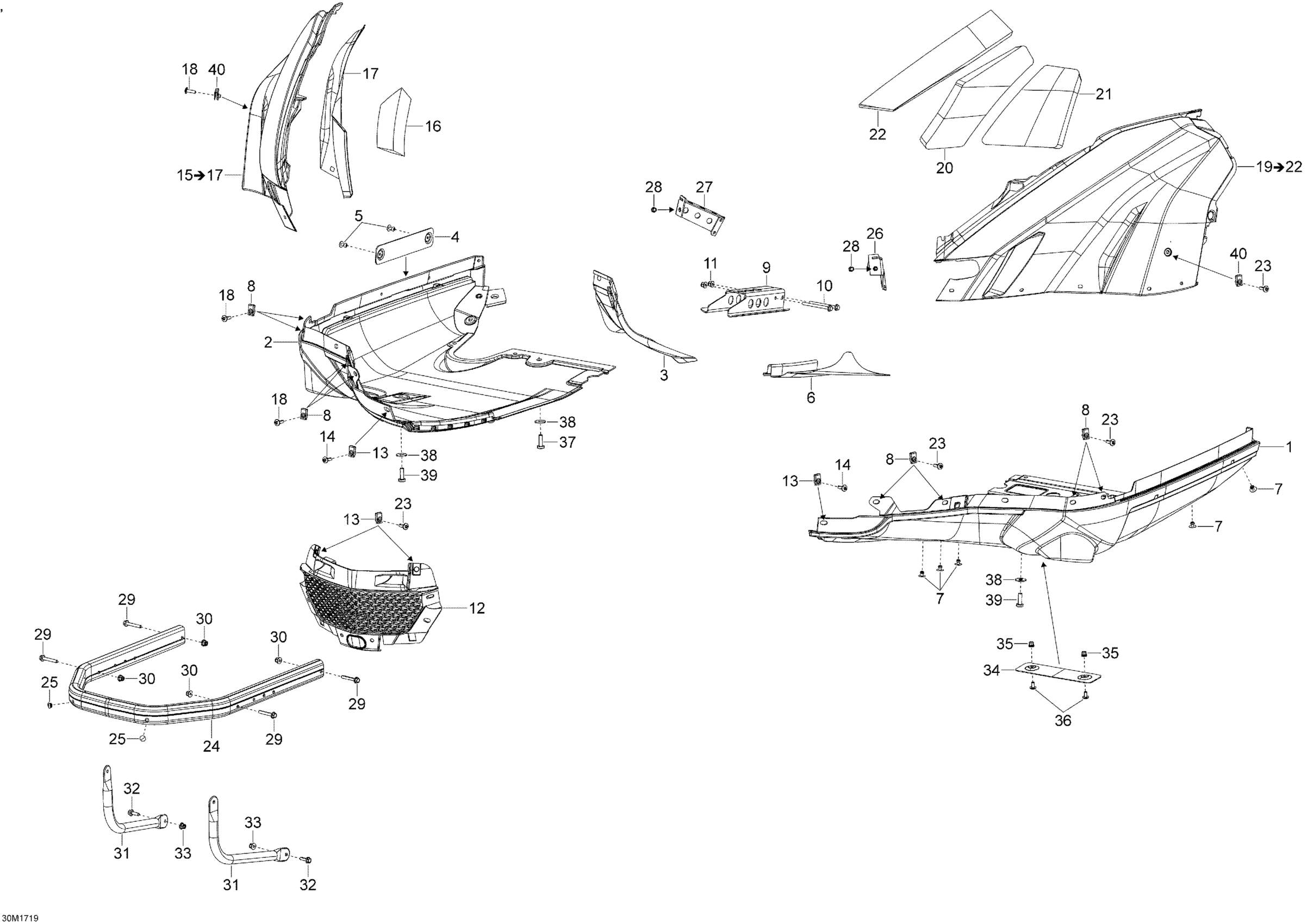

Ski-Doo TUNDRA - 2-STROKE - WT Europe, 2017 09- Bottom Pan Diagram

LH Lower Bottom Pan

RH Lower Bottom Pan

Heat Shield | Model SWT, Engine 550F

Heat Isolation Plate

Rivet | Except Package SWT

Heat Shield | Model SWT, Engine 550F

Pop Rivet 3/16" | DS 650 X

Panel Nut M6 X 1.0

Support

Hex. Flange Screw M6 X 70

Hex. Flange Elastic Nut M6 x 1.0

Front Grille

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Deep Black, RH Bottom Pan

Insulator | Except Package EXTREME

Heat Shield | Engine 550F

Torx Screw M6 X 20

Deep Black, LH Bottom Pan

Insulator

Insulator

Insulator

Torx Screw M6 X 20

Clear Anod. Bumper | Package SWT & LE

Full Moon Dart 8 mm

LH Bottom Pan Fastener

RH Bottom Pan Fastener

Clinch Nut M6 Hexsert

Hex. Flange Screw M6 X 40

Hex. Flange Elastic Nut M6 x 1.0

BUMPER SUPPORT - Call your local BRP dealership

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Oil Plate

Clinch Nut M6 Hexsert

Torx Screw M6 X 20

Torx Screw M8 X 1.25 X 25, Scotch Grip

Flat Washer 8 mm

Torx Screw M6 X 20

Panel Nut M6 X 1.0
