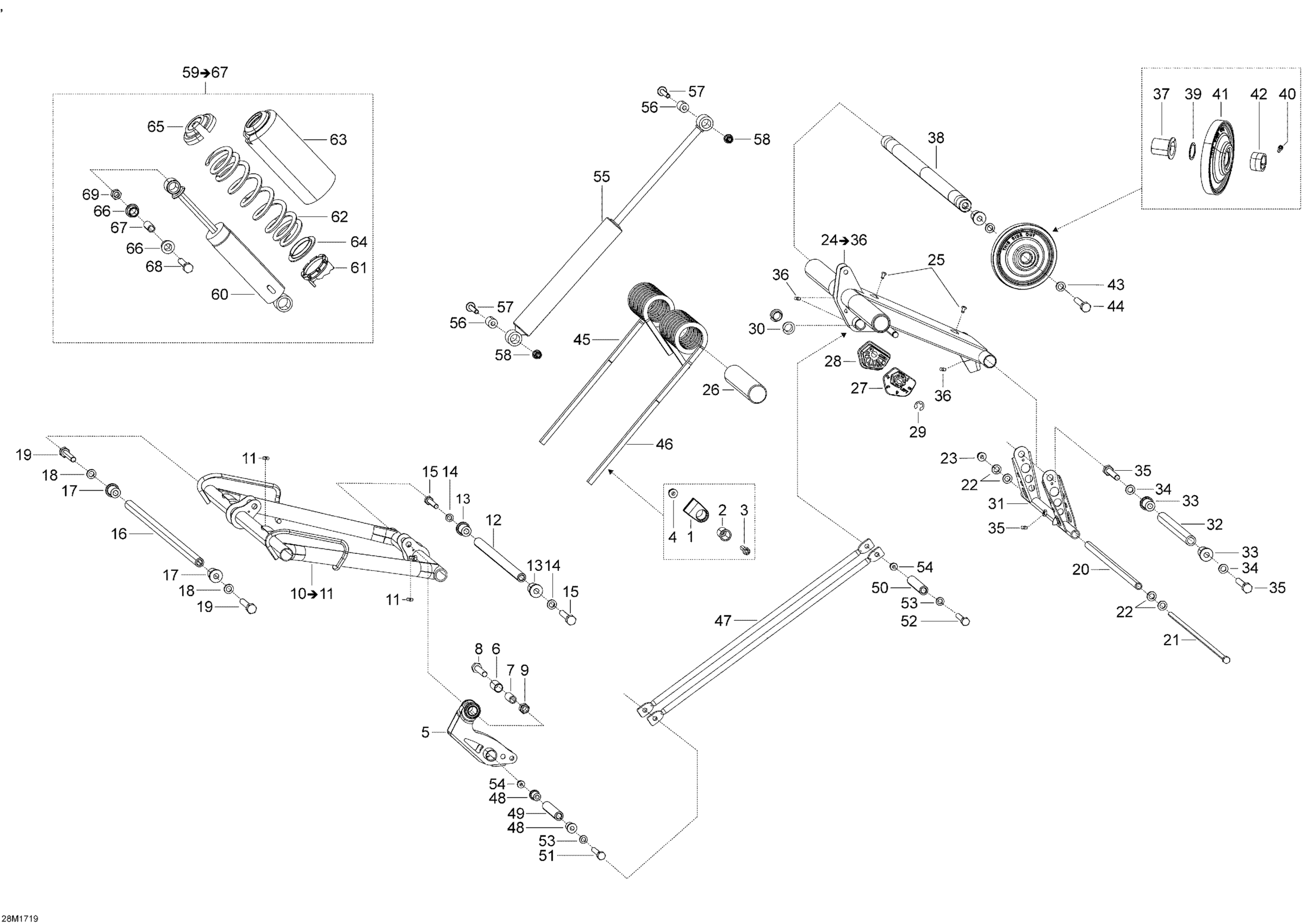

Ski-Doo TUNDRA - 2-STROKE - WT Europe, 2017 08- Rear Suspension - B Diagram

#

Description
Price

1

Spring Support Kit

861805547

$10.49

2

Spring Support Kit

861805547

$10.49

3

Socket Head Screw M8 X 25

205082544

$1.15

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Rocker

503192211

$83.99

6

Bushing

503193037

$16.18

7

Bushing | Includes 240d to 240d1

503189282

$4.34

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

9

Elastic Locking Nut M10 X 1.5

233601416

$1.69

10

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$222.49

11

Grease Fitting

408200700

$3.49

12

Lower Shaft

503191390

$28.99

13

Bushing

503189324

$14.15

14

Washer

503192496

$0.77

15

Hex. Screw S.Grip M10 X 55

250000605

$8.11

16

Upper Shaft

503191391

$36.99

17

Bushing

503189324

$14.15

18

Washer

503189564

$0.74

19

Hex. Screw S.Grip M10 X 55

250000605

$8.11

20

Axle Pivot

503191396

$80.49

21

Bolt 369MM

503195156

$25.99

22

Washer

503189157

$3.28

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Rear Arm Ass'y | Includes 24 To 37

503191709

Unavailable

25

Black, Dart

414644300

$0.98

26

Not Available As Spare Part - Friction Washer

Unavailable

27

LH Cam Adjuster

503191565

$16.49

28

RH Cam Adjuster

503191566

$16.49

29

E-Circlip

293370013

$0.65

30

Swivel Bushing

503191555

$7.83

31

Pivot Arm | Includes 3000j to 3000j3

503195154

$104.99

32

Lower Shaft

503192330

$45.99

33

Cushion

503191640

$5.93

34

Washer | 7415/7416. 7417/7418.

503189148

$2.85

35

Socket Head Screw M12 X 35

205523554

$4.44

36

Grease Fitting

408200700

$3.49

37

Cushion

503191451

$14.15

38

Upper Shaft

503191405

$94.99

39

Washer

503190328

$12.65

40

Socket Set Screw M6 X 8

206260844

$1.48

41

Wheel 165 | Includes 3070 to 3070a

503190803

$51.99

42

Retaining Ring

503194366

$39.99

43

Washer

503192491

$4.54

44

Socket Screw M12 X 35

250000484

$7.51

45

Black RH Square Spring

503192377

$111.49

46

Black LH Square Spring

503192378

$111.49

47

Link Rod

503191765

$18.49

48

Swivel Bushing

503191555

$7.83

49

Axle Bar (Long)

503190643

$17.39

50

Axle Bar (Long)

503190643

$17.39

51

Hex. Screw M8 X 90

207089044

$3.48

52

Hex. Screw M8 X 90

207089044

$3.48

53

Washer

503189157

$3.28

54

Hex. Flange Elastic Nut M8

233281414

$1.47

55

Rear Shock

503193520

$248.99

56

Bushing

414936000

$13.99

57

Hex. Flange Screw M8 X 40

207684044

$1.48

58

Hex. Flange Elastic Nut M8

233281414

$1.47

59

Not Available As Spare Part - Friction Washer

Unavailable

60

Center Shock

503192266

$164.49

61

Adjustment Cam

505073625

$12.99

62

Black, Spring 242MM

503191880

$67.99

63

Protector

503193663

$37.99

64

Spring Guide

503191872

$2.29

65

Spring Stopper

706200881

$12.99

66

Urethane Bushing

503189117

$8.19

67

Bushing | Includes 240d to 240d1

503189282

$4.34

68

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

69

Elastic Locking Nut M10 X 1.5

233601416

$1.69
