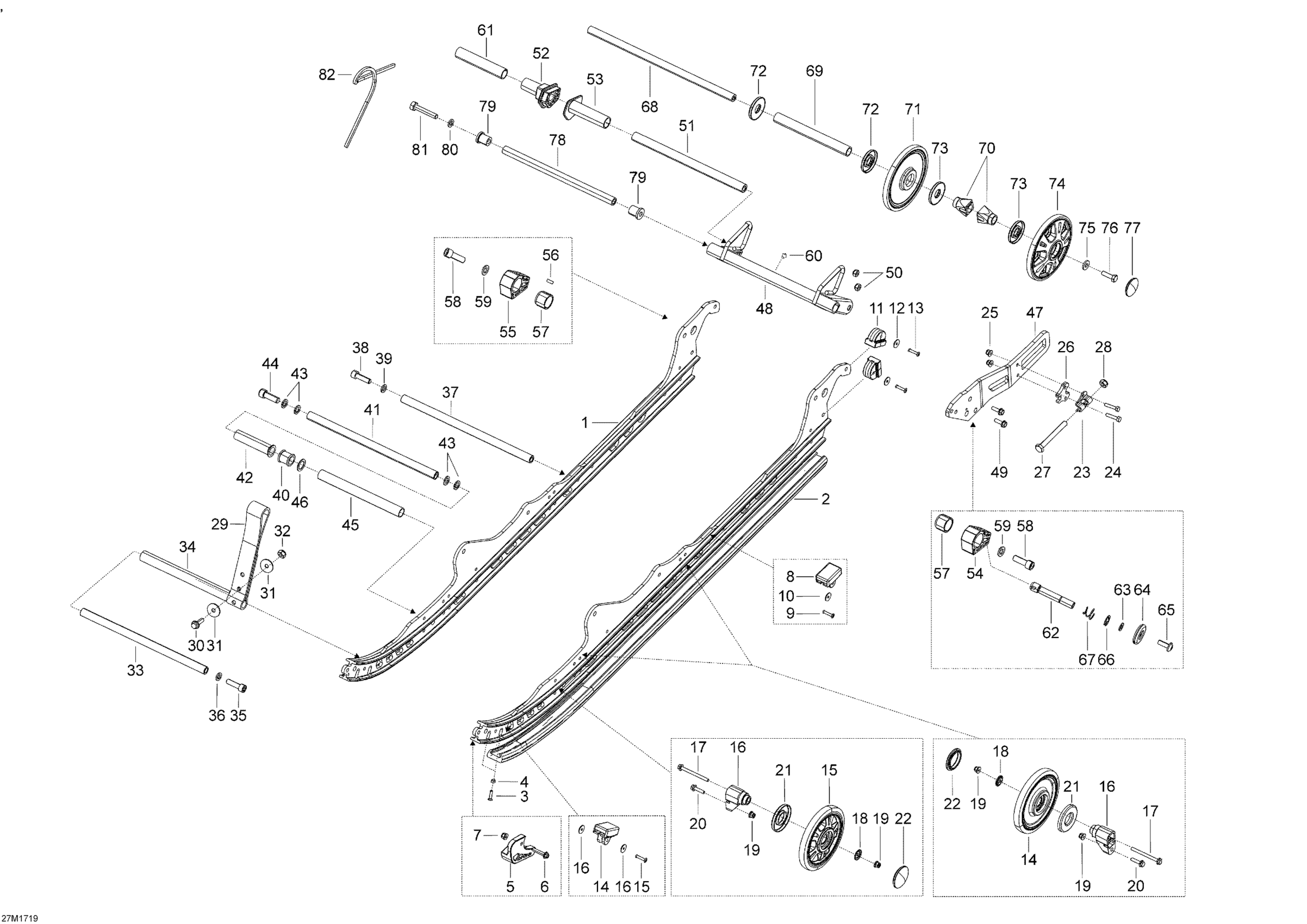

Ski-Doo TUNDRA - 2-STROKE - WT Europe, 2017 08- Rear Suspension - A Diagram

#

Description
Price

1

Runner

503194188

$244.99

2

Slider 137

503191619

$34.99

3

Phillips Screw M6 X 25

208562531

$2.11

4

Elastic Stop Nut M6

232561434

$1.99

5

Runner Protector

503192299

$24.99

6

Hex. Flange Screw M5 X 25

207652544

$0.50

7

Flange Elastic Nut M5

233251434

$2.00

8

Rubber Stopper

503190576

$12.99

9

Pop Rivet 3/16"

293150142

$2.29

10

Washer

503191273

$1.35

11

Rubber Stopper

503191291

$19.99

12

Pop Rivet 3/16"

293150142

$2.29

13

Washer

503191273

$1.35

14

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

15

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

16

Casted Support

503193894

$16.49

17

Hex. Flange Screw M6 X 70

207667056

$4.44

18

Wheel Cup M6

503191820

$4.99

19

Hex. Flange Elastic Nut M6

233261466

$2.00

20

Hex. Flange Screw M6 X 25

207662556

$4.44

21

Labyrinth Seal

503190434

$6.09

22

Black, Wheel Cap

503192771

$2.39

23

Tensioner

503192583

$8.29

24

Hex. Cap Screw M6 X 30

207063054

$6.39

25

Hex. Flange Elastic Nut M6

233261466

$2.00

26

Spacer

503193250

$16.49

27

Hex Screw M10 x 100

230100054

$6.45

28

Elastic Locking Nut M10

233601466

$2.11

29

Stopper Strap

503192360

$20.99

30

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

31

Flat Washer

224081301

$0.88

32

Hex. Flange Elastic Nut M8

233281414

$1.47

33

Axle Strap

503191418

$54.99

34

Spacer

503191419

$2.39

35

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

36

Washer

503189564

$0.74

37

Axle Strap

503191418

$54.99

38

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

39

Washer

503189564

$0.74

40

Bushing

503189271

$13.99

41

Shaft

503193967

$139.99

42

Center Bushing

503191259

$11.49

43

Washer

503189276

$3.28

44

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

45

Spacer

503191421

$45.99

46

Washer

503189273

$3.28

47

RH Rail Pivot

503193378

$88.99

47

LH Rail Pivot

503193377

$88.99

48

Welded Pivot | Includes 100c to 100c3

503191414

$94.99

49

Hex. Flange Screw M8 X 25

207682534

$2.11

50

Hex. Elastic Stop Nut M8

232581414

$0.56

51

Cam Axle

503191711

$28.99

52

RH Spring Cam

503191190

$15.29

53

LH Spring Cam

503191668

$12.58

54

LH Block

503192426

$16.49

55

RH Block

503192427

$16.49

56

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

57

Block Guide

503189488

$39.99

58

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

59

Washer | 7415/7416. 7417/7418.

503189148

$2.85

60

Grease Fitting

408200700

$3.49

61

Spacer

503191713

$12.99

62

Rode

503192437

$6.19

63

Flat Washer M5

234051410

$0.53

64

Handle

503192438

$4.99

65

Torx Screw M5 X 14

250000742

$1.47

66

Circlip

293370068

$0.98

67

Compression Spring

503192436

$38.99

68

Rear Axle

503191408

$65.99

69

Spacer

503196316

$28.99

70

Rear Wheel Spacer

503190428

$8.14

71

Black, Wheel Ass'y, 165 mm | Includes 670 to 670b

503192140

$51.99

72

Labyrinth Seal

503190682

$6.19

73

Labyrinth Seal

503190434

$6.09

74

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$51.99

75

Washer

503190439

$5.93

76

Hex. Screw With Nylon

250000019

$1.69

77

Black, Wheel Cap

503192771

$2.39

78

Lower Shaft

503191390

$28.99

79

Bushing

503189324

$14.15

80

Washer

503192496

$0.77

81

Hex. Screw S.Grip M10 X 55

250000605

$8.11

82

Spring

503194624

$30.49
