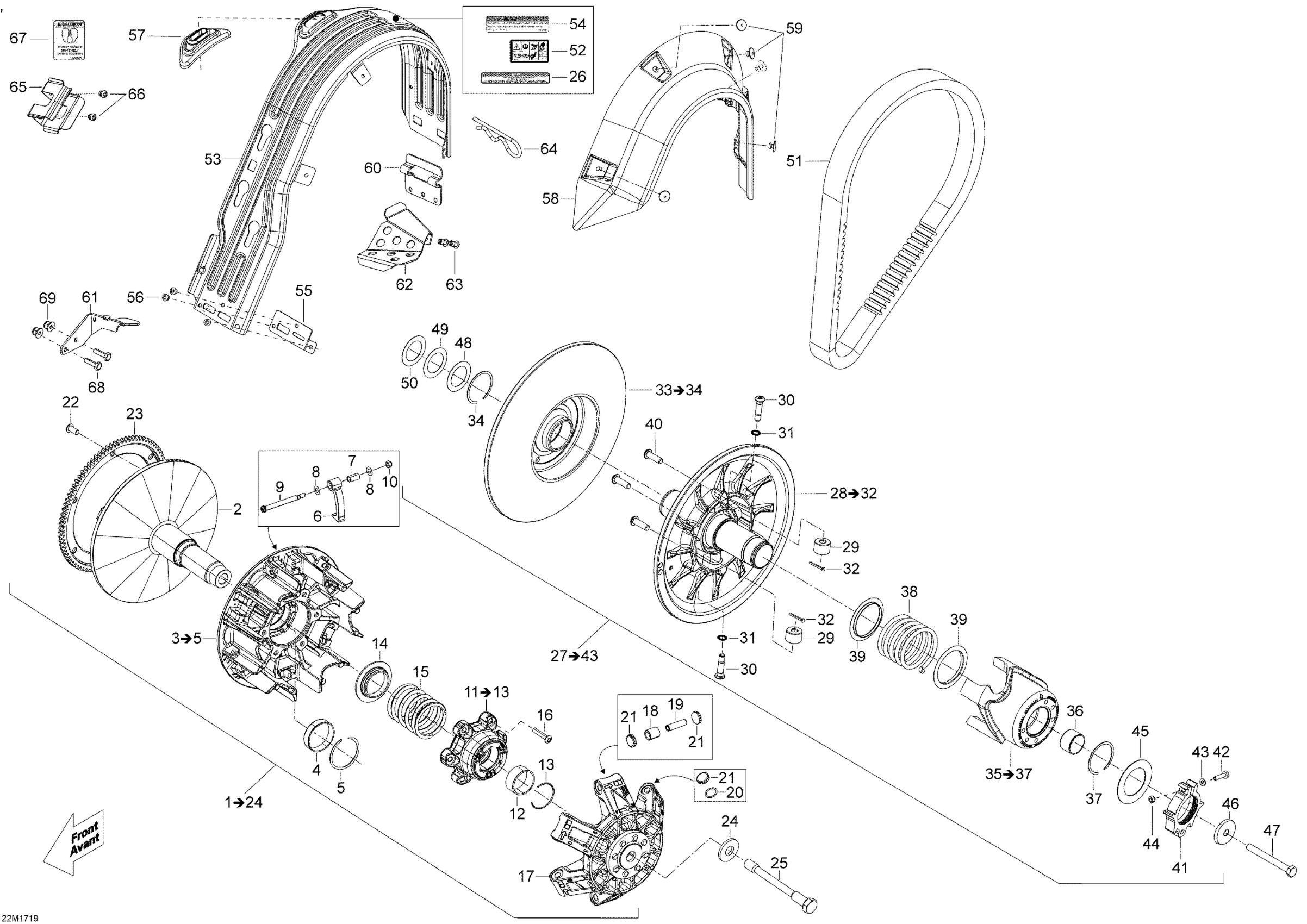

Ski-Doo TUNDRA - 2-STROKE - WT Europe, 2017 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y | Includes 10a to 10c This part replaces 417224097.

417224097

Unavailable

3

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$188.03

4

Bushing

417222758

$20.12

5

Circlip

293370037

$2.93

6

Ramp 700 Ass'y This part replaces 417223557.

417223604

$62.66

7

Not Available As Spare Parts

XXX

Unavailable

8

Thrust Washer

417223255

$1.91

9

Ramp Axle

417223694

$4.46

10

Elastic Stop Nut M5

232551414

$0.82

11

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$45.49

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Circlip

293370065

$0.93

14

Seat Spring

417223752

$13.03

15

Spring Clutch

417223748

$14.37

16

Torx Screw M6 X 30

250000580

$4.87

17

Governor Cup Ass'y

417223865

$170.12

18

Roller

417223767

$7.15

19

Roller Axle

417223257

$6.37

20

O-Ring

293300185

$0.93

21

Slider Shoe

417223919

$3.57

22

Torx Button Head Screw M8 X 16

250000706

$1.91

23

Crown Gear Launch

417223476

$156.69

24

Conical Spring Washer M14

250200144

$4.16

25

Pulley Drive Bolt

417300432

$41.76

26

Decal English

516005503

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Fixe Flange Ass'y | Includes 100a to 100f

417127392

$319.37

29

Pulley Roller

417127016

$22.36

30

Pivot Stud

417127294

$13.18

31

Lock Washer 8 mm

250200009

$2.00

32

Spring Pin M3 X 30

250400063

$2.00

33

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$143.25

34

Circlip

293370049

$4.57

35

Cam Ass'y | Includes 100c to 100c3

417127367

$148.48

36

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

37

Circlip

293370049

$4.57

38

Spring

417127061

$44.00

39

Swivel Abutment

417127116

$7.82

40

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

41

Calibration Ass'y

415129604

$22.49

42

Socket Screw M5 X 25

205052544

$1.54

43

Flat Washer M5

234051410

$0.51

44

Elastic Stop Nut M5

232551414

$0.82

45

Washer

417127155

$7.79

46

Strength Washer

517302322

$10.76

47

Hex. Cap Screw M8 X 75

207287544

$4.87

48

Spacer

417300252

$5.01

49

Spacer

417300265

$2.06

50

Shim

504112000

$5.87

51

Drive Belt

414860700

$138.03

52

Warning Decal | Europe

516003919

$7.42

53

Belt Guard

417300382

$82.81

54

Security Label, Belt Guard

516006900

Unavailable

55

Reinforcement

417300380

$5.01

56

Avex Rivet

390909200

$0.28

57

Guide

417300381

$8.73

58

Side Protector

417300356

$12.85

59

Pop Rivet 3/16"

293150103

$0.52

60

Belt Guard Bracket | Except Package SWT

417300363

$11.84

61

BELT GUARD BRACKET - Call your local BRP dealership

417300451

Unavailable

62

Brake Hose Cover | Except Package SWT

518325626

$27.58

63

Rivet Hucklok

293150163

$2.73

64

Hair Pin

114045200

$10.37

65

Bracket

517281905

$14.90

66

Avex Rivet

390909100

$0.28

67

Belt Decal, English

516005511

Unavailable

68

Hex. Screw M6 X 20 | XT Models

207162044

$0.72

69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
