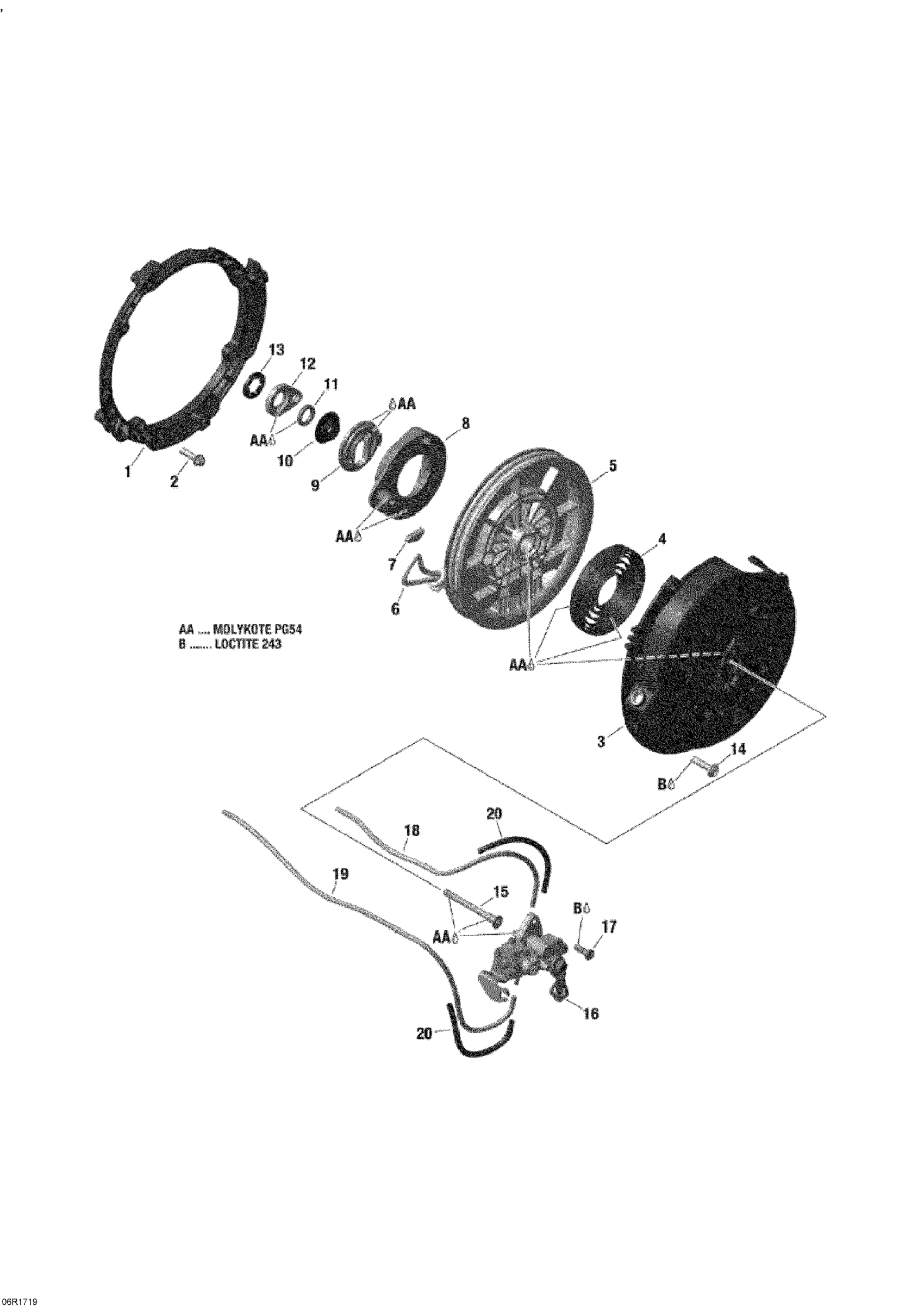

Ski-Doo TUNDRA - 2-STROKE - WT Europe, 2017 Rewind Starter and Oil Pump Diagram

Description

Price

Flange Connector

420810955

$102.21

Torx Flange Screw M6 X 20

420440207

$2.91

Rewing Starter Ass'y | Includes 3a to 13

420890175

$176.84

Not Available As Spare Part - Friction Washer

Unavailable

Rewind Spring

420939115

$29.07

Rope Sheave

420852480

$65.64

Was 412500100 Rope-Starter

219704403

$9.85

Key Clamp

420852070

$4.01

Pawl

420852296

$18.63

Pawl Lock | Includes no. 8-9

420852640

$5.34

Stage Sleeve

420847926

$14.10

O-Ring

420250400

$5.06

Lock Ring

420852520

$8.09

Locking Element

420845560

$1.97

Plastite Screw

420940431

$6.07

Oil Pump Shaft

420820090

$17.88

Oil Pump

420892291

$338.78

Screw

420841971

$2.82

Oil Hose 1500Mm Long

219704404

$15.64

Oil Hose 1500Mm Long

219704404

$15.64

Isolation Line

420960728

$4.15
