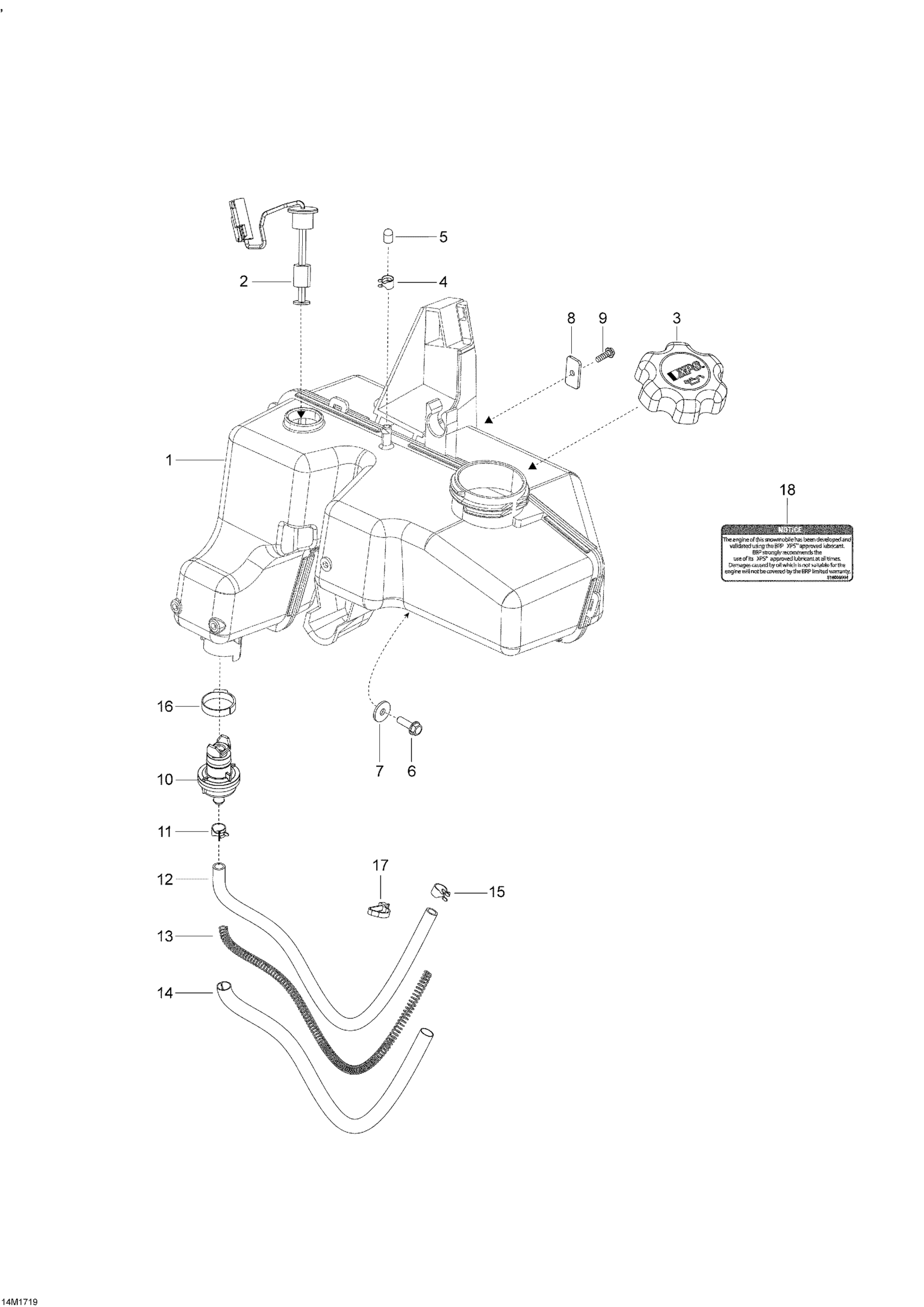

Ski-Doo TUNDRA - 2-STROKE - WT Europe, 2017 Oil System Diagram

Description

Price

Oil Tank

519000341

$231.51

Level Sensor

515176978

$57.66

Cap

519000273

$25.35

Oetiker Gear Clamp

293650043

$2.70

Cap

519000216

$6.86

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Flat Washer

224061201

$1.11

Bracket

519000179

$8.57

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

Oil Filter

519000242

$13.83

Spring Clamp

414415200

$0.83

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

Spring

519000196

$8.68

Tubing 10 MM 1000MM Long

219704407

$2.20

Spring Clamp

414420700

$0.68

Crimp Clamp

293650099

$3.55

Tie-Rap 180 mm

414115200

$0.09

WARNING DECAL - Call your local BRP dealership

516006904

Unavailable
