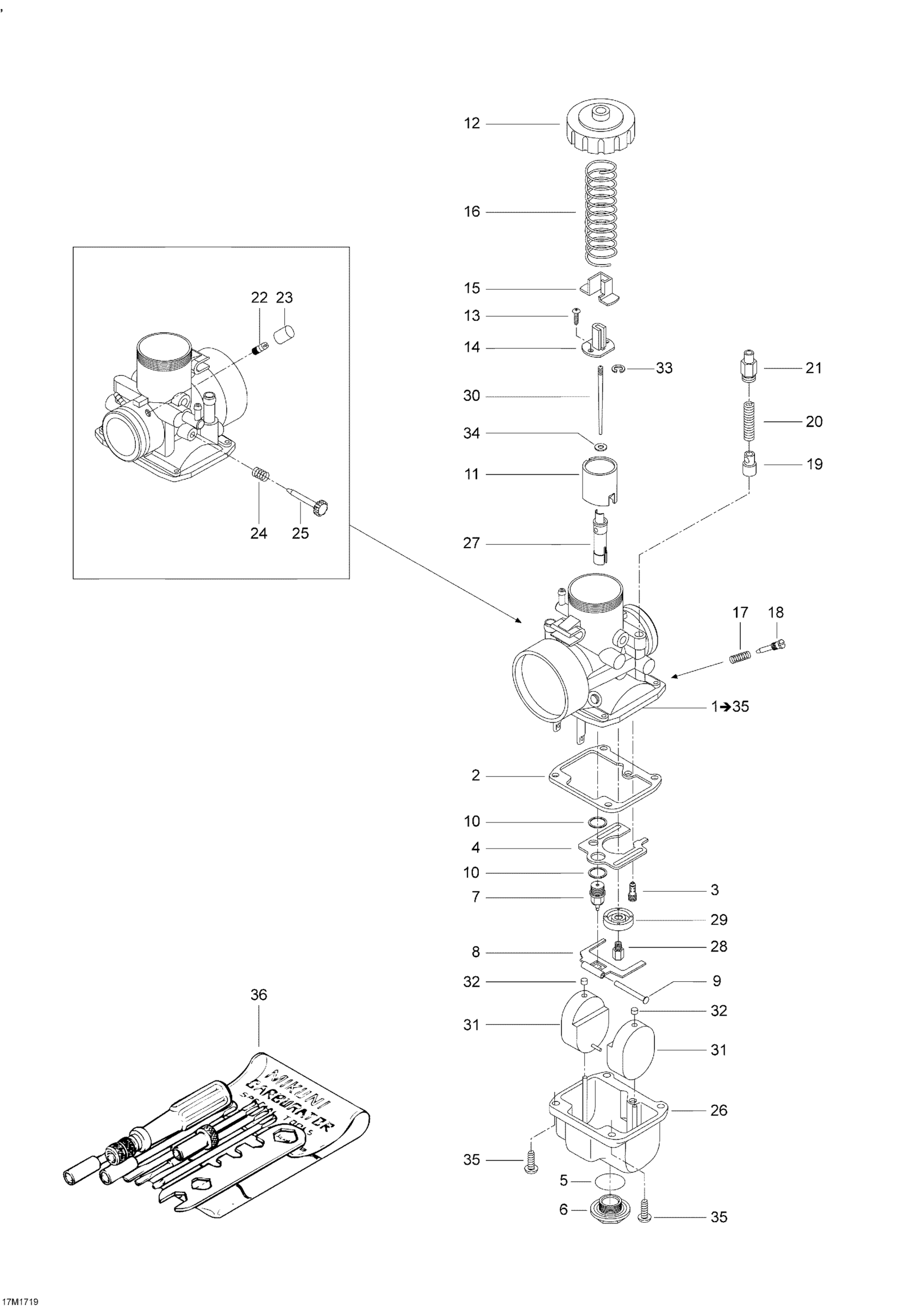

Ski-Doo TUNDRA - 2-STROKE - WT Europe, 2017 Carburetor Diagram

#

Description
Price

1

Carburetor VM30-219, PTO

403138814

$290.27

1

Carburetor VM30-218, MAG

403138813

$322.49

2

Gasket | Includes 1900a to 1900am

404104200

$6.49

3

Pilot Jet 35

404102700

$5.29

4

Not Available As Spare Part - Friction Washer

Unavailable

5

O-Ring

404107300

$7.90

6

Drain Plug Screw

404107400

$23.85

7

Needle Valve 1.2

404147500

$43.25

8

Float Lever

404107600

$23.85

9

Lever Pin

404103300

$6.36

10

Seat Washer

404101600

$3.21

11

Piston Valve 2.5

404128400

$124.60

12

Cover

404103700

$32.06

13

Screw With Washer

404121300

$4.24

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Cover

404122100

$17.88

16

Spring

404154800

$24.60

17

Spring

404101800

$4.36

18

Air Screw

404102300

$14.46

19

Plunger Ass'y

404162130

$30.57

19

Plunger Ass'y

404162130

$30.57

20

Spring

404162131

$14.52

20

Spring

404162131

$14.52

21

Guide Holder

404162132

$35.79

21

Guide Holder

404162138

$38.78

22

Nipple

404153400

$11.16

23

Cap

404156600

$15.64

24

Spring

404101700

$4.24

25

Idle Speed Screw

404109700

$17.88

26

FLOAT BODY - Call your local BRP dealership

404162133

Unavailable

26

FLOAT BODY - Call your local BRP dealership

404162133

Unavailable

27

Needle Jet

404162124

$41.76

28

Main Jet MJ 200

404112300

$5.29

28

Main Jet 190

404119000

$5.29

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Needle, J8-6BFY46

404162113

$32.81

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Cap

404105800

$6.49

33

E-Ring

404152400

$6.36

34

Packing

404117000

$3.31

35

Screw With Lock Washer

404102000

$3.19

36

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
