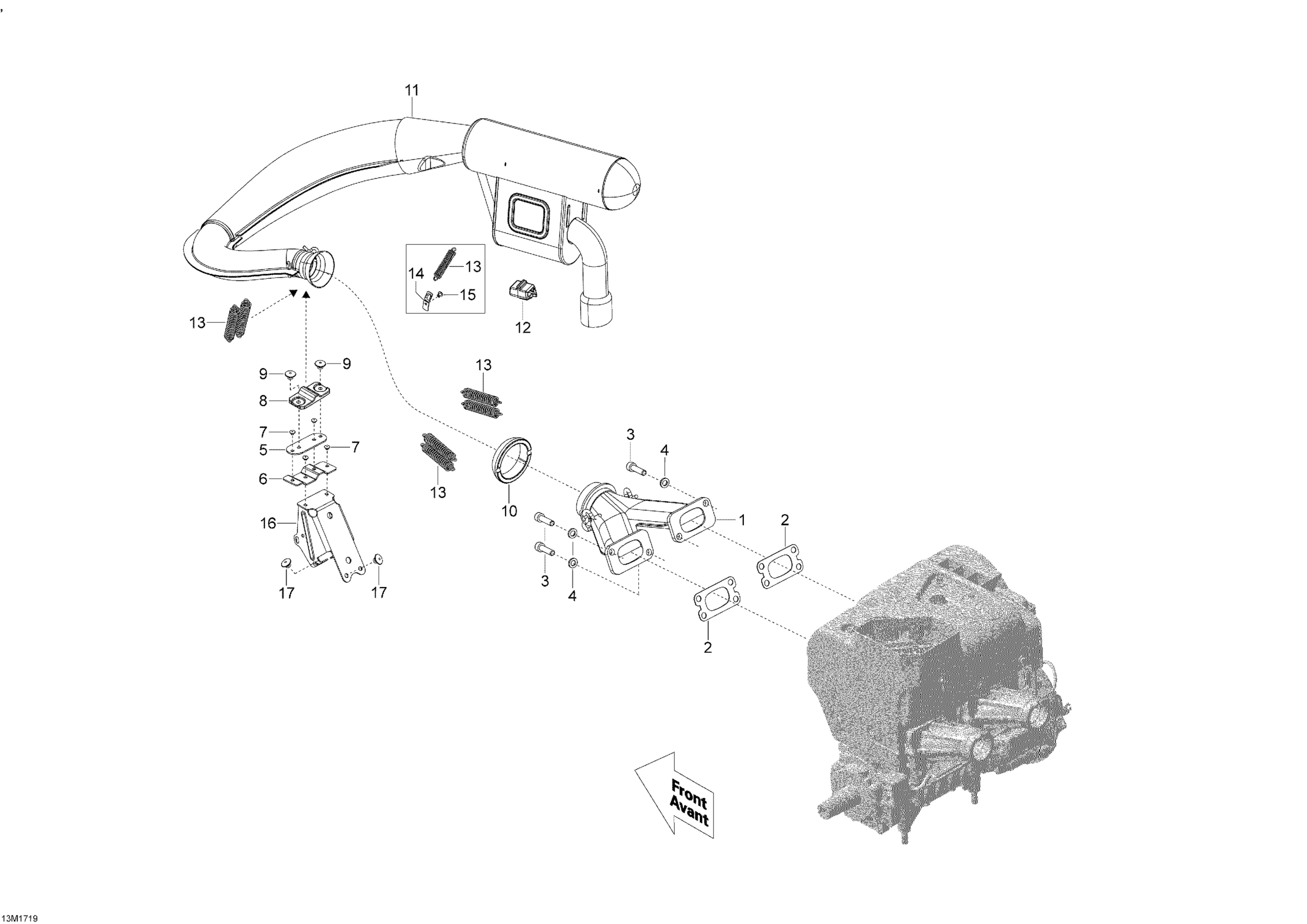

Ski-Doo TUNDRA - 2-STROKE - WT Europe, 2017 Exhaust System Diagram

#

Description

Price

1

Exhaust Manifold

420673065

$319.20

2

Gasket 1.0 mm

420831849

$7.92

3

Socket Head Screw M8 X 30

205083044

$0.92

4

Washer

250200111

$1.74

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Bumper

514054617

$14.65

9

Pop Rivet 3/16"

293150103

$0.54

10

Exhaust Gasket

514053644

$25.35

11

Calibrated Tube Ass'y

514055126

Unavailable

12

Upper Stopper

514054606

$14.92

13

Spring

415107100

$6.20

14

Spring Bracket

514054522

$6.28

15

Pop Rivet 3/16"

390402200

$0.26

16

Exhaust Muffler Support

514054767

$18.43

17

Hemlock Rivet, 6.5 mm

293150096

$3.17
