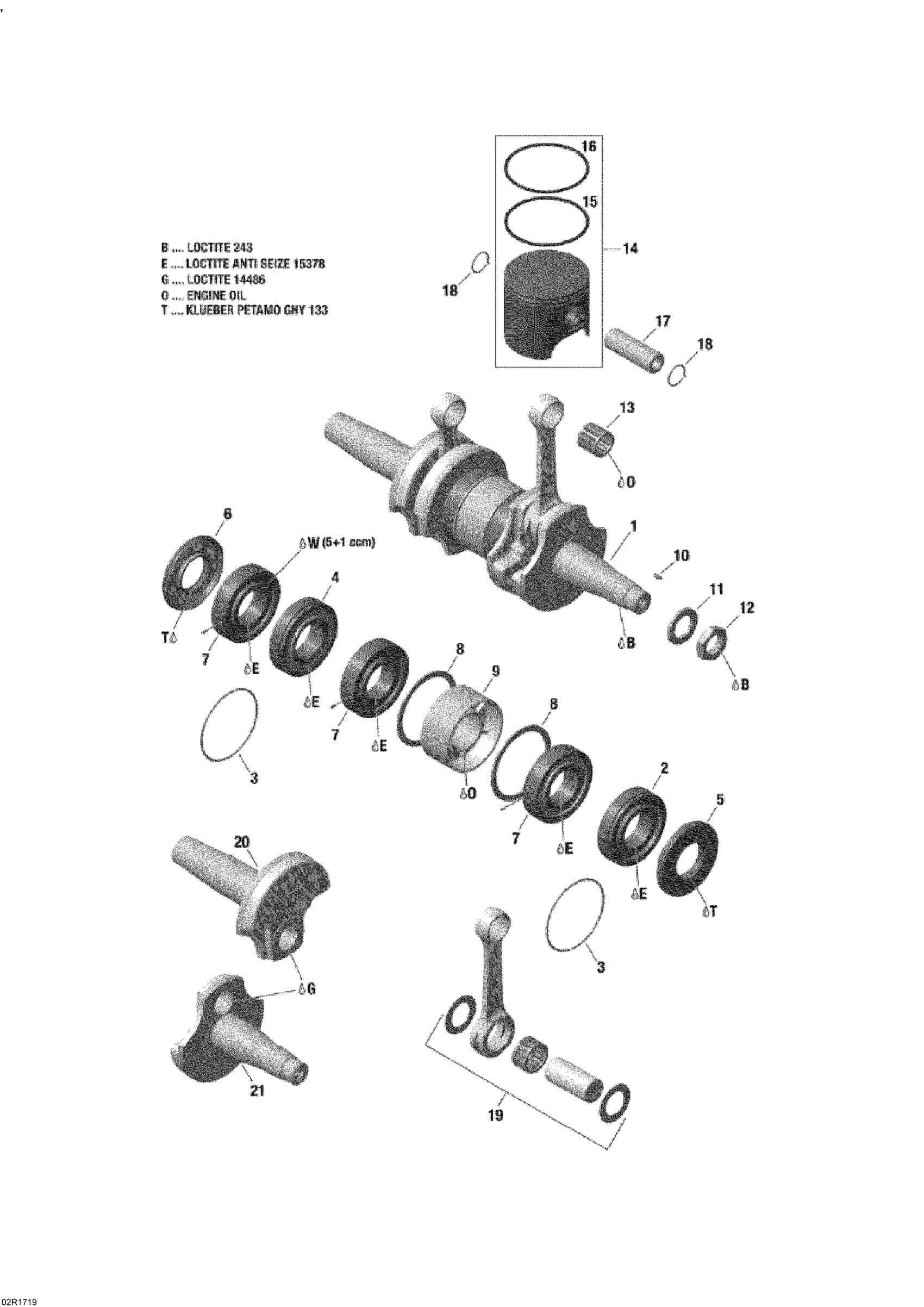

Ski-Doo TUNDRA - 2-STROKE - WT Europe, 2017 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft | Includes 1 to 8

420686042

$809.99

1

REBUILT - CRANKSHAFT 552

421000673

Unavailable

2

Ball Bearing

420832571

$76.12

3

O-Ring, 64 mm X 2 mm

293300022

$10.58

4

Ball Bearing

420832632

$100.74

5

Oil Seal This part replaces 290831952.

420831952

$14.27

6

Oil Seal

420831955

$22.72

7

Ball Bearing

420832573

$35.72

8

Retaining Disk

420927710

$7.23

9

Labyrinth Sleeve

420850149

$34.58

10

Woodruff Key

420246055

$1.99

11

Lock Washer, 22 mm

420945759

$1.55

12

Hex. Nut, M22 X 1.5

420842239

$14.27

13

Needle Bearing

420832445

$26.12

14

Piston Ass'y 75.86 mm, Standard | Includes 14 to 16

420889050

$174.58

14

Piston Ass'y 76.11 mm, 1st Oversize | Includes 14 to 16

420889051

$174.58

14

Piston Assy 76.36 mm, 2nd Oversize | Includes 14 to 16

420889052

$174.58

15

Rectangular Ring, Standard

420815300

$25.99

15

Rectangular Ring, 1st

420815301

$25.99

15

Rectangular Ring, 2nd

420815302

$25.99

16

Semi-Trapez Ring, Standard

420815155

$52.99

16

Semi-Trapez Ring, 1st

420815156

$52.99

16

Semi-Trapez Ring, 2nd

420815157

$51.99

17

Piston Pin

420916407

$26.89

18

Piston Circlip

420845106

$3.52

19

Rod Repair Kit

420889068

$319.99

20

CRANKSHAFT PTO SIDE - Call your local BRP dealership

420819181

Unavailable

21

Half Crankshaft (MAG)

420819213

Unavailable
