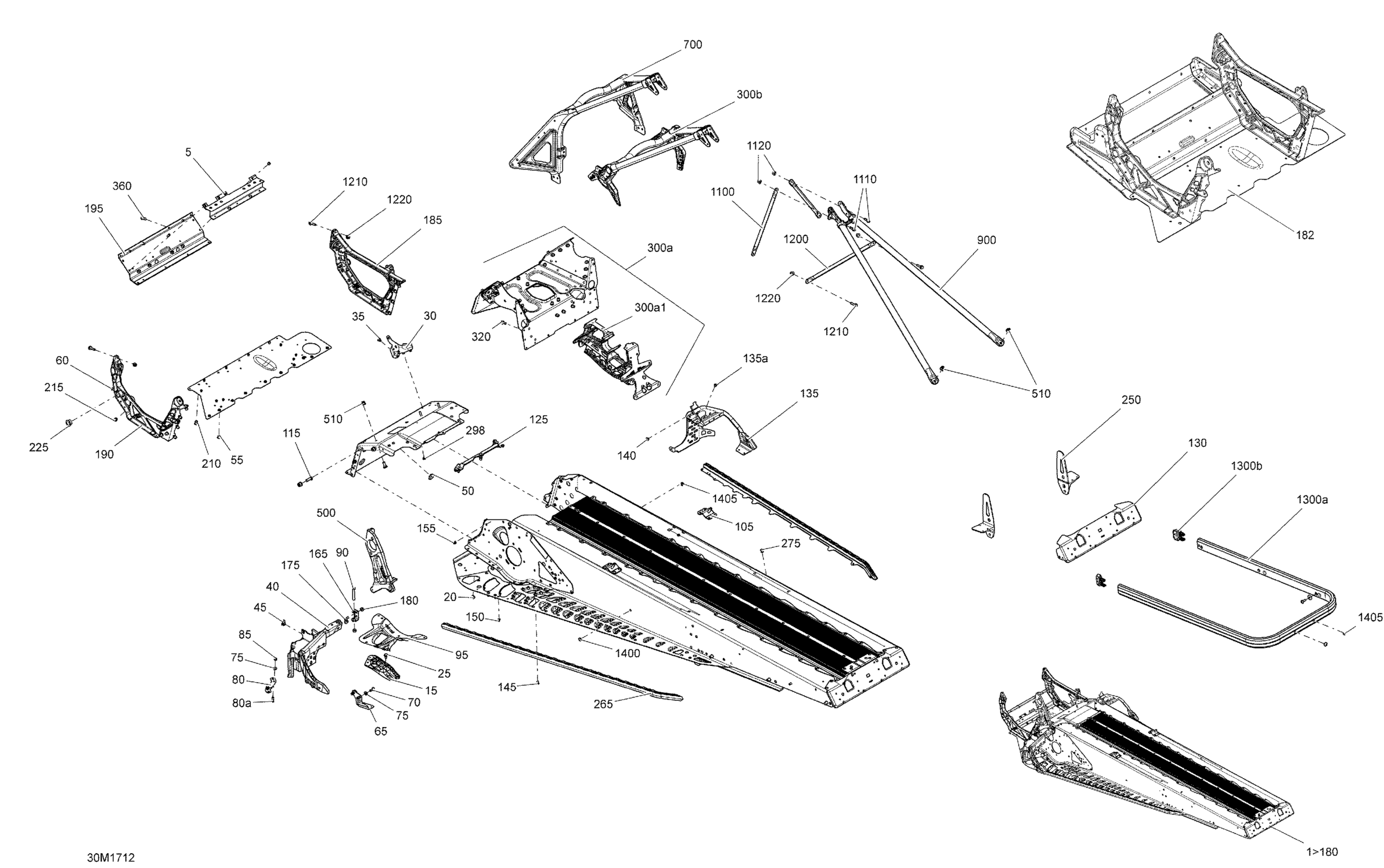

Ski-Doo TUNDRA - 2-STROKE - LT-SPORT, 2017 Frame - All Models Diagram

#

Description
Price

1>180

FRAME TUNDRA 137 - Call your local BRP dealership | Sport

415130258

Unavailable

1>180

FRAME TUNDRA LT - Call your local BRP dealership | LT

415130259

Unavailable

5

ENGINE SUPPORT - Call your local BRP dealership

518326120

Unavailable

15

RH Deflector, Black Polypropylene

518325782

$11.77

15

LH Deflector, Black Polypropylene

518325783

$11.77

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

25

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

30

RH Engine Support

518325559

$18.43

35

Hemlock Rivet, 6.5 mm

293150096

$3.17

40

LH Stirup

518326820

$36.89

45

Panel Nut M5 X 0.8

250000958

$3.48

50

Black, Plug

293730052

$6.37

55

Hemlock Rivet, 6.4 mm

293150174

$6.43

60

Monobolt Rivet, 4.8 mm

293150191

$0.95

65

Support

518326960

$9.71

70

Tork Screw M6 X 18

250000536

$2.06

75

Flat Washer

250200039

$0.72

80

Attach | Includes 10n to 10p

518326986

$9.71

80a

Clinch Stud M6 X 20

250300027

$1.92

85

Elastic Stop Nut M6

232561414

$1.55

90

Torx Screw M8 X 55

250000535

$2.63

95

RH Reinforcement

518324874

$25.35

95

LH Reinforcement

518324875

$25.35

105

RH Rear Base

518325973

$18.43

105

LH Rear Base | Includes 10v to 10x

518325974

$18.43

115

Clinch Stud

250300038

$4.00

125

Seal

518326656

$8.43

130

Rear Cap

518327105

$20.74

135

RH Stirup | Includes 10aa to 10ab

518328938

$166.12

135a

Avex Rivet

390909200

$0.29

140

Full Moon Dart 5 mm

293730042

$2.12

145

Avex Rivet

390909100

$0.29

150

Stavex Rivet

293150144

$0.77

155

Henrob Rivet

293150146

$1.92

165

U-Attach

518326961

$8.45

175

Tork Screw M6 X 16

250000534

$1.74

180

Hex. Flange Nut M6

233061414

$1.34

182

Module E Tundra | Includes 10av to 10bm

518326926

$477.66

185

RH Member

518326795

$259.97

190

LH Member

518325558

$230.74

195

Front Member | Includes 10as to 10at

518325818

$54.58

210

Hemlock Rivet, 6.5 mm

293150119

$4.00

215

Monobolt Rivet, 4.8 mm

293150191

$0.95

230

RH Front Member

518325949

$18.43

235

LH Front Member

518325950

$17.66

240

Front Bottom Plate

518325951

$29.97

250

RH Bracket | Sport

518328787

$75.35

250

RH Slide Bracket

518325955

Unavailable

250

LH Bracket | Sport

518328788

$73.82

250

LH Slide Bracket

518325956

$46.12

265

RH ROLLER - Call your local BRP dealership

518325377

Unavailable

265

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

265

LH Roller

518325378

$76.99

265

LH Roller | Includes 10bd to 10be

518325160

$78.43

275

Ornit Rivet 6,5 X 14.5

293150266

$1.94

298

Pop Rivet 3/16"

390402400

$0.25

500

Pulley Support

518328346

$117.66

510

Hex. Flange Elastic Nut M8

233281414

$1.14

700

Front Member, S Module

518326557

$336.89

900

Rear Member

518326559

$244.58

1100

Upper Lateral Column Support

518325114

$20.74

1110

Hex. Flange Screw M6 X 20

207662044

$1.66

1120

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1200

Center Column Support

518325115

$20.74

1210

Hex. Flange Screw M6 X 25

207662544

$0.53

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1300a

Clear Rear Bumper | Sport

518325577

$109.97

1300a

Clear Rear Bumper

518325579

$109.97

1300b

Full Moon RH Cap

520000711

$8.60

1300b

Full Moon LH Cap

520000712

$8.60

1400

Full Moon Dart 8 mm

293730041

$2.12

1405

Full Moon Dart 10 mm

293730059

$4.42
