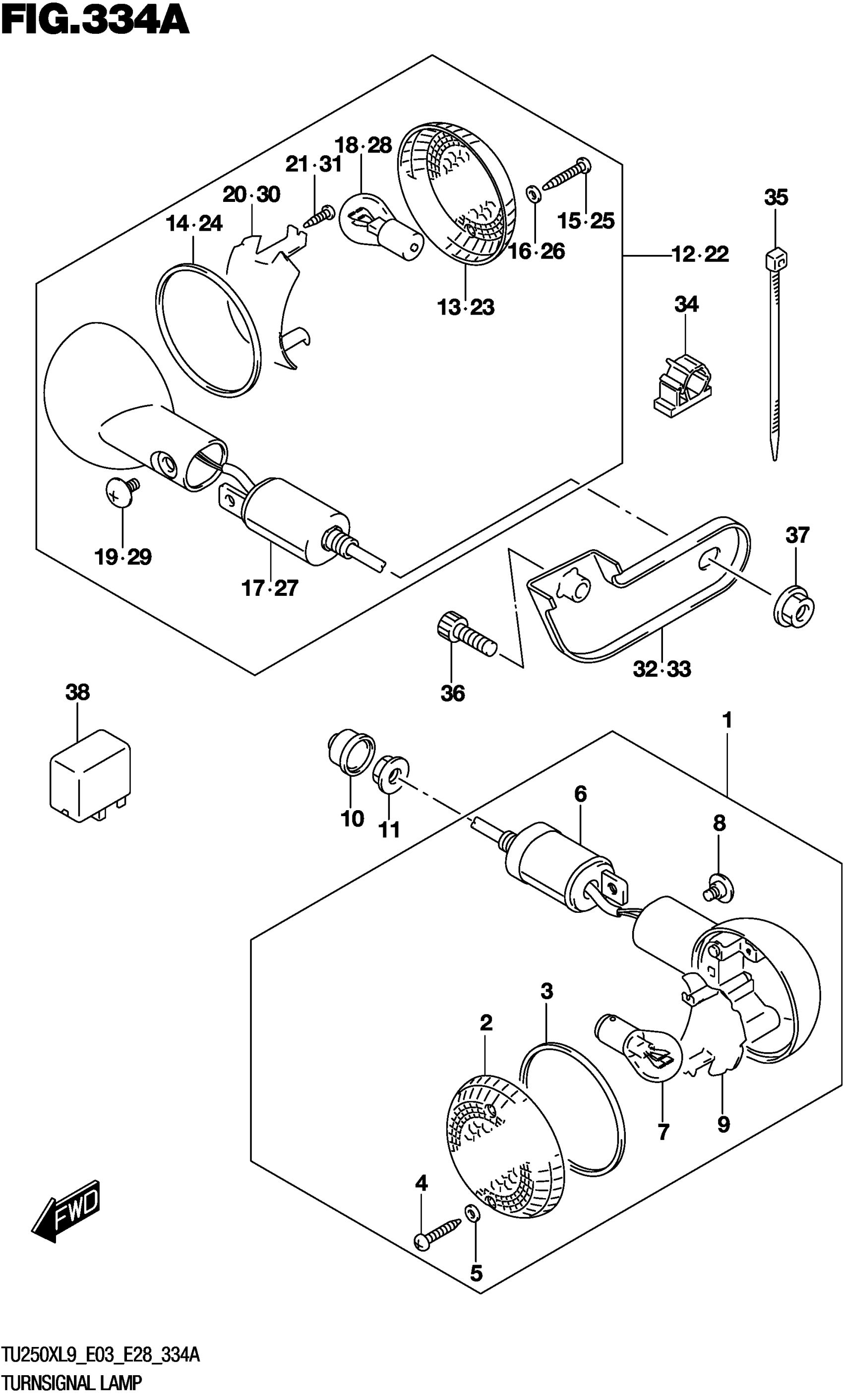

Suzuki TU250XL9 (2019) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY

35601-33D30

$142.63

2

.LENS

35612-38A01

$13.81

3

.GASKET

35613-38A00

$9.74

4

.SCREW

03211-0425B

$2.70

5

.GASKET

35627-43010

$2.28

6

.STAY

35619-45C10

$57.66

7

.BULB (12V21W)

09471-12045

$3.27

8

.SCREW

35623-38A01

$5.05

9

.REFLECTOR

35624-38A20

$35.80

10

COVER

35698-01480

$5.10

11

NUT

08316-1010A

$2.70

12

LAMP ASSY

35603-33D40

$330.66

13

.LENS

35652-38A21

$13.67

14

.GASKET

35613-38A00

$9.74

15

.SCREW

03211-0425A

Unavailable

16

.GASKET

35627-43010

$2.28

17

.STAY

35619-45C10

$57.66

18

.BULB (12V21W)

09471-12045

$3.27

19

.SCREW

35623-38A01

$5.05

20

.REFLECTOR

35654-38A20

Unavailable

21

.SCREW

03211-0412A

$2.23

22

LAMP ASSY

35604-33D40

$330.66

23

.LENS

35652-38A21

$13.67

24

.GASKET

35613-38A00

$9.74

25

.SCREW

03211-0425A

Unavailable

26

.GASKET

35627-43010

$2.28

27

.STAY

35619-45C10

$57.66

28

.BULB (12V21W)

09471-12045

$3.27

29

.SCREW

35623-38A01

$5.05

30

.REFLECTOR

35654-38A20

Unavailable

31

.SCREW

03211-0412A

$2.23

32

BRACKET

35621-26G20

$31.28

33

BRACKET

35641-26G20

$31.28

34

CLAMP

09403-04310

$5.35

35

CLAMP (L:145)

09407-14407

$3.57

36

BOLT

01550-0625B

$2.42

37

NUT

08316-1010A

$2.70

38

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
