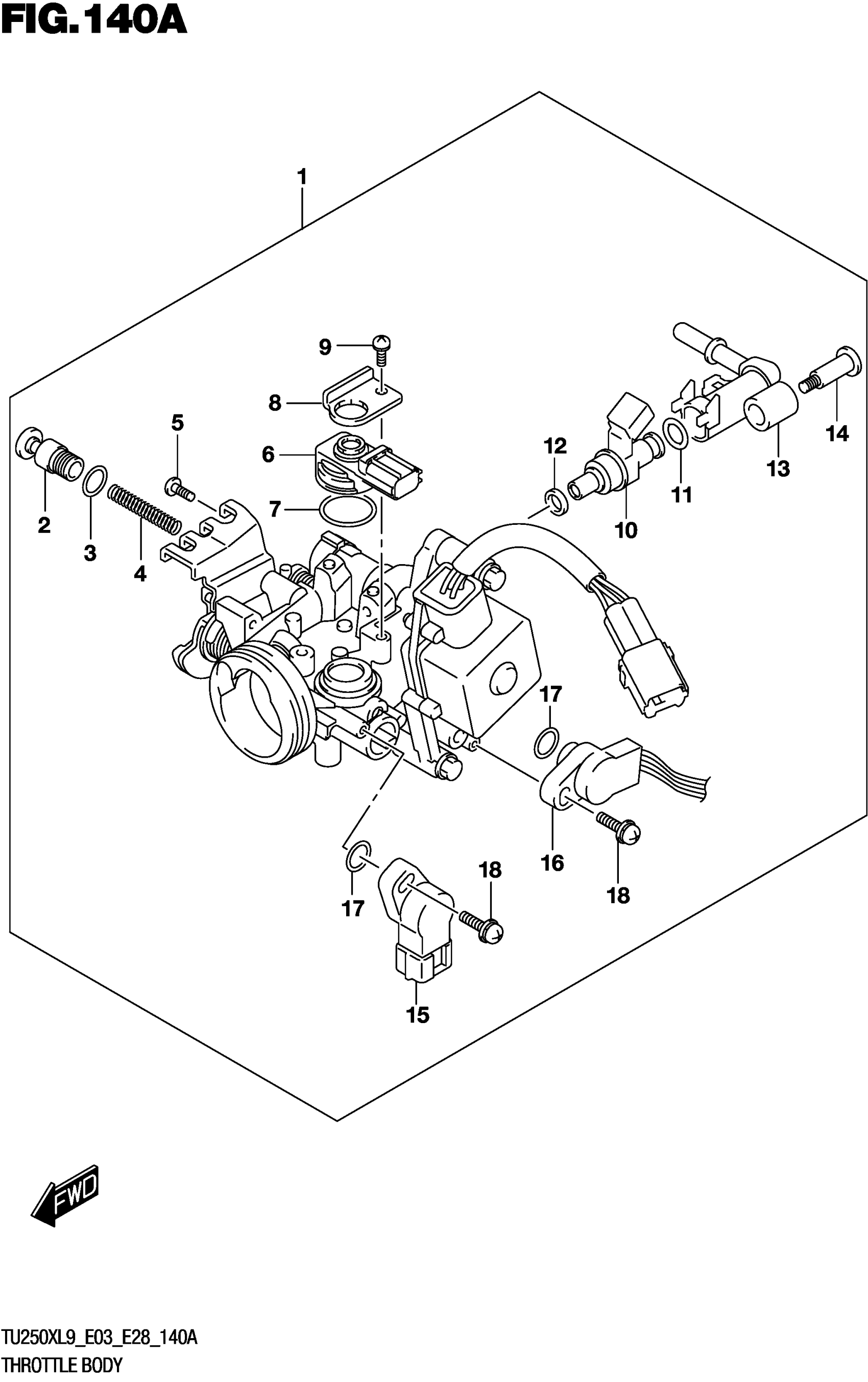

Suzuki TU250XL9 (2019) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROT This part replaces 13400-26GA3.

13400-26GA4

$689.65

2

.SCREW

13279-26GA0

Unavailable

3

.O-RING

13295-14G00

$3.17

4

.SPRING

13271-26GA0

Unavailable

5

.SCREW

13601-14G00

$3.42

6

.SENSOR,MAP

15620-05H00

$304.30

7

.O RING This part replaces 15621-05H00.

15621-05H01

$10.22

8

.PLATE,MAP SENSOR

15622-33H00

Unavailable

9

.SCREW

02112-14087

$2.58

10

.INJECTOR ASSY

15710-26GA0

$245.33

11

.O-RING

15721-21H00

$8.31

12

.RING,SEAL

15722-21H00

$10.30

13

.PIPE

13471-26GA0

$40.02

14

.SCREW

13601-35F00

$6.86

15

.SENSOR

13580-33H01

$288.30

16

.SENSOR ASSY

13580-40F31

$197.79

17

.O-RING

13575-40F00

$3.85

18

.SCREW

13605-40F00

$3.50
