2019 Suzuki TU250XL9 Chain Case Diagram

← All diagrams

Find the part on the Chain Case diagram for your 2019 Suzuki TU250XL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

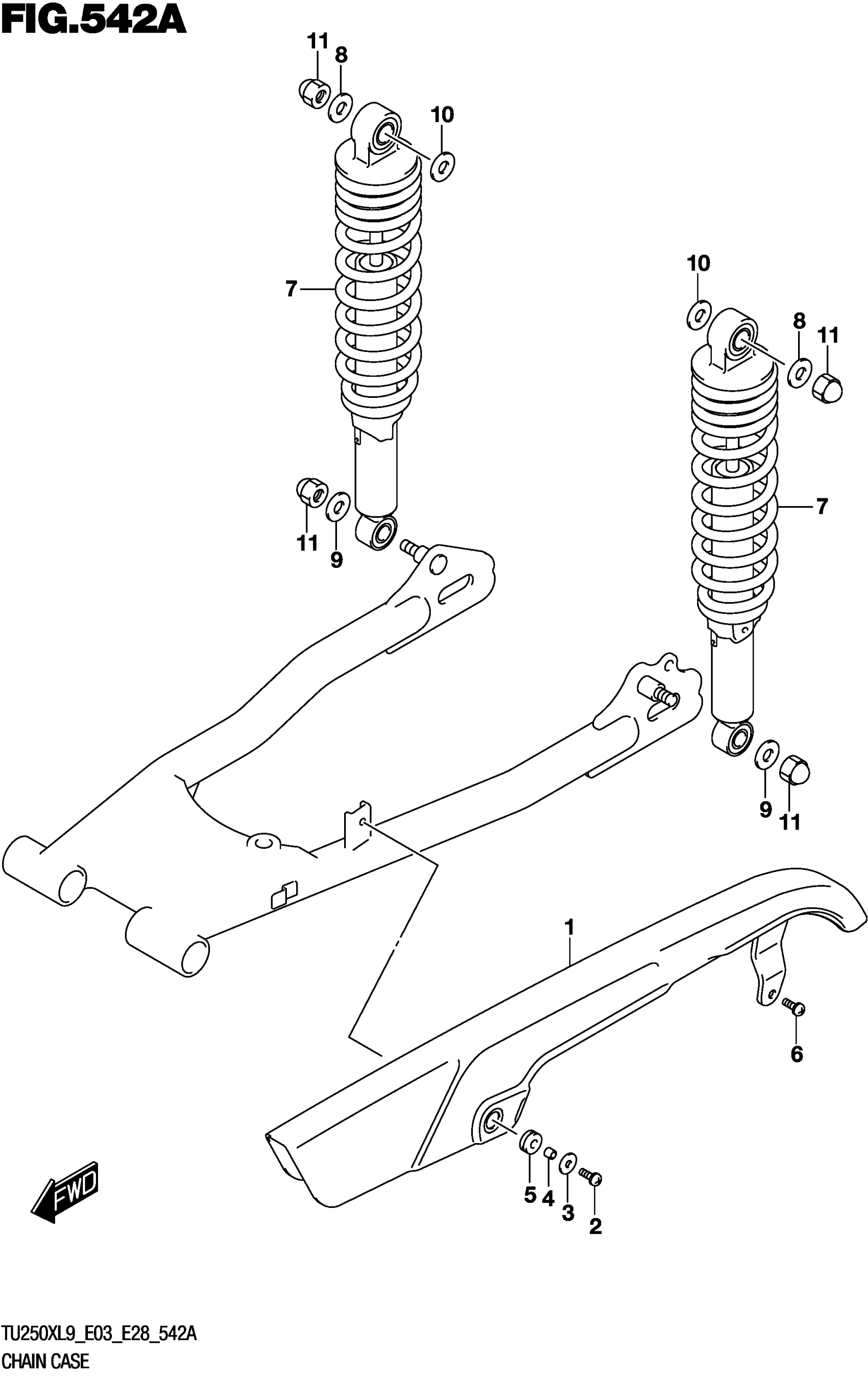

2019 Suzuki TU250XL9 Chain Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE

61310-38300

1
Out of stock

2

SCREW

02112-3616B

1

$2.73

In stock

3

WASHER (6.5X20X1.2)

09160-06077

1
Out of stock

4

WASHER (8.5X20X8)

09169-06065

1
Out of stock

5

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

1
Out of stock

6

SCREW

02112-3616B

1

$2.73

In stock

7

ABSORBER ASSY

62100-26G00

2
Out of stock

8

WASHER (10.5X24X2.3)

09160-10093

2
Out of stock

9

WASHER (10.5X24X2.3)

09160-10093

2
Out of stock

10

WASHER (12.5X24X3.2)

09160-12082

2
Out of stock

11

NUT

08313-10107

4
Out of stock
