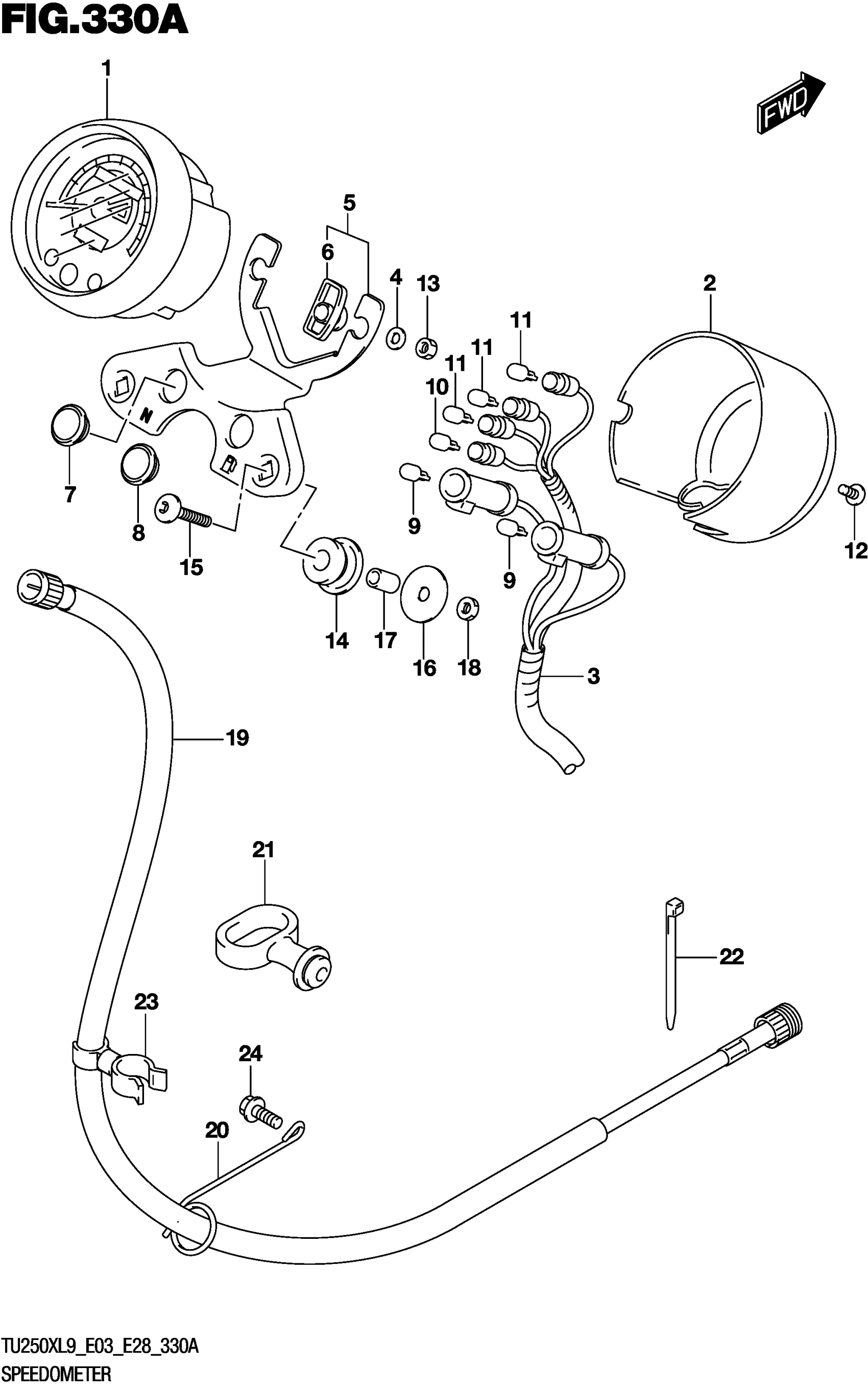

Suzuki TU250XL9 (2019) SPEEDOMETER (TU250XL9 E03) Diagram

#

Description
Price

1

SPEEDOMETER

34110-26G50

$498.93

2

COVER

34111-26G01

$55.22

3

CORD ASSY

34170-26G30

Unavailable

4

WASHER (5.2X16X1.0)

09160-05013

$1.49

5

BRACKET ASSY

34950-26G30

$130.35

6

CUSHION,DAMPER This part replaces 34191-25D00.

34191-25D01

$8.67

7

LENS (GREEN)

36321-13G00

$8.92

8

LENS (ORANGE)

36331-13GA0

Unavailable

9

.BULB (12V3.4W,T10)

09471-12028

$1.99

10

BULB (12V

09471-12103

$3.83

11

.BULB (12V1.7W)

09471-12108

$3.42

12

SCREW

03541-1412A

$2.13

13

.NUT

08310-00057

$1.84

14

CUSHION

34956-31001

$4.37

15

BOLT (6X30)

09107-06003

$3.03

16

WASHER (6.5X28X1.6)

09160-06136

$1.84

17

SPACER (6.5X10X15.7)

09180-06294

$3.35

18

NUT

08310-0006B

$2.34

19

CABLE ASSY

34910-26G01

$40.44

20

GUIDE

34938-37000

$3.73

21

GUIDE

58621-21204

$6.68

22

CLAMP (L:145)

09407-14407

$3.57

23

CLIP

09408-00056

$3.08

24

BOLT

01550-0612B

$2.39
