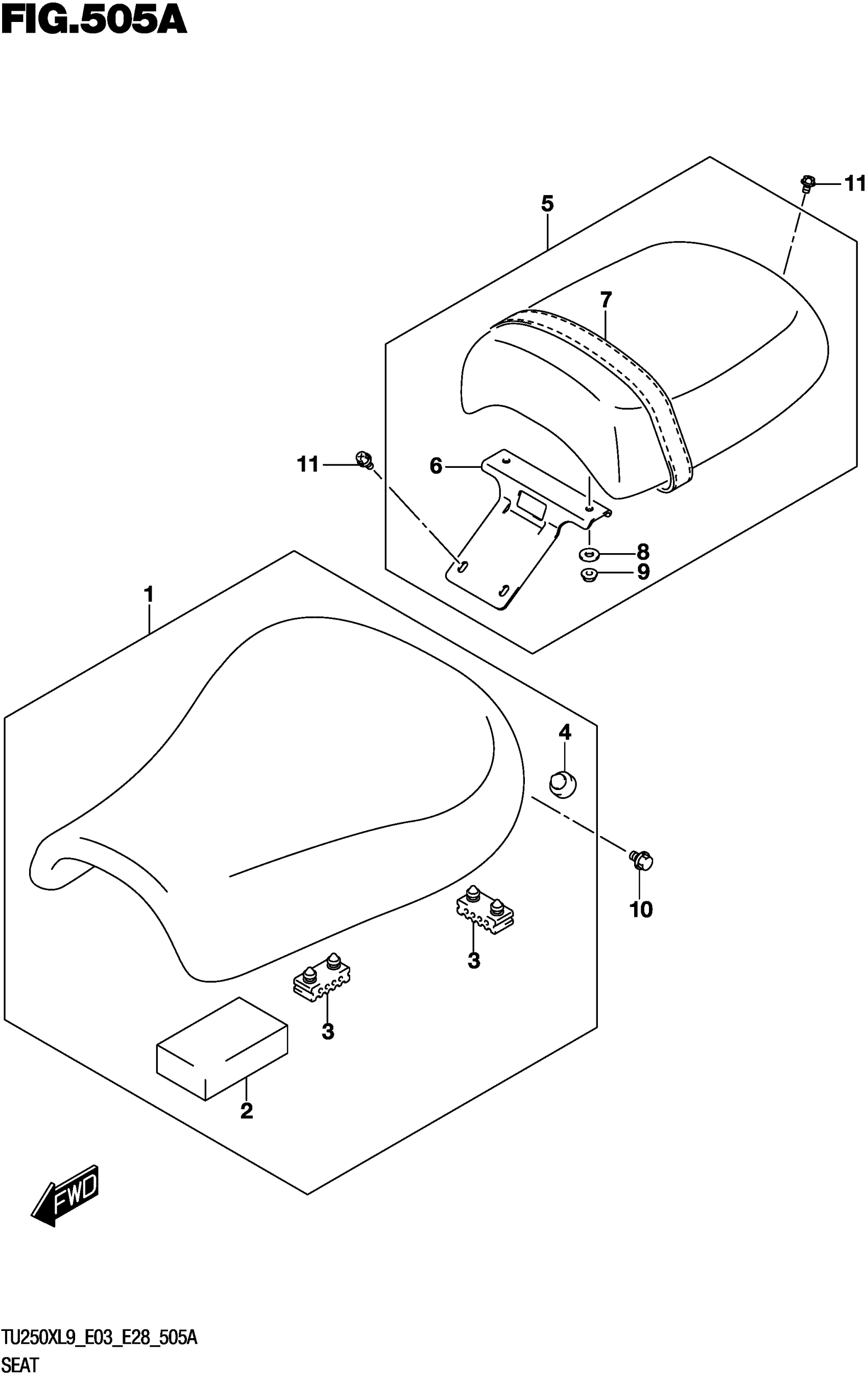

Suzuki TU250XL9 (2019) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-26G10-58P

$331.25

2

.CUSHION

45149-26G00

Unavailable

3

.CUSHION,SEAT (40X20X15)

45149-31300

$3.56

4

CUSHION | REAR

09321-10012

$2.92

5

SEAT ASSY

45300-26G00-9MG

$283.88

5

SEAT ASSY

45300-26G00-9MG

$283.88

6

.PLATE

45316-26G00

Unavailable

7

.BAND

45381-26G00

$12.65

8

WASHER (6.5X18X1.6)

09160-06084

$1.78

9

NUT

08316-1006B

$2.50

10

BOLT

01550-0812B

$2.73

11

BOLT

01550-0612B

$2.39
