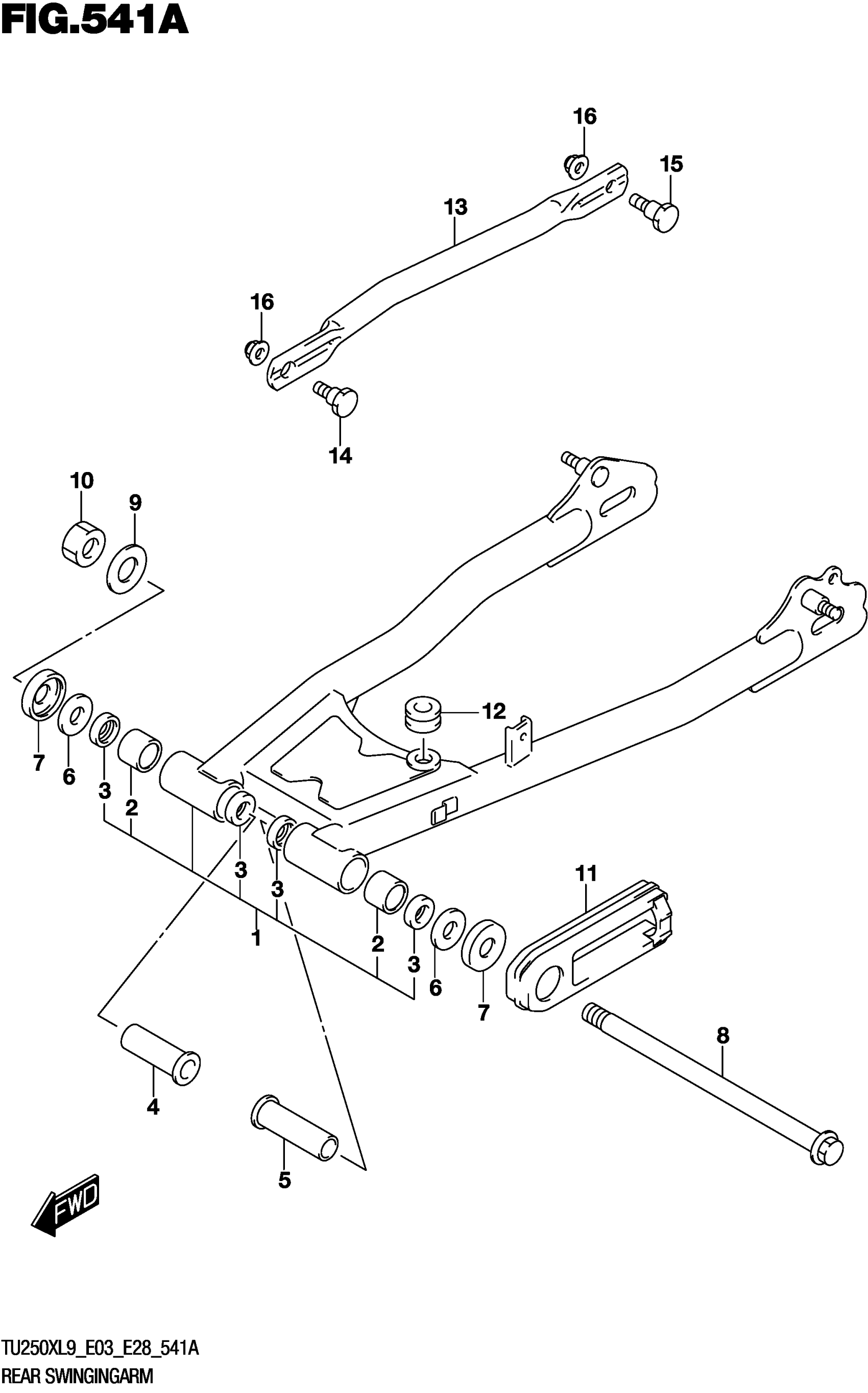

Suzuki TU250XL9 (2019) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY

61000-25D80-019

$417.53

2

.BUSHING, RR SWGARM PIVOT

61261-13700

$16.28

3

SEAL,OIL (20X27X5)

09283-20031

$5.24

4

SPACER

61251-38300

Unavailable

5

SPACER

61252-38300

Unavailable

6

WASHER

08211-15321

Unavailable

7

SEAL,DUST This part replaces 61262-38300.

61262-38301

$7.52

8

SHAFT

61211-38310

Unavailable

9

WASHER

08322-0114B

$2.70

10

NUT

08319-2114A

$3.96

11

BUFFER

61273-25D50

Unavailable

12

CUSHION

09320-08020

$3.40

13

TORQUELINK

64310-26G00

Unavailable

14

BOLT (8X21)

09111-08098

$6.05

15

BOLT (8X24)

09111-08067

$4.04

16

NUT

08319-3108A

$2.32
