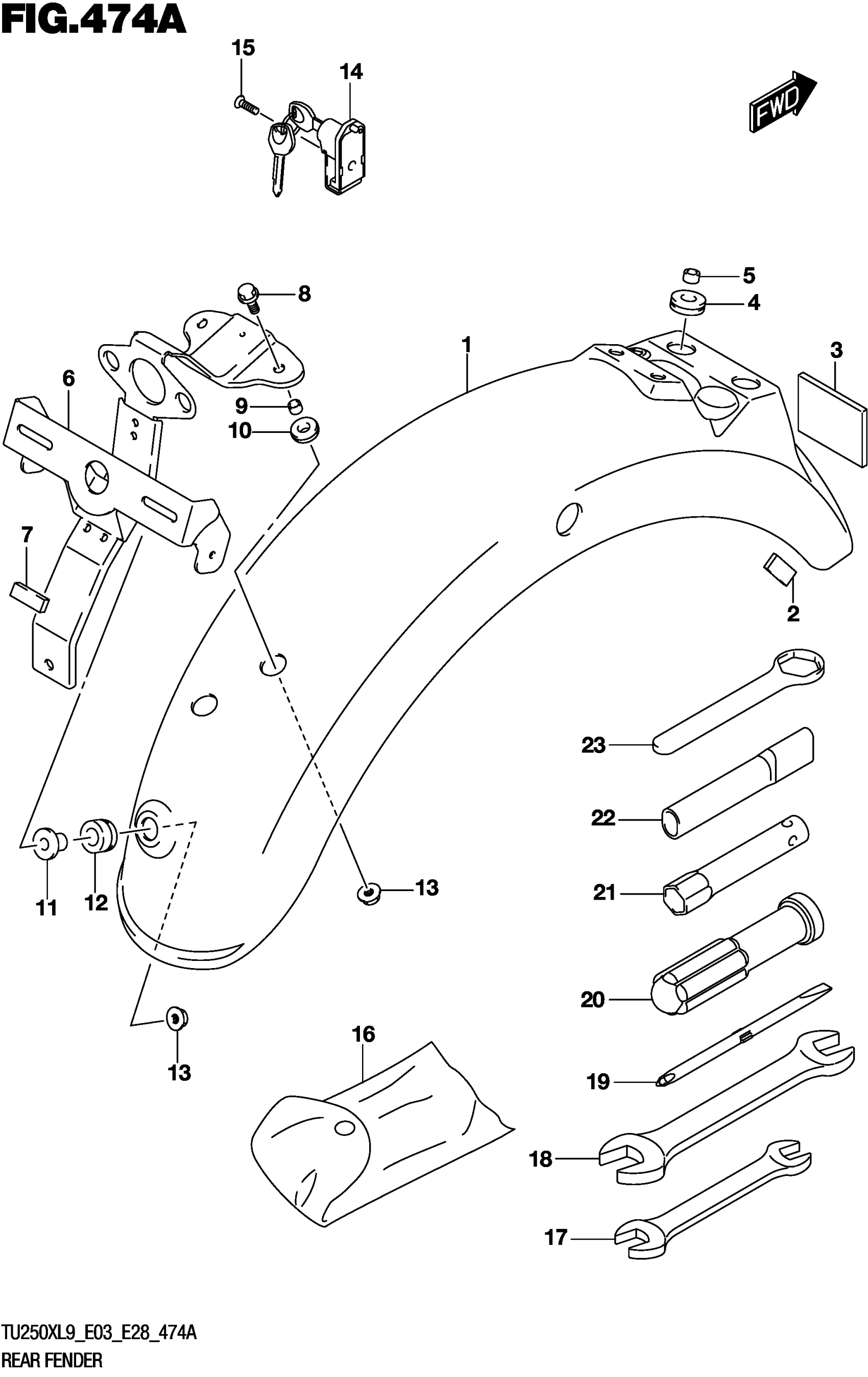

Suzuki TU250XL9 (2019) REAR FENDER Diagram

#

Description
Price

1

FENDER

63111-26G30-YVB

$318.95

2

.CUSHION

63191-26G00

Unavailable

3

CUSHION

63192-26G00

$9.75

4

CUSHION This part replaces 09320-13005.

09320-13025

$2.72

5

SPACER (8.5X14X9)

09180-08199

$2.12

6

BRACE

63210-26G10-291

$139.45

7

CUSHION (10X30X8)

63211-26G00

$9.75

8

BOLT

01550-0625B

$2.42

9

SPACER (6.5X10.5X15)

09180-06079

$2.42

10

CUSHION

09320-10053

Unavailable

11

SPACER (6.5X10X11.6)

09180-06319

$3.85

12

CUSHION

09320-10501

$6.23

13

NUT

08316-1006B

$2.50

14

LOCK SET

95700-42820

Unavailable

15

SCREW

02122-0620B

$1.93

16

BAG

09811-00272

$4.87

17

SPANNER,OPEN (10X12)

09813-00030

$5.75

18

SPANNER,OPEN (14X17)

09813-00031

Unavailable

19

DRIVER

09814-00015

$3.70

20

GRIP,DRIVER

09814-00016

$4.22

21

SPANNER

09816-00063

Unavailable

22

HANDLE

09817-00037

$5.52

23

RING SPANNER

09817-00038

Unavailable
