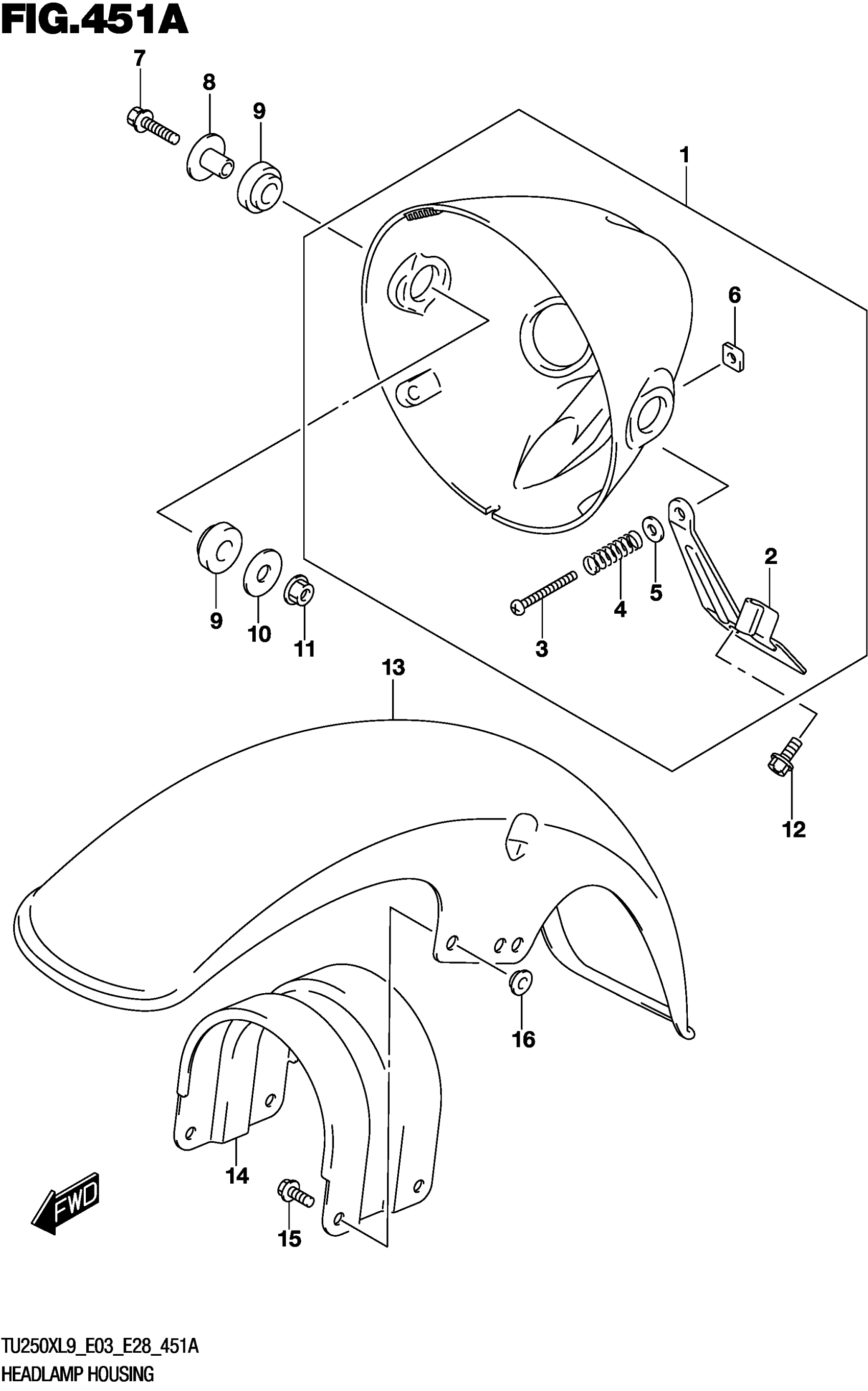

Suzuki TU250XL9 (2019) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING SET

51800-26G30-019

$119.77

2

.PLATE

51840-26G00

$44.07

3

.SCREW (5X45)

09125-05128

$2.73

4

.SPRING

51837-25D00

$5.10

5

WASHER

08322-0105B

$2.26

6

.NUT

51825-25D00

$4.10

7

BOLT

01244-08357

$3.99

8

SPACER (8.6X12X21.3)

09180-08217

$3.37

9

CUSHION This part replaces 09320-12065.

09320-12101

$2.98

10

WASHER (8.5X28X1.6)

09160-08157

$2.95

11

NUT

08316-1008B

$2.66

12

SCREW

02162-0616B

$2.03

13

FENDER

53111-26G10-YVB

$208.43

14

BRACE

53112-26G00

$29.25

15

BOLT

01560-0616B

$3.03

16

WASHER

09169-06071

$2.50
