2019 Suzuki TU250XL9 Handlebar Diagram

← All diagrams

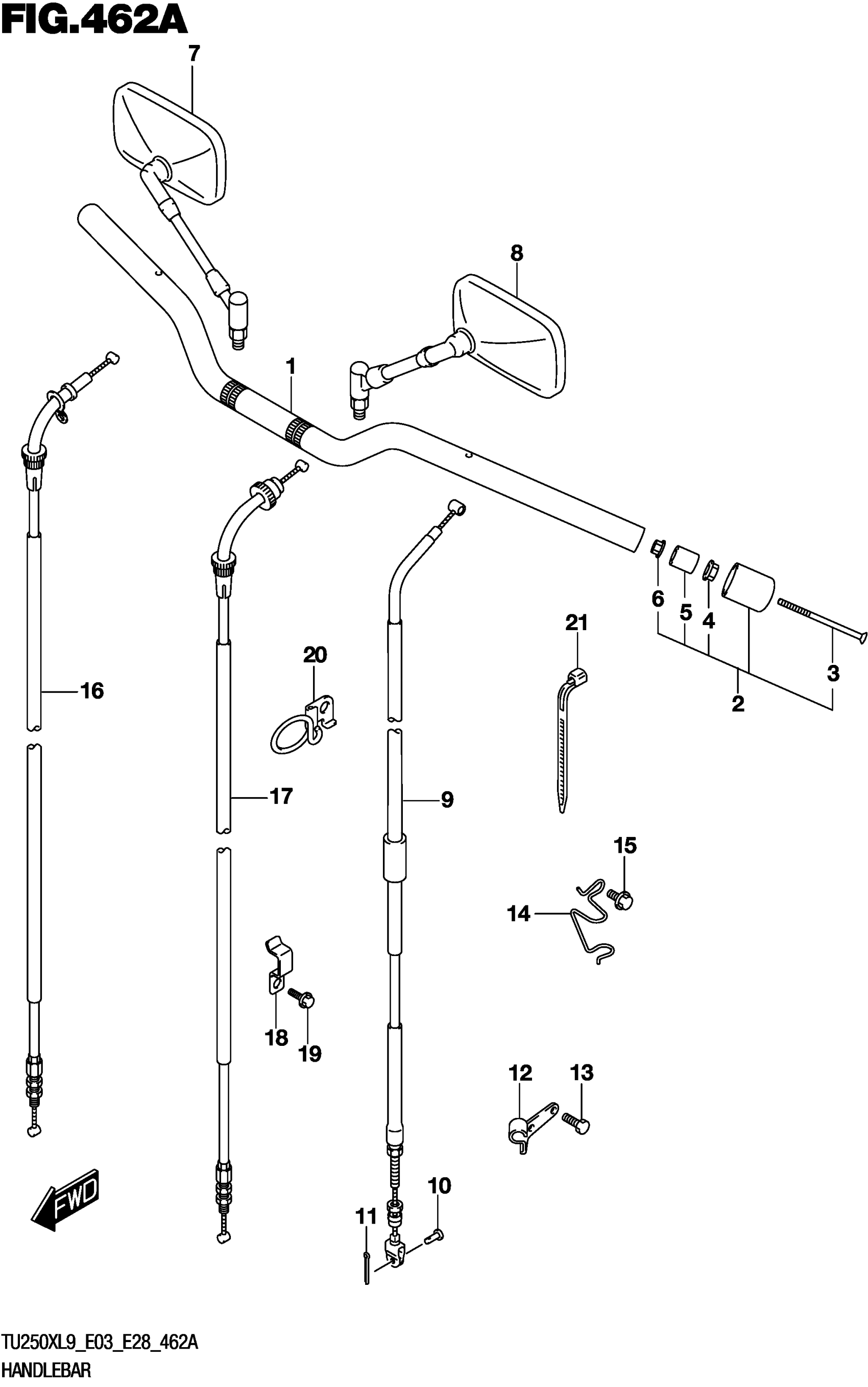

Find the part on the Handlebar diagram for your 2019 Suzuki TU250XL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki TU250XL9 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

56111-26G00

1
Out of stock

2

BALANCER SET

56270-26G00

2
Out of stock

3

.SCREW

02122-06757

2

$3.10

In stock

4

NUT

08316-1008B

2
Out of stock

5

.EXPANDER

56272-44500

2
Out of stock

6

.NUT

09159-06024

2
Out of stock

7

MIRROR ASSY

56500-39E40

1
Out of stock

8

MIRROR ASSY

56600-39E40

1
Out of stock

9

CABLE ASSY

58200-26G00

1
Out of stock

10

PIN (L:13)

09200-06004

1
Out of stock

11

PIN

04111-2015A

1
Out of stock

12

STOPPER

58634-38210

1
Out of stock

13

BOLT

01500-0616A

2
Out of stock

14

GUIDE

58623-26G00

1
Out of stock

15

BOLT

01550-0612A

1
Out of stock

16

CABLE ASSY

58300-26G20

1
Out of stock

17

CABLE ASSY

58300-26G30

1
Out of stock

18

CLAMP This part replaces 09403-10307.

09403-10328

1
Out of stock

19

BOLT

01550-0616B

1
Out of stock

20

GUIDE

58620-26G00

1
Out of stock

21

CLAMP (L:190)

09407-19401

1
Out of stock
