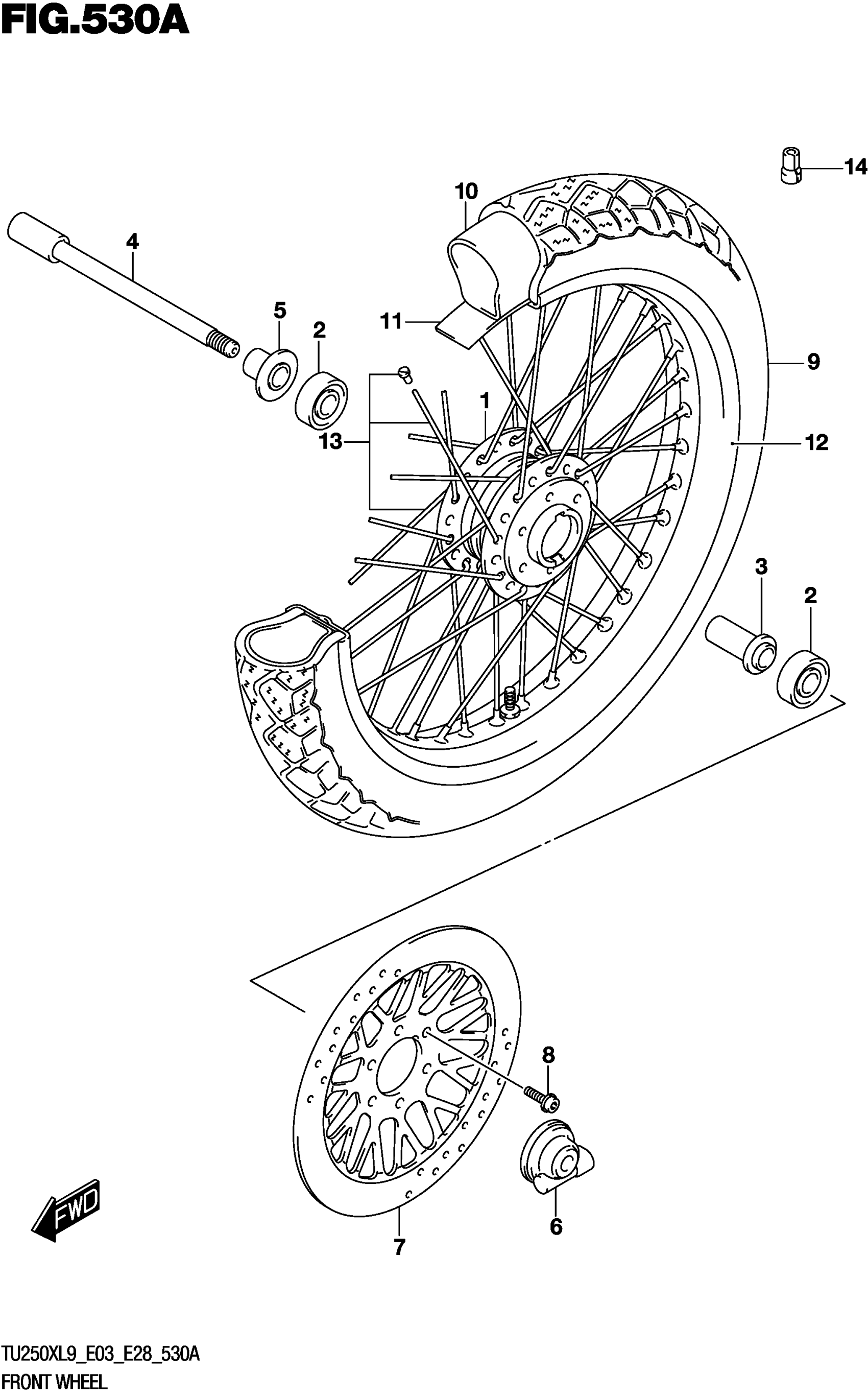

2019 Suzuki TU250XL9 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2019 Suzuki TU250XL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki TU250XL9 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB

54111-25D30

1
Out of stock

2

BEARING This part replaces 08123-63027.

08123-6302B

2
Out of stock

3

SPACER

54730-18400

1
Out of stock

4

AXLE

54711-45C01

1
Out of stock

5

SPACER

54740-18410

1
Out of stock

6

BOX ASSY,SPEEDO This part replaces 54600-37301.

54600-37302

1
Out of stock

7

DISC

59221-26G00

1
Out of stock

8

BOLT (8X30)

09106-08131

6
Out of stock

9

TIRE | C-6009

55110-26G10

1
Out of stock

9

TIRE | CHENG SHIN RUBBER

55110-26G10

1
Out of stock

10

TUBE

55200-26G10

1
Out of stock

11

PROTECTOR

55261-26G00

1
Out of stock

12

RIM

55311-25D00

1
Out of stock

13

SPOKE ASSY

55320-18420

1
Out of stock

14-1

BALANCER WHEEL (15G)

55411-26G00

1
Out of stock

14-2

BALANCER WHEEL (30G)

55413-41F00

1
Out of stock
