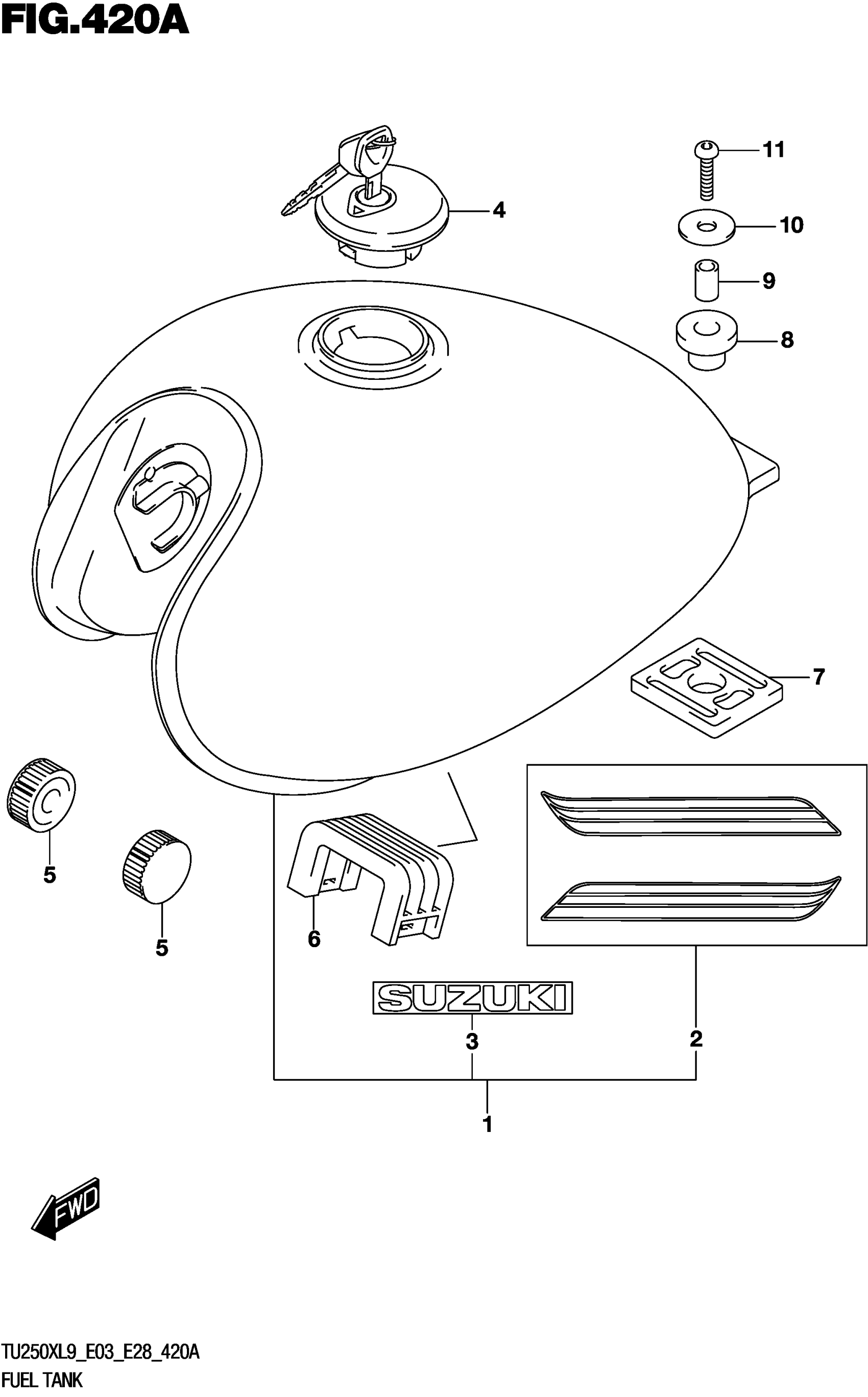

Suzuki TU250XL9 (2019) FUEL TANK Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (WHITE) | FOR AGT

44100-26G80-YWW

Unavailable

1-2

TANK ASSY, FUEL (BLACK) | FOR YVB

44100-26G80-6UX

$916.02

2-1

.TAPE SET | FOR YWW

68110-26G30-BTM

Unavailable

2-2

.TAPE SET | FOR 6UX

68110-26G30-BTL

$69.03

3-1

.EMBLEM (BLACK) | FOR YWW

68111-47C10-019

$22.97

3-2

.EMBLEM | FOR 6UX

68111-47C10-30H

Unavailable

4

CAP SET,FUEL TA This part replaces 44200-24840.

44200-24842

$144.27

5

CUSHION

09329-10016

$3.10

6

CUSHION

44541-38200

Unavailable

7

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.52

8

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$5.27

9

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

10

WASHER (8.5X33X1.5)

09160-08146

$2.60

11

BOLT

07120-0835B

$4.58
