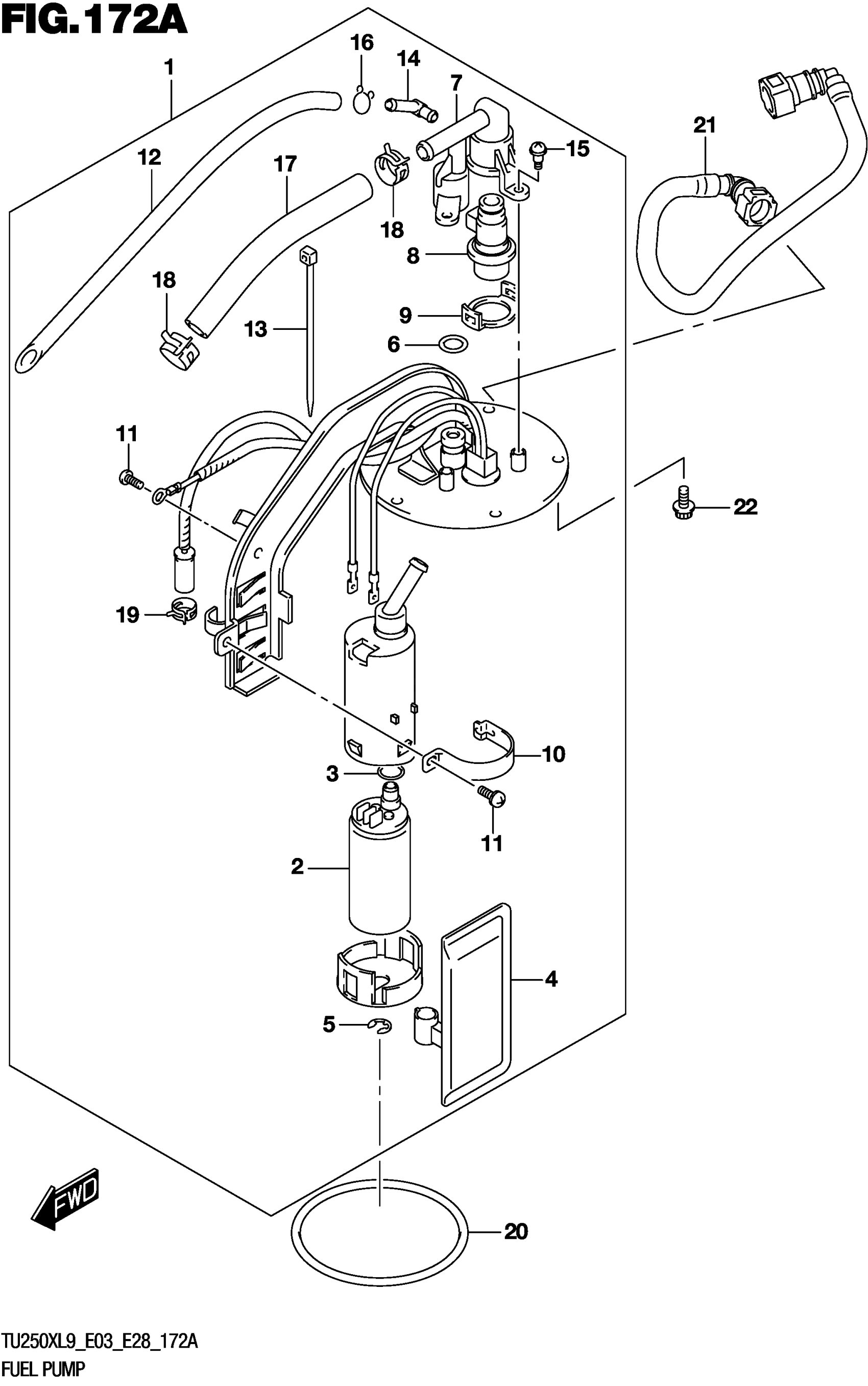

Suzuki TU250XL9 (2019) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY

15100-26GA0

$807.93

2

.PUMP

15110-26GA0

$458.10

3

.O RING

13295-26GA0

$4.68

4

.FILTER

15420-26GA0

$46.32

5

.PLATE

15119-14G00

$5.38

6

.O RING

15125-48G00

$14.27

7

.ADAPTER

15131-26GA0

$76.63

8

.REGULATOR,PRESSURE

15610-48G00

$201.52

9

.CLIP

15613-48G00

Unavailable

10

.BAND

15426-26GA0

Unavailable

11

.SCREW

15116-48G00

$5.58

12

.HOSE

13683-26GA0

$11.60

13

.CLAMP

13432-14G00

Unavailable

14

.JOINT

15614-26GA0

Unavailable

15

.SCREW

15135-48G00

Unavailable

16

CLIP

13693-24F00

$3.22

17

.HOSE

13683-26GB0

Unavailable

18

.CLIP

15135-14G00

Unavailable

19

.CLAMP

15175-48G00

Unavailable

20

O-RING

15201-35F00

$27.60

21

HOSE

15810-26GB0

$103.45

22

BOLT

07120-0612A

$2.50
