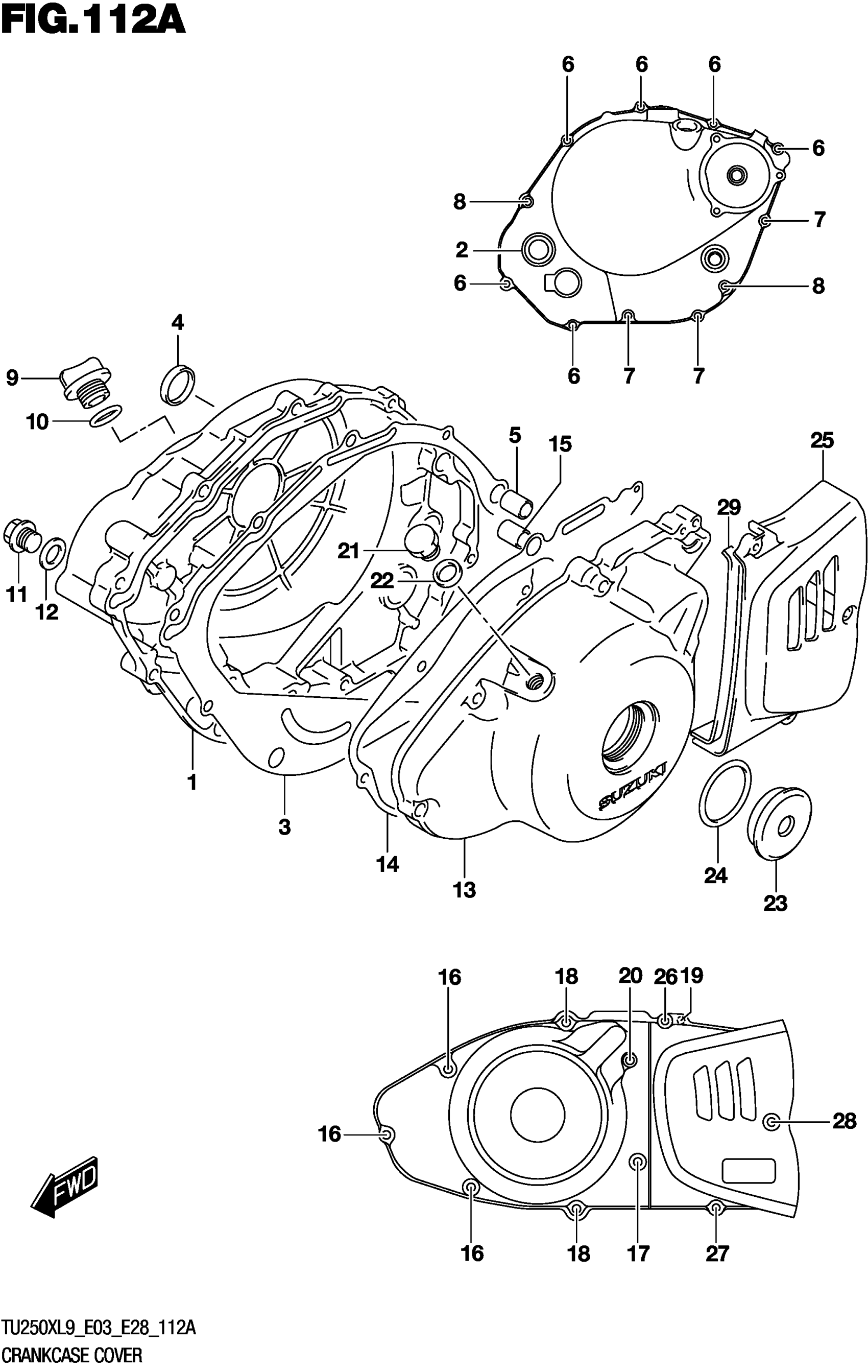

Suzuki TU250XL9 (2019) CRANKCASE COVER Diagram

#

Description
Price

1

COVER

11340-25D01

$326.27

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

.GASKET

11482-38212

$27.42

4

PLUG CLUTCH COVER KICK

11342-15D00

$10.07

5

PIN (10.4X13X18)

04211-13189

$2.19

6

BOLT (6X25)

09103-06212

$2.47

7

BOLT (6X35)

09103-06214

$2.48

8

BOLT (6X45)

09103-06224

$2.70

9

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

10

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

11

PLUG (14X12) | OIL DRAIN

09247-14026

$3.76

12

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

13

COVER

11351-26G10

Unavailable

14

.GASKET

11483-37D11

$25.42

15

PIN (10.4X13X18)

04211-13189

$2.19

16

BOLT (6X25)

09103-06212

$2.47

17

BOLT (6X35)

09103-06214

$2.48

18

BOLT (6X50)

09103-06238

$2.66

19

BOLT

01547-0525A

Unavailable

20

BOLT (6X60)

09103-06261

$3.16

21

PLUG (12X9)

09247-12104

$2.73

22

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

23

PLUG (36X10,SILVER)

09259-36016-20H

$13.80

24

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

25

COVER

11361-25D00

$129.03

26

BOLT (5X20)

09103-05019

Unavailable

27

BOLT (5X30)

09103-05015

$2.72

28

BOLT (5X45)

09103-05021

$2.72

29

DAMPER

11362-38300

Unavailable
