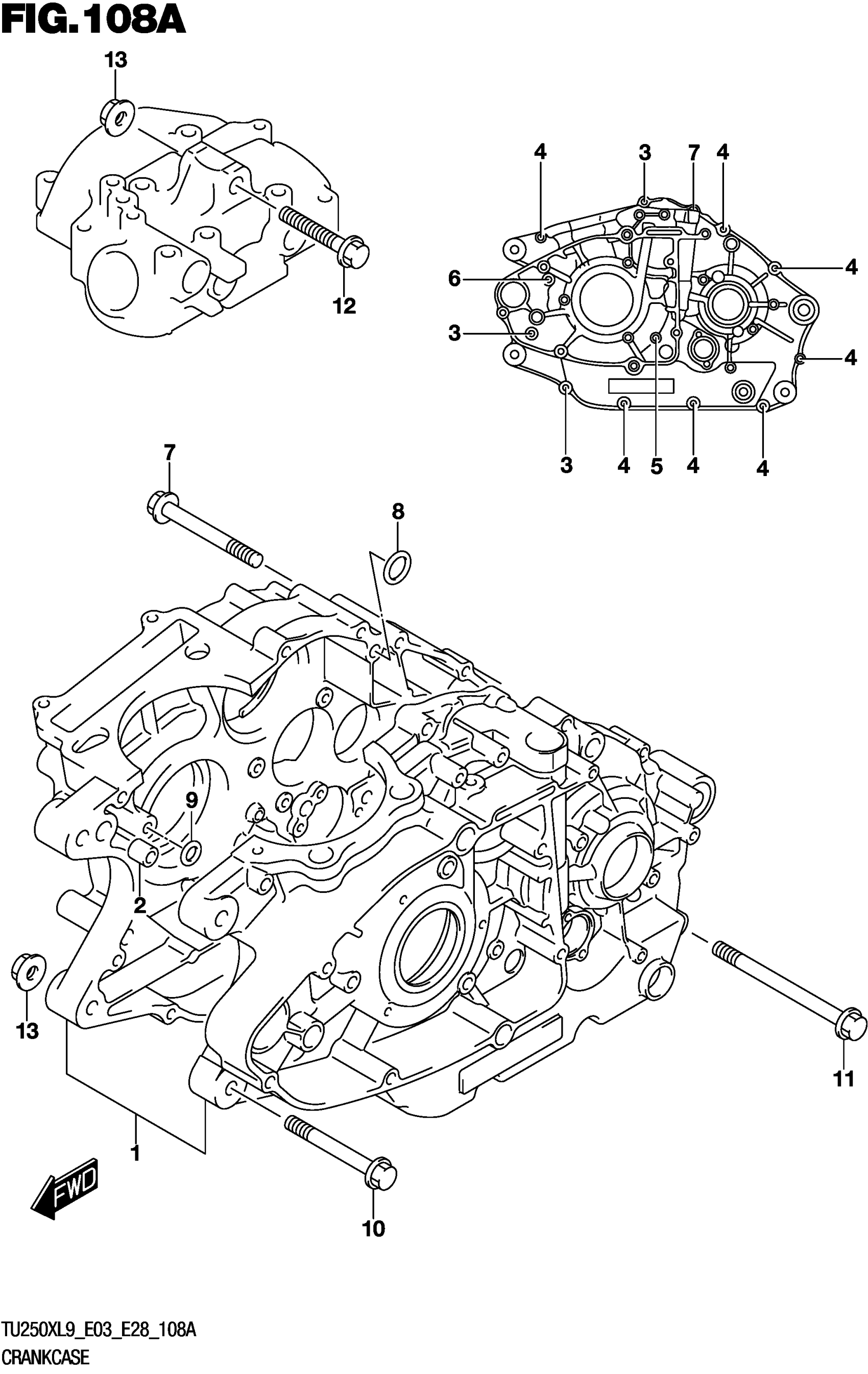

Suzuki TU250XL9 (2019) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

11300-26G01

Unavailable

2

PIN (10.4X13X18)

04211-13189

$2.19

3

BOLT

01547-0635A

$2.30

4

BOLT

01547-0645A

$2.42

5

.BOLT

01547-0655A

$2.42

6

BOLT

01547-0660A

$2.82

7

.BOLT

01547-0670A

$2.92

8

O-RING (D:1.9,ID:9.8)

09280-10016

$3.37

9

O-RING (D:1.9 ID:6.8)

09280-07004

$1.53

10

BOLT (8X67)

09103-08037

$5.57

11

.BOLT (8X105)

09103-08179

Unavailable

12

BOLT (8X50)

09103-08081

$3.72

13

NUT

08319-3108A

$2.32
