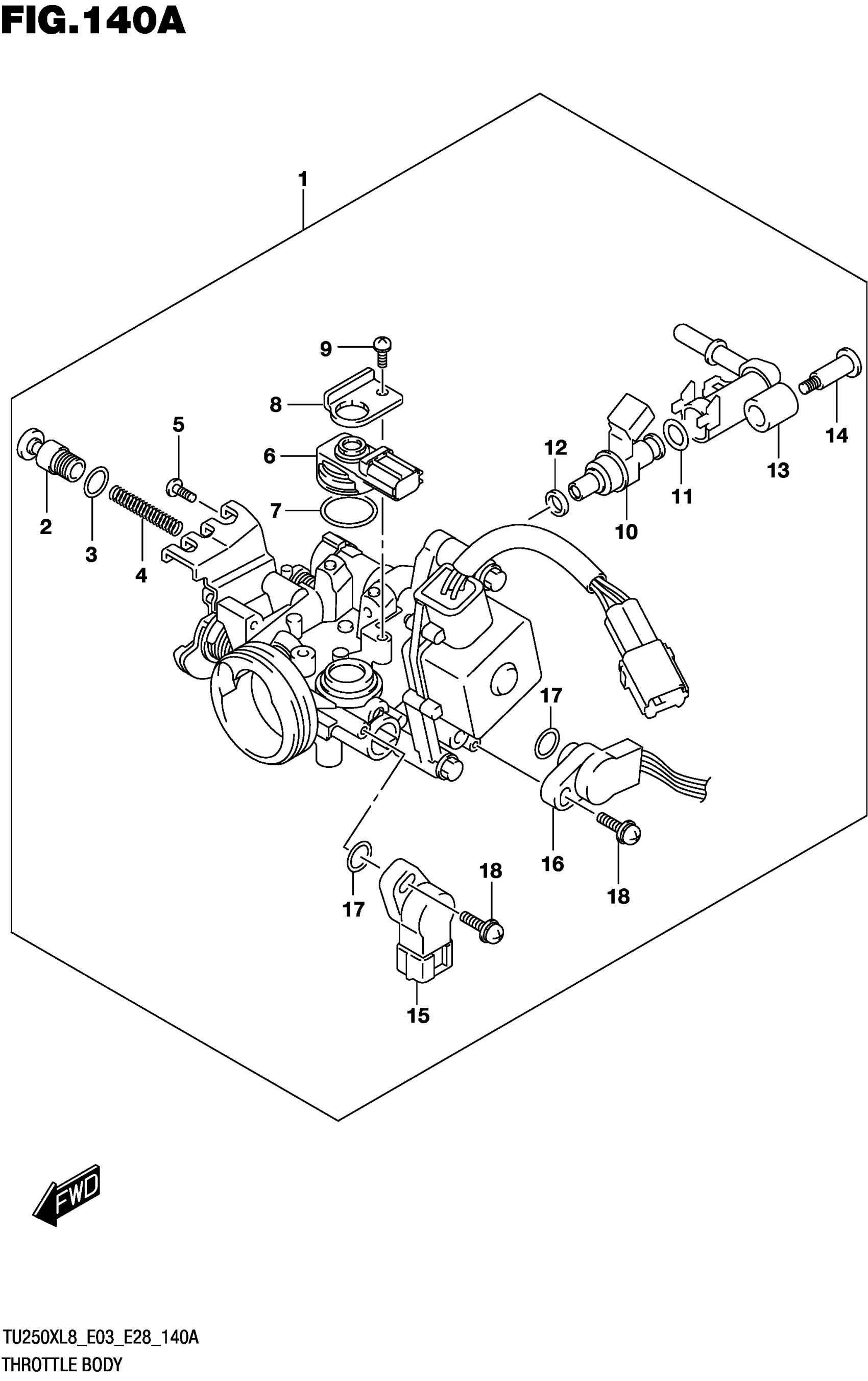

Suzuki TU250XL8 (2018) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROT This part replaces 13400-26GA3.

13400-26GA4

$631.67

2

.SCREW

13279-26GA0

Unavailable

3

.O-RING

13295-14G00

$3.37

4

.SPRING

13271-26GA0

Unavailable

5

.SCREW

13601-14G00

$3.03

6

.SENSOR,MAP

15620-05H00

$273.45

7

.O RING This part replaces 15621-05H00.

15621-05H01

$9.05

8

.PLATE,MAP SENSOR

15622-33H00

Unavailable

9

.SCREW

02112-14087

$2.38

10

.INJECTOR ASSY

15710-26GA0

$263.01

11

.O-RING

15721-21H00

$9.09

12

.RING,SEAL

15722-21H00

$11.25

13

.PIPE

13471-26GA0

$35.45

14

.SCREW

13601-35F00

$7.50

15

.SENSOR

13580-33H01

$259.07

16

.SENSOR ASSY

13580-40F31

$212.03

17

.O-RING

13575-40F00

$4.09

18

.SCREW

13605-40F00

$3.71
