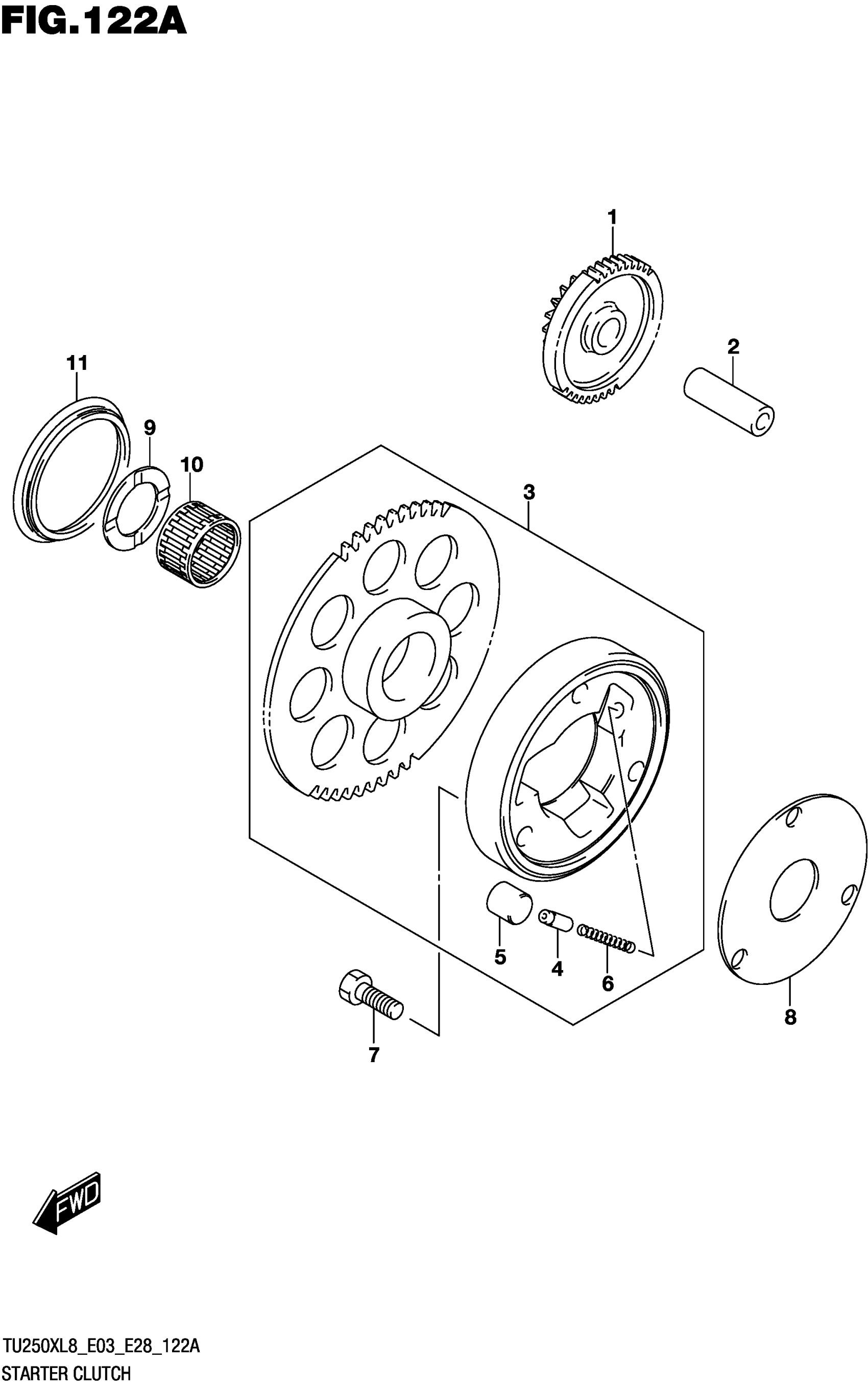

Suzuki TU250XL8 (2018) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR

12611-38301

$83.57

2

PIN (7.4X13X40)

09206-13007

$16.00

3

CLUTCH SET

12600-38815

$260.68

4

.PIECE

12633-31000

$8.77

5

.PIN (14X13)

09261-14001

$3.91

6

.SPRING

09440-04015

$2.22

7

BOLT (8X20)

09100-08299

$4.17

8

SHIM

12649-49300

$18.02

9

WASHER (27X40X2.5)

09160-27005

$12.93

10

BEARING (27X32X21.8)

09263-27004

$33.15

11

OIL SEAL (52X62X6.8)

09289-52002

$31.36
