2018 Suzuki TU250XL8 Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2018 Suzuki TU250XL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

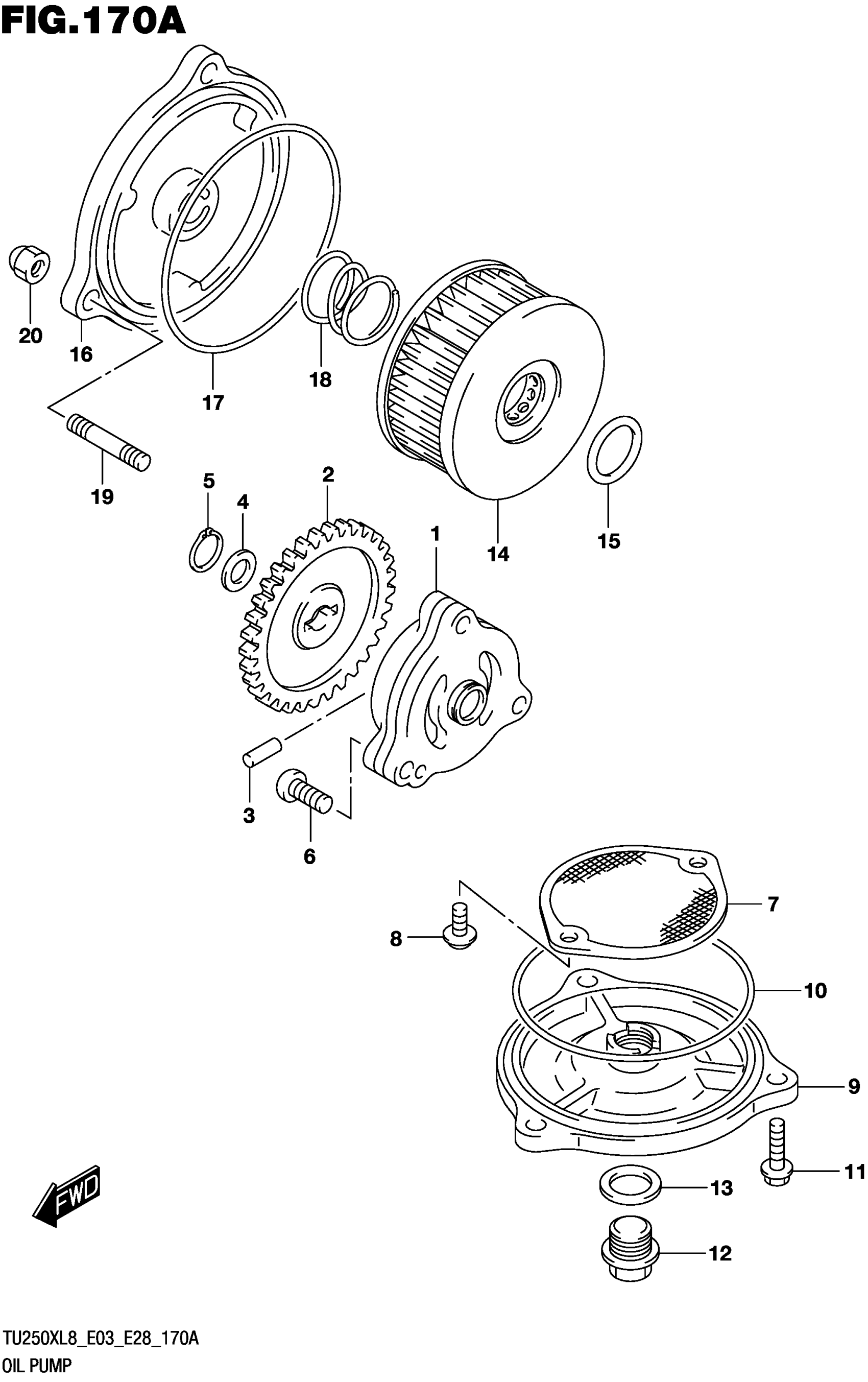

2018 Suzuki TU250XL8 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY

16400-38200

1
Out of stock

2

GEAR

16331-26F00

1
Out of stock

3

PIN (4X18.5)

09261-04001

1

$1.87

In stock

4

SHIM (10X18X0.5)

09181-10158

1
Out of stock

5

CIRCLIP

08331-31109

1
Out of stock

6

BOLT (6X25)

07130-0625A

3

$2.85

In stock

7

STRAINER

16520-37400

1

$9.17

In stock

8

SCREW

02112-7512A

2
Out of stock

9

CAP

16523-38200

1

$36.98

In stock

10

.O RING (D:2.4

09280-82001

1

$5.01

In stock

11

BOLT

01547-0620A

3
Out of stock

12

PLUG (14X12)

09247-14026

1

$3.63

In stock

13

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

14

FILTER

16510-38240

1

$5.78

In stock

15

1

$1.83

In stock

16

CAP

16512-25D00

1

$38.87

In stock

17

.O RING (D:2.4,ID:73)

09280-72001

1

$4.79

In stock

18

SPRING

09440-21006

1

$2.18

In stock

19

STUD BOLT

09108-06123

3

$3.04

In stock

20

NUT

08313-10067

3

$1.97

In stock
