2018 Suzuki TU250XL8 Crankcase Cover Diagram

← All diagrams

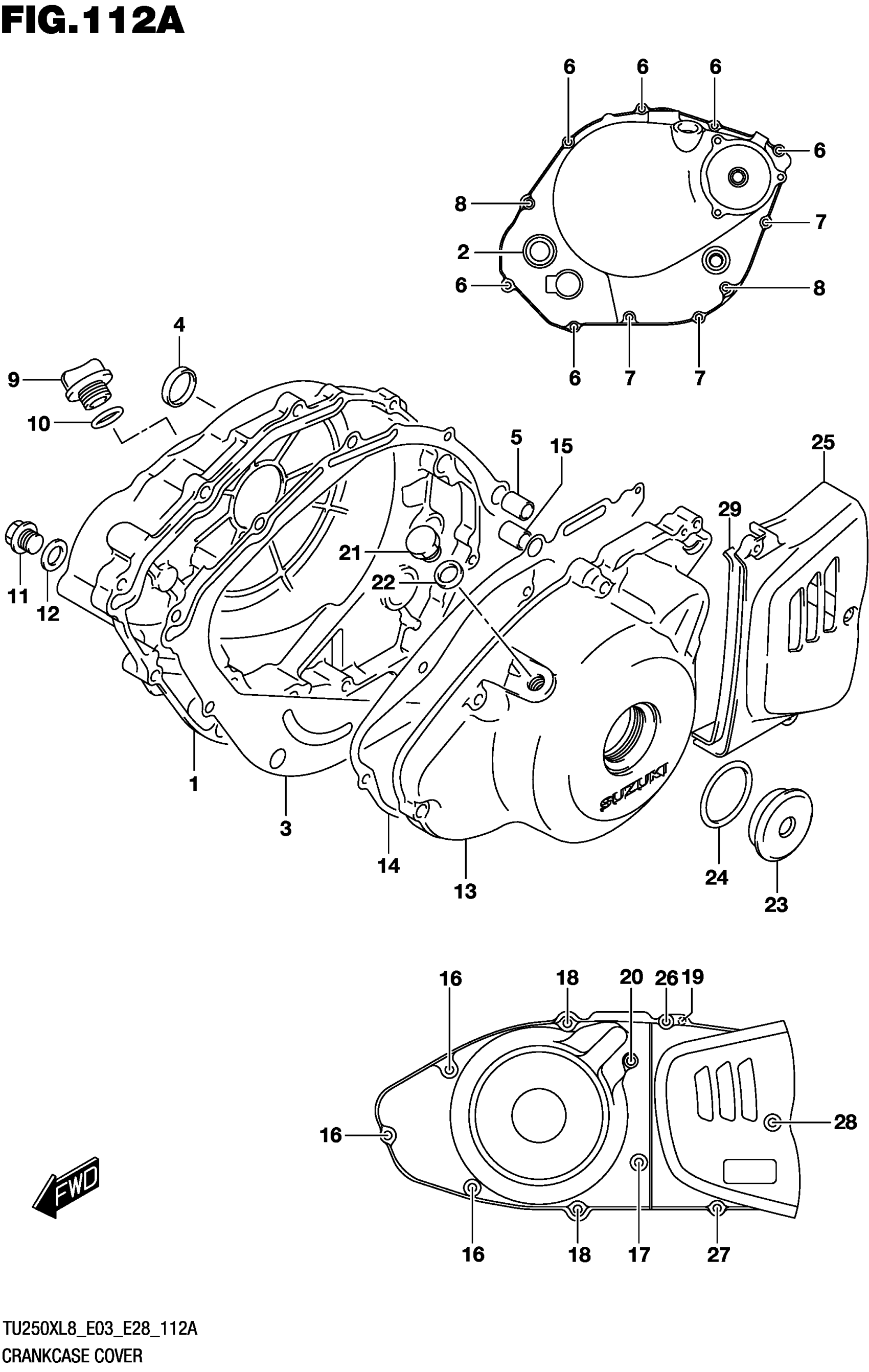

Find the part on the Crankcase Cover diagram for your 2018 Suzuki TU250XL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki TU250XL8 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

11340-25D01

1
Out of stock

2

.LENS, OIL LEVEL CHECK

11971-45010

1
Out of stock

3

.GASKET

11482-38212

1
Out of stock

4

PLUG CLUTCH COVER KICK

11342-15D00

1
Out of stock

5

PIN (10.4X13X18)

04211-13189

2
Out of stock

6

BOLT (6X25)

09103-06212

6
Out of stock

7

BOLT (6X35)

09103-06214

3
Out of stock

8

BOLT (6X45)

09103-06224

2
Out of stock

9

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

10

O-RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

11

PLUG (14X12) | OIL DRAIN

09247-14026

1
Out of stock

12

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

13

COVER

11351-26G10

1
Out of stock

14

.GASKET

11483-37D11

1
Out of stock

15

PIN (10.4X13X18)

04211-13189

2
Out of stock

16

BOLT (6X25)

09103-06212

3
Out of stock

17

BOLT (6X35)

09103-06214

1
Out of stock

18

BOLT (6X50)

09103-06238

2
Out of stock

19

BOLT

01547-0525A

—
Out of stock

20

BOLT (6X60)

09103-06261

1
Out of stock

21

PLUG (12X9)

09247-12104

1
Out of stock

22

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

23

PLUG (36X10,SILVER)

09259-36016-20H

1
Out of stock

24

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

25

COVER

11361-25D00

1
Out of stock

26

BOLT (5X20)

09103-05019

1
Out of stock

27

BOLT (5X30)

09103-05015

1
Out of stock

28

BOLT (5X45)

09103-05021

1
Out of stock

29

DAMPER

11362-38300

1
Out of stock
