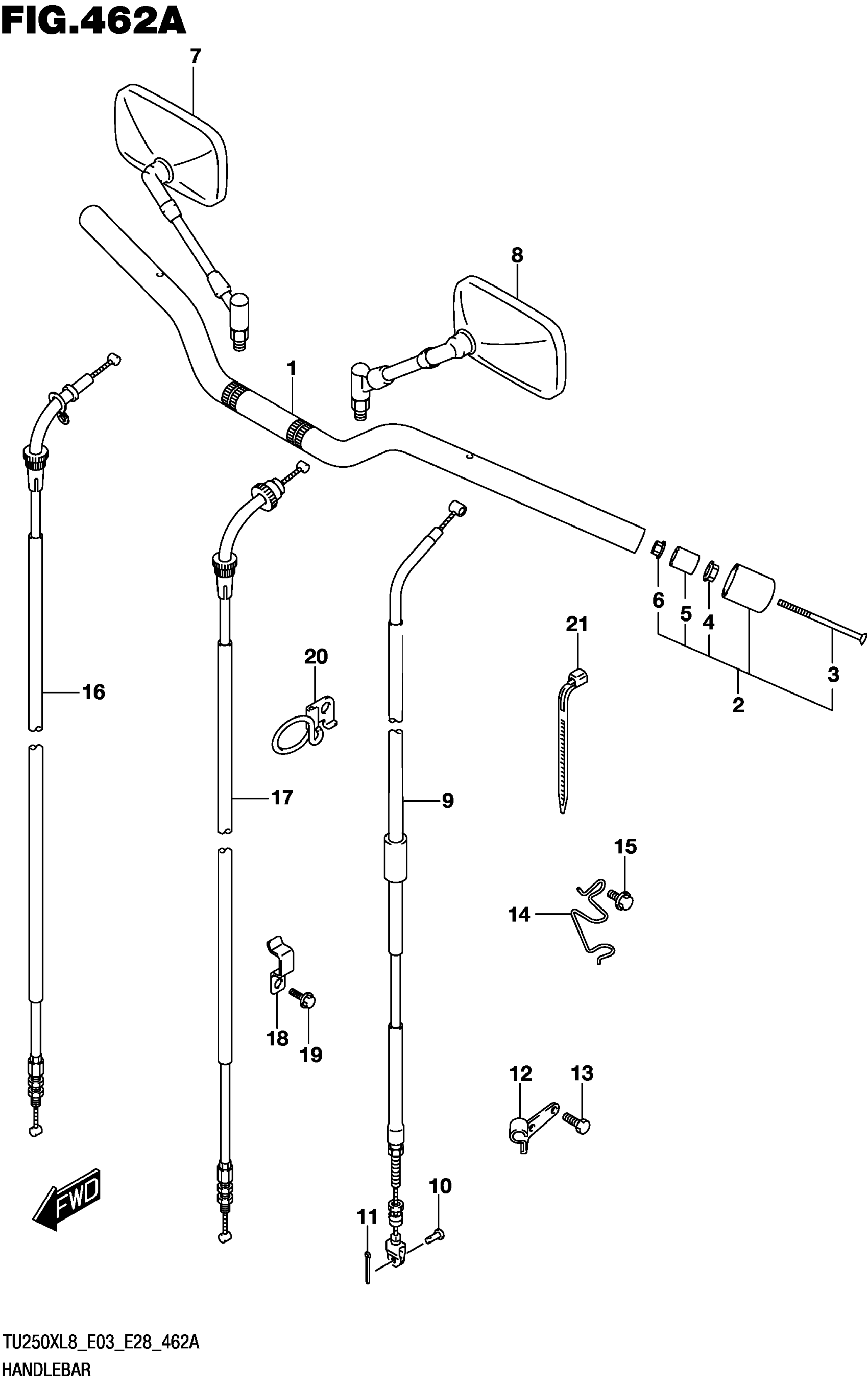

Suzuki TU250XL8 (2018) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-26G00

$117.76

2

BALANCER SET

56270-26G00

$48.02

3

.SCREW

02122-06757

$3.05

4

NUT

08316-1008B

$2.66

5

.EXPANDER

56272-44500

$4.42

6

.NUT

09159-06024

$2.11

7

MIRROR ASSY

56500-39E40

$187.60

8

MIRROR ASSY

56600-39E40

$187.60

9

CABLE ASSY

58200-26G00

$33.25

10

PIN (L:13)

09200-06004

$2.20

11

PIN

04111-2015A

$1.49

12

STOPPER

58634-38210

$8.42

13

BOLT

01500-0616A

$1.78

14

GUIDE

58623-26G00

Unavailable

15

BOLT

01550-0612A

$1.97

16

CABLE ASSY

58300-26G20

$47.88

17

CABLE ASSY

58300-26G30

$42.83

18

CLAMP This part replaces 09403-10307.

09403-10328

$1.98

19

BOLT

01550-0616B

$2.48

20

GUIDE

58620-26G00

Unavailable

21

CLAMP (L:190)

09407-19401

$3.05
