Description

Price

1

HEAD ASSY

11100-26G01

$916.98

2

.RING (10X85)

09381-10004

$1.50

3

.PIN (8X11)

09206-08001

$1.78

4

.BOLT (6X60)

09103-06064

$2.12

5

GASKET (5.8X13X1.2)

09168-06023

$2.35

6

.GASKET

11141-26G00

$19.20

7

PIN (10.4X13X18)

04211-13189

$2.19

8

BOLT (6X45)

01550-0645A

$2.41

9

NUT

08313-2006A

$1.97

10

.NUT

09159-10026

$6.20

11

GASKET (10.5X22X2)

09168-10017

$3.04

12

PAD

11151-39300

Unavailable

13

SPARK PLUG (X24ESR-U) | DENSO

09482-00223

$5.18

13

SPARK PLUG (DR8EA) | NGK

09482-00399

$3.32

14

CAP INSPECTION This part replaces 11175-18900.

11175-18920

$12.20

15

.O RING (D:3,ID:29.5)

09280-30001

$1.72

16

PLUG

09241-38001

$12.40

17

PIPE

13110-26GA0

$41.63

18

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

19

SCREW

02122-0616A

$1.49

20

.CLAMP

13170-25D01

$6.60

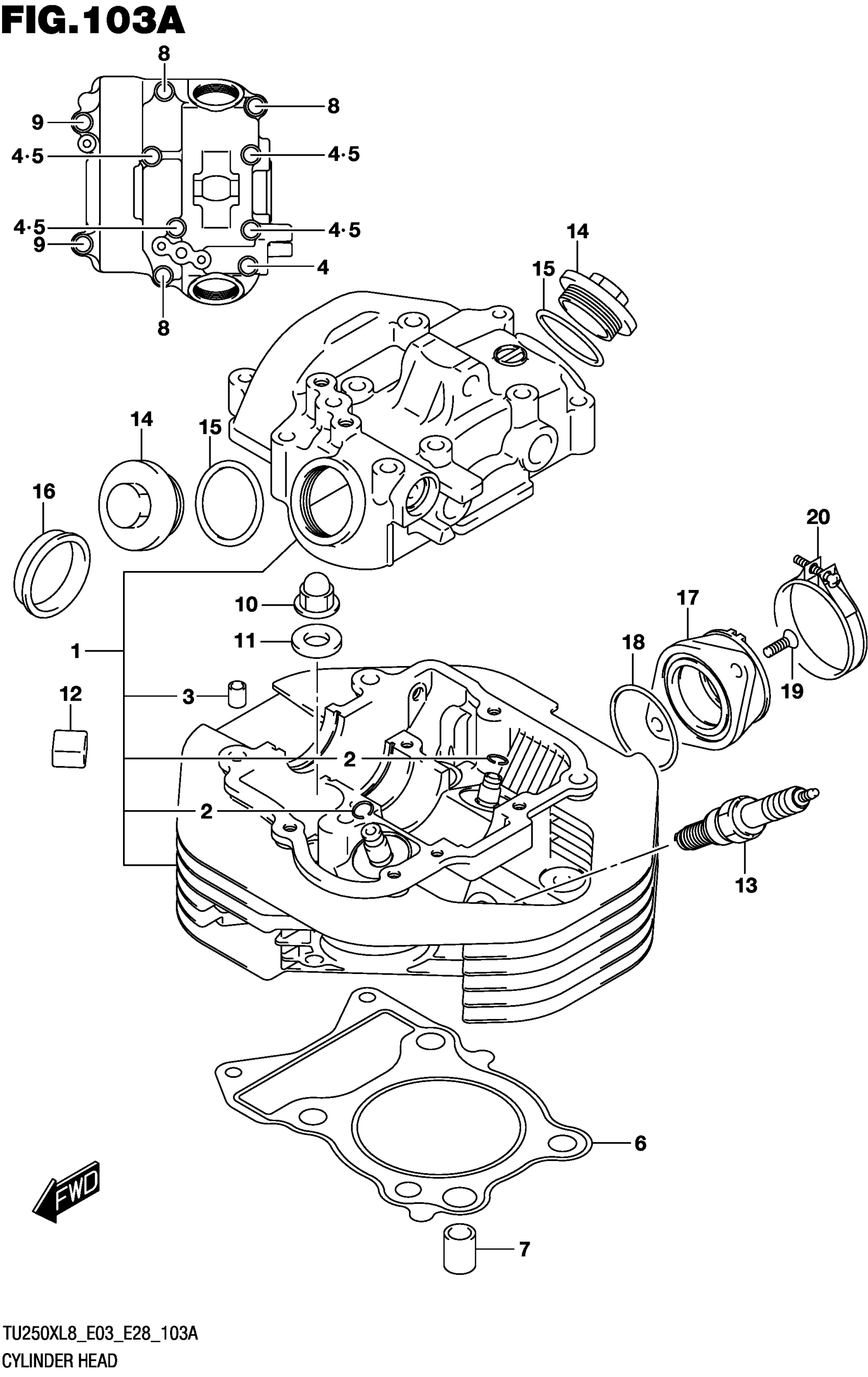

Suzuki TU250XL8 (2018) CYLINDER HEAD Diagram
