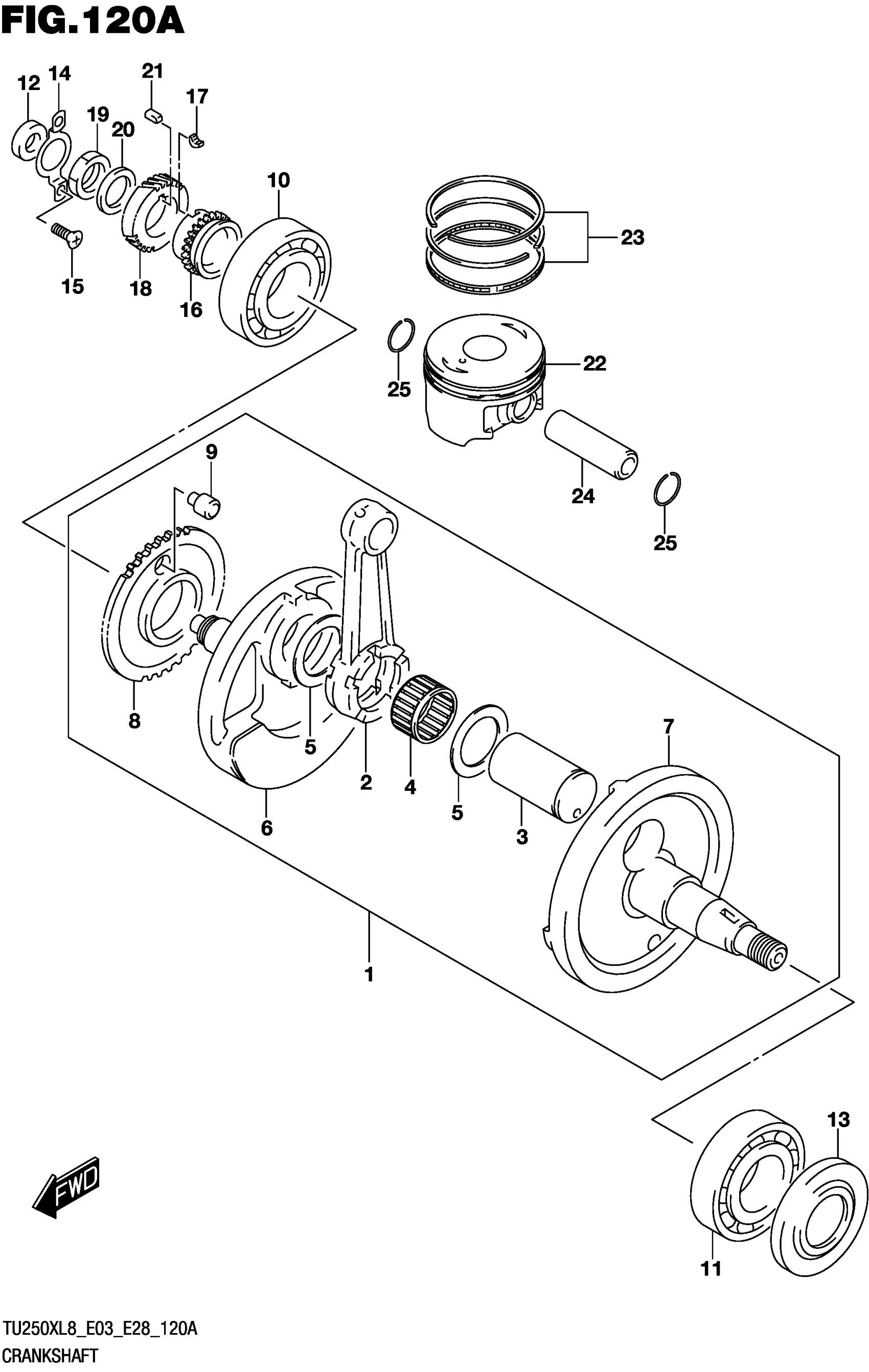

Suzuki TU250XL8 (2018) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-26G11

Unavailable

2

.CONNROD

12161-38201

Unavailable

3

.PIN

12211-38211

Unavailable

4

.BEARING (31X39X21)

09263-31012-0B0

Unavailable

5

.WASHER (31X48.5X1)

09160-31002

$7.82

6

.CRANKSHAFT

12221-26G10

Unavailable

7

.CRANKSHAFT

12261-26G10

Unavailable

8

.GEAR

12661-38202

Unavailable

8

.GEAR

12661-38202

Unavailable

9

.PIN

09209-12006

Unavailable

10

BEARING,30X72X19 (30X72X19) | RH

09262-30077

$58.43

11

BEARING (35X80X21) | LH

09262-35028

Unavailable

12

OIL SEAL (14X26X6) | RH

09282-14001

Unavailable

13

WASHER

12521-38300

Unavailable

14

RETAINER

12548-38200

Unavailable

15

SCREW

02122-0510A

Unavailable

16

SPROCKET

12731-26G00

Unavailable

16

SPROCKET

12731-26G00

Unavailable

17

KEY

12749-32400

Unavailable

18

GEAR

21111-38200

Unavailable

19

NUT

09140-20013

$4.26

20

WASHER

09164-20003

$3.85

21

KEY

09421-07002

Unavailable

22

PISTON (YELLOW)

12111-26G00-0F0

$117.48

23

RING SET

12140-49280

$53.13

24

PIN

12151-15501

$17.37

25

CIRCLIP (OD:20.5)

09381-18002

$1.67
