2017 Suzuki TU250XL7 Speedometer Diagram

← All diagrams

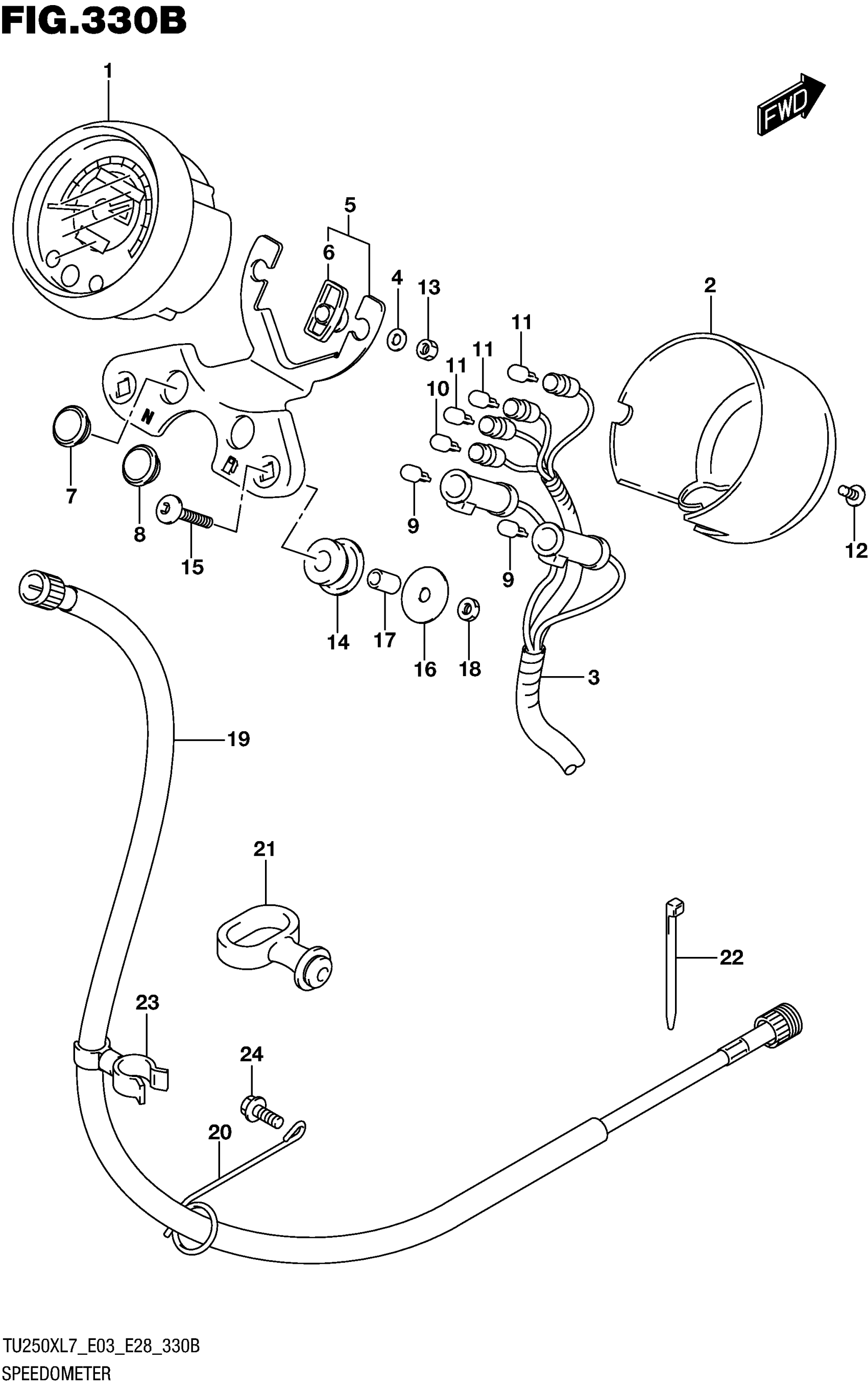

Find the part on the Speedometer diagram for your 2017 Suzuki TU250XL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki TU250XL7 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER

34110-26G30

—
Out of stock

2

COVER, UNDER

34111-26G01

1

$62.32

In stock

3

CORD ASSY

34170-26G30

1
Out of stock

4

WASHER (5.2X16X1)

09160-05013

2
Out of stock

5

BRACKET ASSY

34950-26G30

1

$146.42

In stock

6

2

$9.78

In stock

7

LENS (GREEN)

36321-13G00

1

$6.52

In stock

8

LENS (ORANGE)

36331-13GA0

1
Out of stock

9

BULB (12V,3.4W)

09471-12028

2

$2.13

In stock

10

BULB (12V,3W,T6.5)

09471-12103

1

$3.71

In stock

11

.BULB (12V1.7W)

09471-12108

3

$3.32

In stock

12

SCREW

03541-1412A

1

$2.32

In stock

13

NUT

08310-00057

2

$1.97

In stock

14

CUSHION, SPEEDOMETER

34956-31001

2

$4.47

In stock

15

BOLT (6X30)

09107-06003

2

$2.92

In stock

16

WASHER (6.5X28X1.6)

09160-06136

2
Out of stock

17

SPACER (6.5X10X15.7)

09180-06294

2

$4.28

In stock

18

NUT

08310-0006B

2
Out of stock

19

1

$40.31

In stock

20

GUIDE, METER CABLE

34938-37000

1

$4.21

In stock

21

GUIDE, METER CABLE

58621-21204

1

$6.66

In stock

22

CLAMP (L:145)

09407-14407

2
Out of stock

23

CLIP

09408-00056

1

$3.37

In stock

24

BOLT

01550-0612B

1
Out of stock
