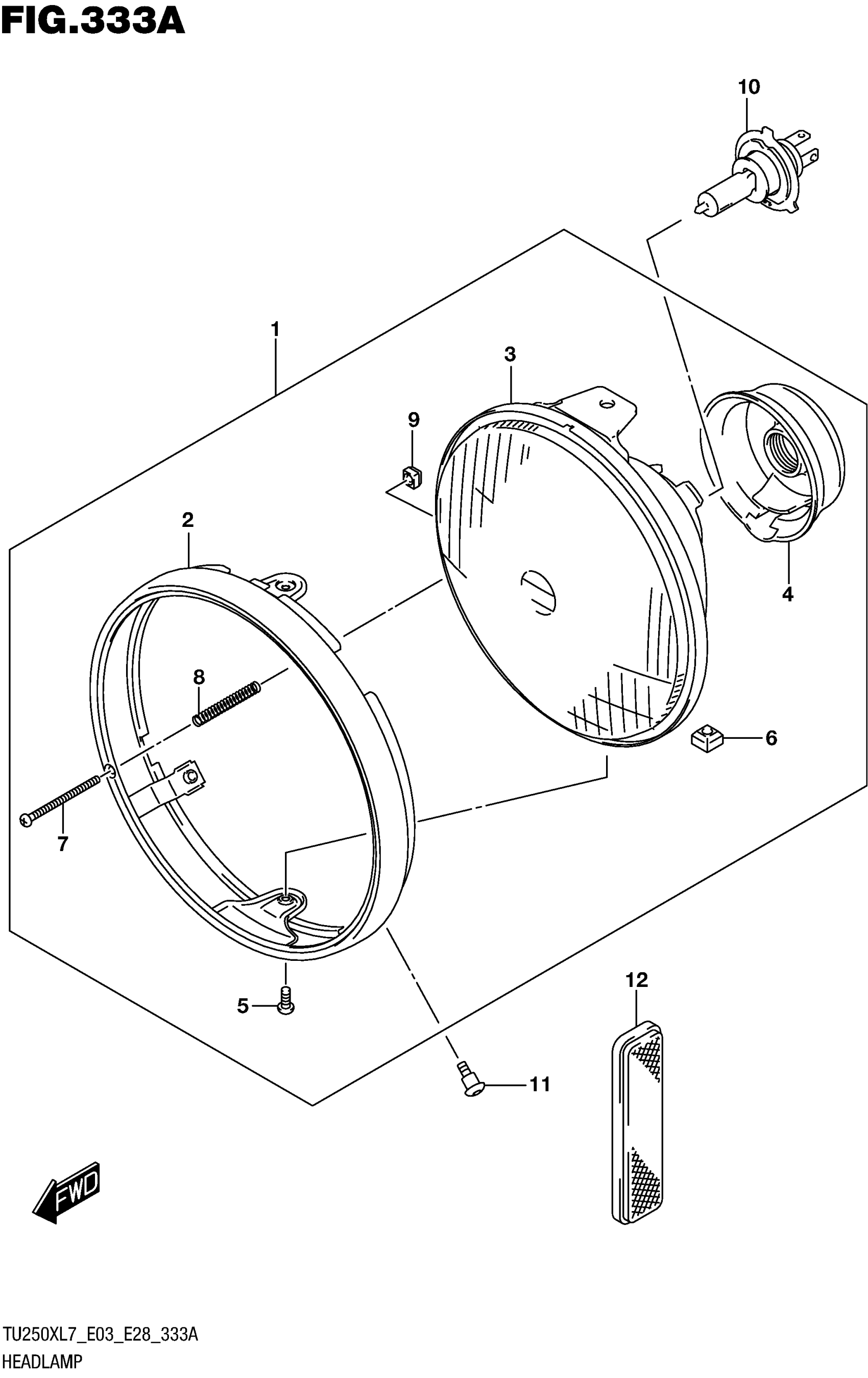

Suzuki TU250XL7 (2017) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-26G00-999

$232.60

2

.RIM

35111-26G00

$61.98

3

.UNIT, LAMP

35121-26G00

$263.88

4

.COVER, SOCKET

35173-38A00

$19.03

5

.SCREW

02112-0510A

$1.46

6

.NUT

35135-45900

$3.67

7

.SCREW (4X45)

35151-26G00

$7.30

8

.SPRING

35154-35300

$4.57

9

.NUT

35152-45600

$3.92

10

BULB (12V,60/55W)

09471-12060

$23.37

11

SCREW (5X12)

09139-05081

$4.03

12

REFLEX REFLECTOR ASSY, FR SID

35950-22H10

$82.25
