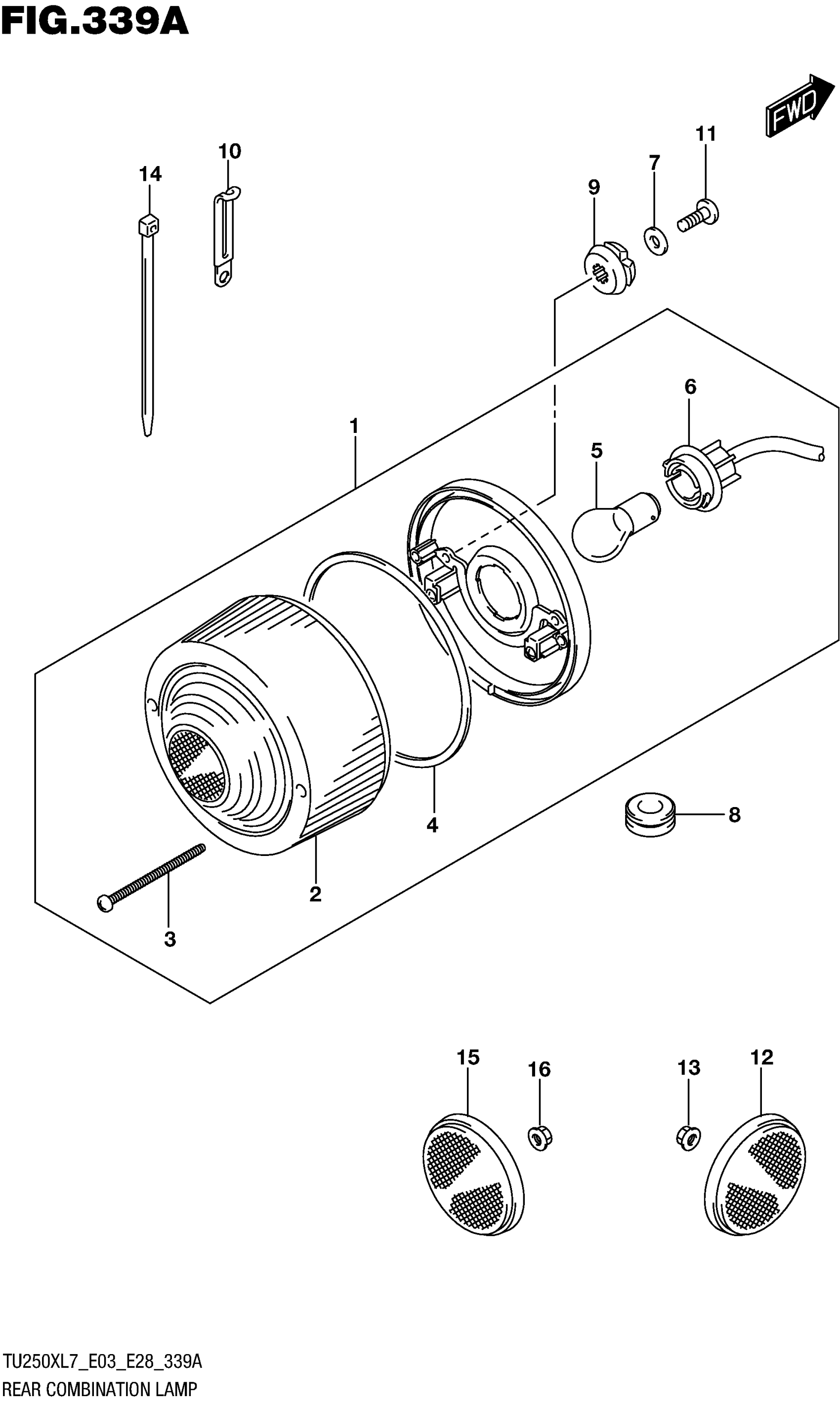

Suzuki TU250XL7 (2017) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-26G30

$352.40

2

.LENS

35712-26G30

$60.18

3

.SCREW

03211-04556

$2.27

4

.GASKET

35713-26G00

$23.03

5

.BULB (12V,21/5W)

09471-12128

$6.73

6

.CORD ASSY

35718-26G00

$41.38

7

WASHER (5.5X20X1.2)

09160-05501

$1.84

8

GROMMET

09308-07011

$2.62

9

CUSHION

09320-09010

$2.84

10

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.35

11

SCREW

02142-0525B

$2.34

12

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

13

NUT

08316-1005B

$2.50

14

CLAMP (L:145)

09407-14407

$3.57

15

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

16

NUT

08316-1005B

$2.50
