2017 Suzuki TU250XL7 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2017 Suzuki TU250XL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

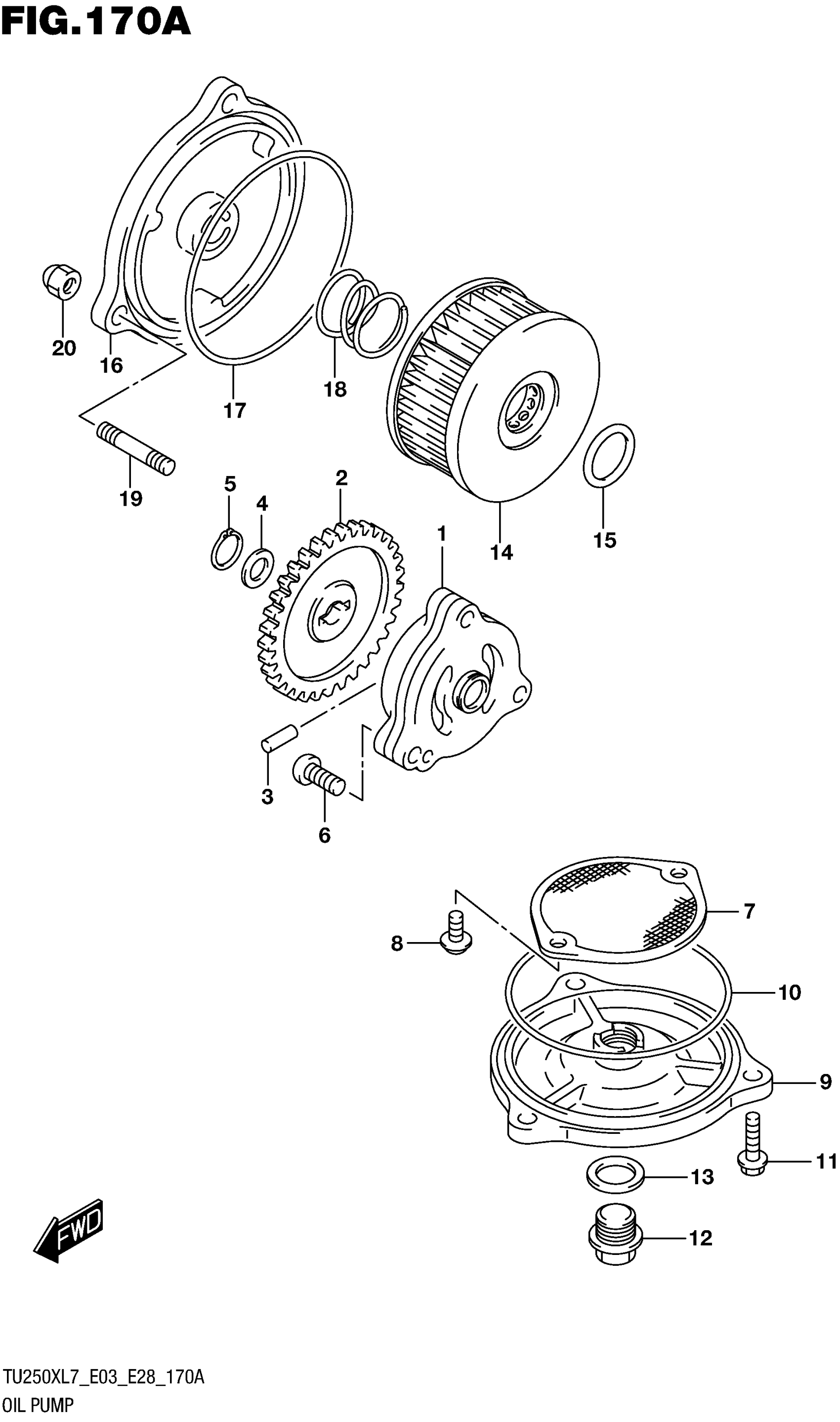

2017 Suzuki TU250XL7 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, ENG OIL

16400-38200

1
Out of stock

2

GEAR, OIL PUMP DRIVEN (NT:33)

16331-26F00

1
Out of stock

3

PIN (4X18.5)

09261-04001

1
Out of stock

4

SHIM (10X18X0.5)

09181-10158

1
Out of stock

5

CIRCLIP

08331-31109

1
Out of stock

6

BOLT (6X25)

07130-0625A

3
Out of stock

7

STRAINER, ENGINE OIL

16520-37400

1
Out of stock

8

SCREW

02112-7512A

2
Out of stock

9

CAP, OIL STRAINER

16523-38200

1
Out of stock

10

O RING (D:2.4,ID:85)

09280-82001

1

$5.01

In stock

11

BOLT

01547-0620A

3
Out of stock

12

PLUG (14X12)

09247-14026

1

$3.63

In stock

13

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

14

FILTER, ENGINE OIL

16510-38240

1
Out of stock

15

O-RING (D:2.4,ID:15.8)

09280-15007

1
Out of stock

16

CAP, OIL FILTER

16512-25D00

1
Out of stock

17

.O RING (D:2.4,ID:73)

09280-72001

1
Out of stock

18

SPRING

09440-21006

1
Out of stock

19

STUD BOLT

09108-06123

3
Out of stock

20

NUT

08313-10067

3
Out of stock
