2017 Suzuki TU250XL7 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2017 Suzuki TU250XL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

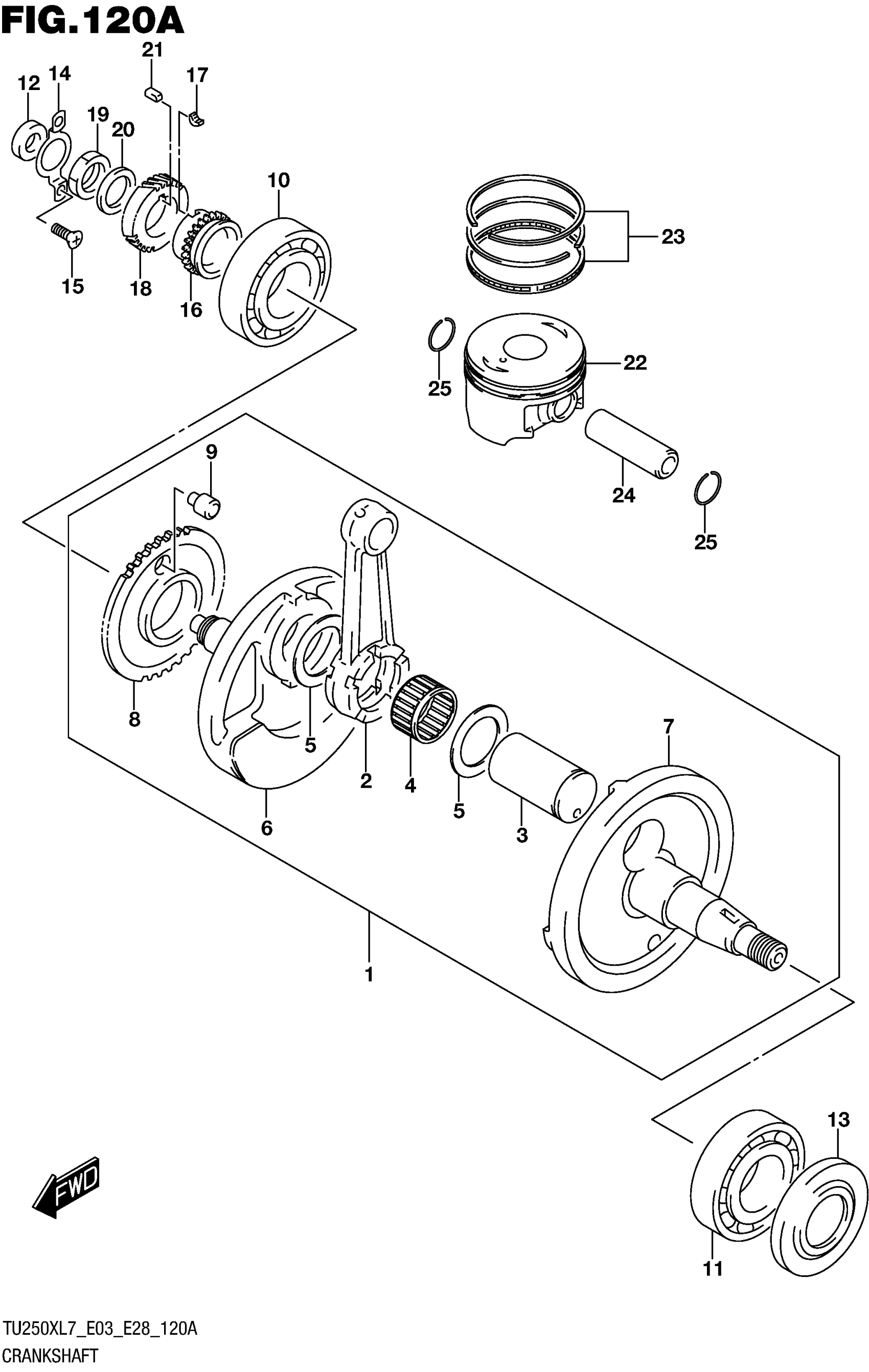

2017 Suzuki TU250XL7 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-26G11

1
Out of stock

2

.CONNROD

12161-38201

1
Out of stock

3

.PIN, CRANK

12211-38211

1
Out of stock

4

.BEARING (31X39X21)

09263-31012-0B0

1
Out of stock

5

.WASHER (31X48.5X1)

09160-31002

2

$8.50

In stock

6

.CRANKSHAFT, RH

12221-26G10

1
Out of stock

7

.CRANKSHAFT, LH

12261-26G10

1
Out of stock

8

.GEAR, CRANK BALANCER DRIVE

12661-38202

1
Out of stock

8

(NT:46)

12661-38202

1
Out of stock

9

.PIN

09209-12006

1
Out of stock

10

1

$63.52

In stock

11

BEARING (35X80X21) | LH

09262-35028

1
Out of stock

12

OIL SEAL (14X26X6) | RH

09282-14001

1
Out of stock

13

WASHER

12521-38300

1
Out of stock

14

RETAINER

12548-38200

1
Out of stock

15

SCREW

02122-0510A

2
Out of stock

16

SPROCKET, CAM CHAIN DRIVE

12731-26G00

1
Out of stock

16

(NT:21)

12731-26G00

1
Out of stock

17

KEY, CAM CHAIN DRIVE SPROCKET

12749-32400

1
Out of stock

18

GEAR, PRIMARI DRIVE (NT:21)

21111-38200

1
Out of stock

19

NUT

09140-20013

1

$4.21

In stock

20

WASHER

09164-20003

1

$4.18

In stock

21

KEY

09421-07002

1
Out of stock

22

PISTON (YELLOW)

12111-26G00-0F0

1

$131.95

In stock

23

RING SET, PISTON

12140-49280

1

$59.68

In stock

24

PIN

12151-15501

1

$19.60

In stock

25

SNAP RING

09381-18002

2
Out of stock
