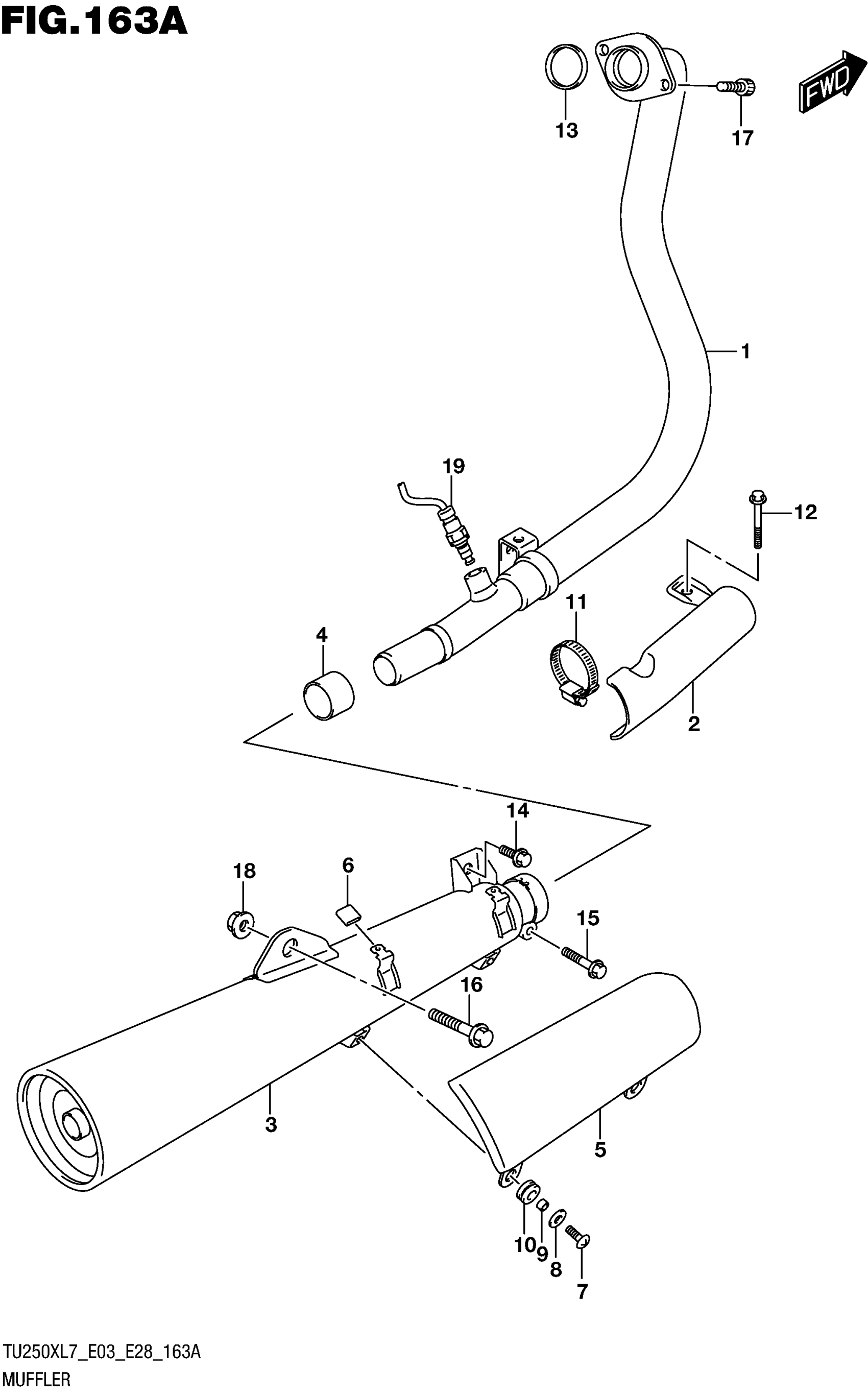

Suzuki TU250XL7 (2017) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-26G20

Unavailable

2

COVER, EXHAUST PIPE

14180-26G00

Unavailable

3

BODY, MUFFLER

14310-26G22

$1,216.27

4

CONNECTOR, MUFFLER

14771-38F00

$23.13

5

COVER, MUFFLER

14780-26G00

Unavailable

6

GROMMET

14795-10FA0

$5.58

7

SCREW (6X16)

09139-06111

Unavailable

8

WASHER (6.5X18X1.0)

09160-06028

$1.49

9

SPACER (6.5X9X5)

09180-06306

$2.03

10

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

$8.24

11

CLAMP

09402-40501

Unavailable

12

BOLT

01550-0650A

$2.85

13

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

14

BOLT (8X20)

09103-08286

$3.78

15

BOLT

01550-0840A

$3.05

16

BOLT

01560-1055B

Unavailable

17

BOLT

07130-0830A

$1.74

18

NUT

08319-3110B

$3.87

19

SENSOR, OXYGEN

18213-16H01

$357.65
