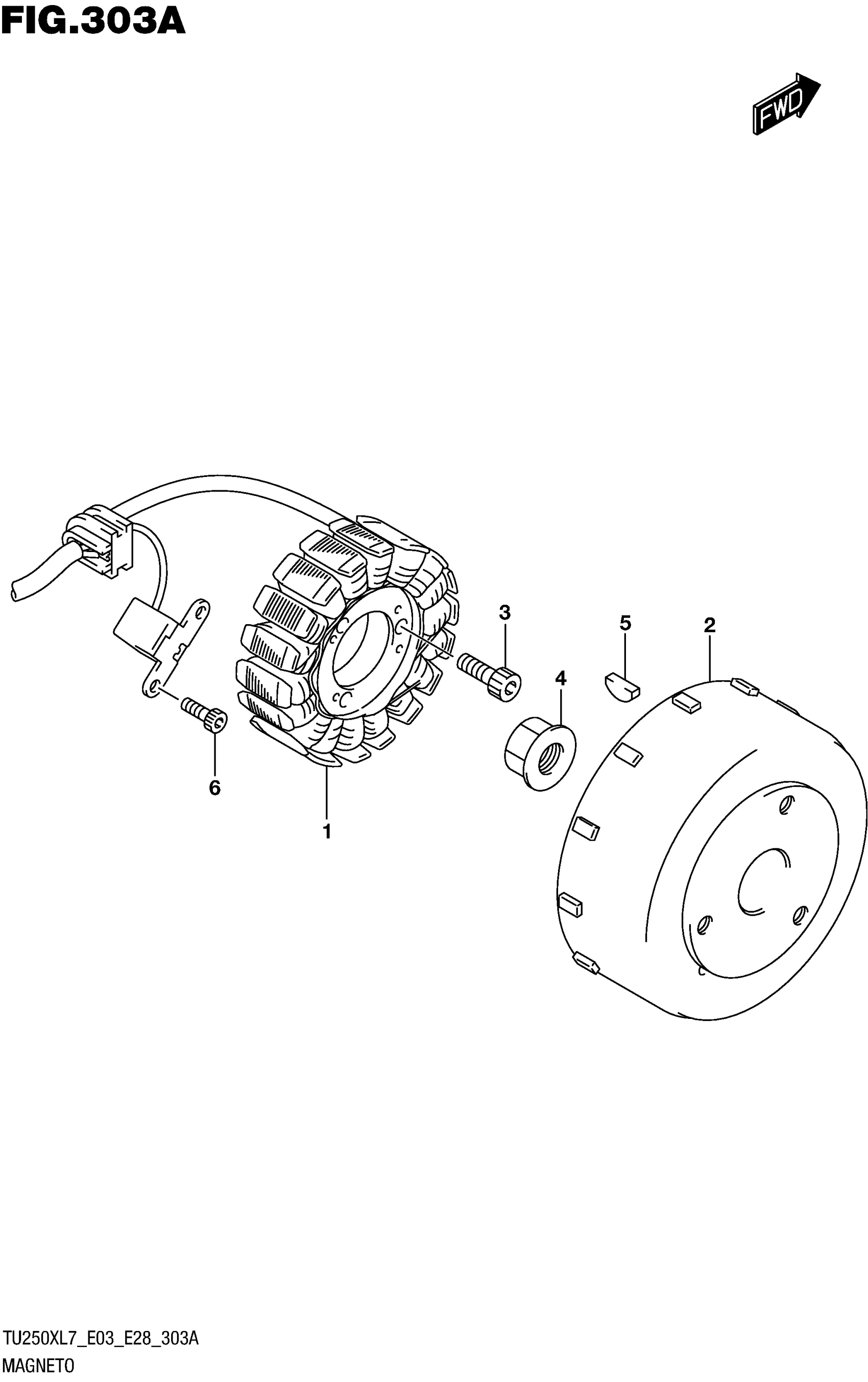

Suzuki TU250XL7 (2017) MAGNETO Diagram

#

Description

Price

1

STARTOR ASSY

32101-26G10

Unavailable

2

ROTOR ASSY

32102-26G00

Unavailable

3

BOLT

07130-0630A

$3.72

4

NUT

31792-49200

$9.69

5

KEY

08341-31039

$1.89

6

BOLT

07130-0512A

$2.19
