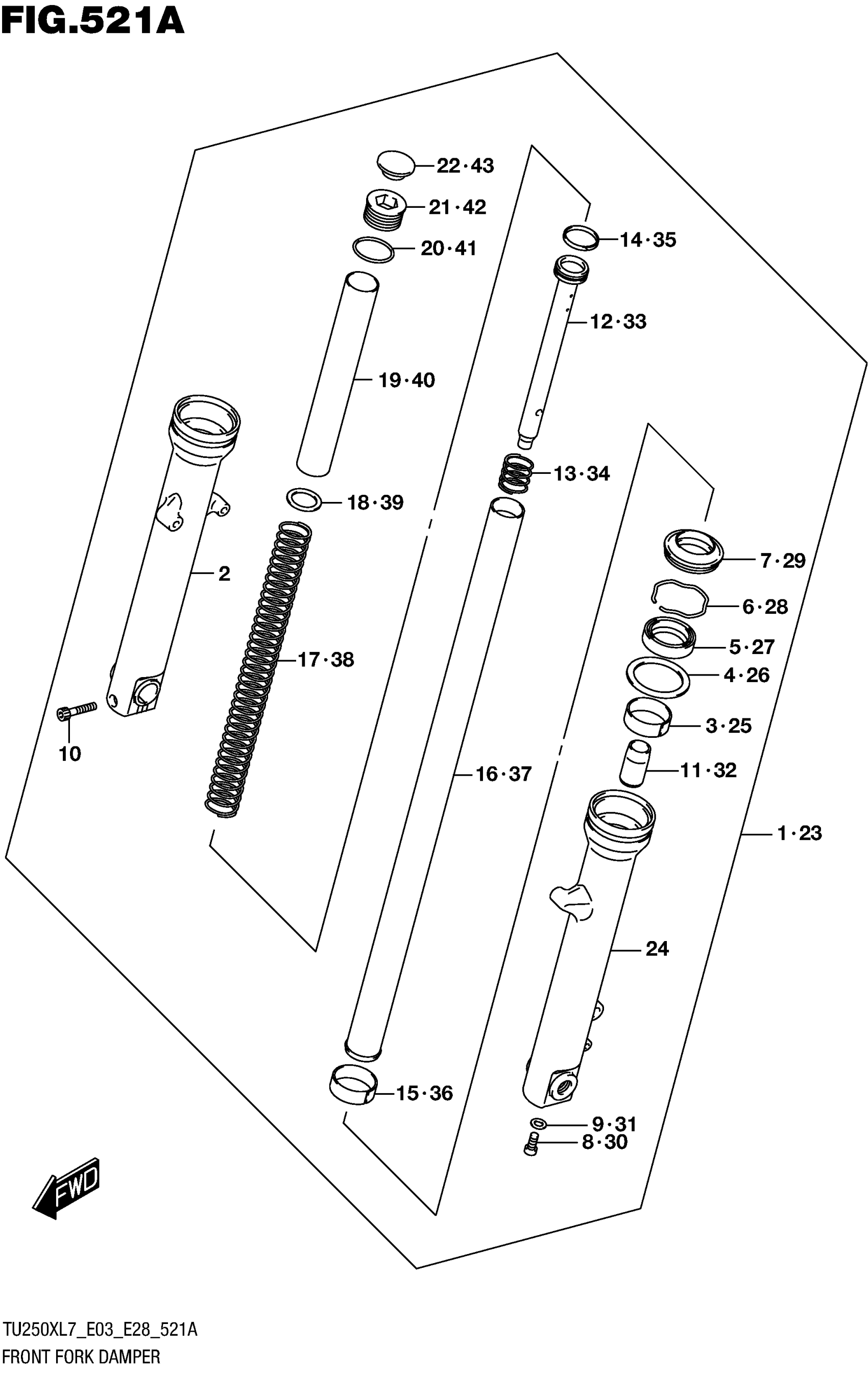

Find the part on the Front Fork Damper diagram for your 2017 Suzuki TU250XL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki TU250XL7 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-26G00

1
Out of stock

2

.TUBE, OUTER RH

51130-26G00

1
Out of stock

3

.BUSH, GUIDE

51152-25D00

1
Out of stock

4

SPACER, SEAL This part replaces 51158-03B30.

51168-38A00

1
Out of stock

5

.SEAL, OIL

51153-03B30

1
Out of stock

6

.RING, STOPPER

51156-03B30

1
Out of stock

7

.SEAL, DUST

51173-25D00

1
Out of stock

8

.BOLT

51147-48130

1
Out of stock

9

.GASKET

51148-36011

1
Out of stock

10

.BOLT

07130-08357

1
Out of stock

11

.PIECE, OIL LOCK

51195-25D00

1
Out of stock

12

.CYLINDER

51146-25D00

1
Out of stock

13

.SPRING, REBOUND

51177-25D00

1
Out of stock

14

.RING, PISTON

51196-25D00

1
Out of stock

15

.BUSH, SLIDE

51121-03B30

1
Out of stock

16

.TUBE, INNER

51110-25D00

1
Out of stock

17

.SPRING, MAIN

51171-26G00

1
Out of stock

18

.JOINT, SPRING

51192-25D00

1
Out of stock

19

.SPACER, SPRING

51176-25D00

1
Out of stock

20

.O RING

51117-25D00

1
Out of stock

21

.BOLT, FORK

51189-25D00

1
Out of stock

22

.CAP, FORK

51351-03D00

1
Out of stock

23

DAMPER ASSY, FRONT FORK LH

51104-26G00

1
Out of stock

24

.TUBE, OUTER LH

51140-26G00

1
Out of stock

25

.BUSH, GUIDE

51152-25D00

1
Out of stock

26

SPACER, SEAL This part replaces 51158-03B30.

51168-38A00

1
Out of stock

27

.SEAL, OIL

51153-03B30

1
Out of stock

28

.RING, STOPPER

51156-03B30

1
Out of stock

29

.SEAL, DUST

51173-25D00

1
Out of stock

30

.BOLT

51147-48130

1
Out of stock

31

.GASKET

51148-36011

1
Out of stock

32

.PIECE, OIL LOCK

51195-25D00

1
Out of stock

33

.CYLINDER

51146-25D00

1
Out of stock

34

.SPRING, REBOUND

51177-25D00

1
Out of stock

35

.RING, PISTON

51196-25D00

1
Out of stock

36

.BUSH, SLIDE

51121-03B30

1
Out of stock

37

.TUBE, INNER

51110-25D00

1
Out of stock

38

.SPRING, MAIN

51171-26G00

1
Out of stock

39

.JOINT, SPRING

51192-25D00

1
Out of stock

40

.SPACER, SPRING

51176-25D00

1
Out of stock

41

.O RING

51117-25D00

1
Out of stock

42

.BOLT, FORK

51189-25D00

1
Out of stock

43

.CAP, FORK

51351-03D00

1
Out of stock
