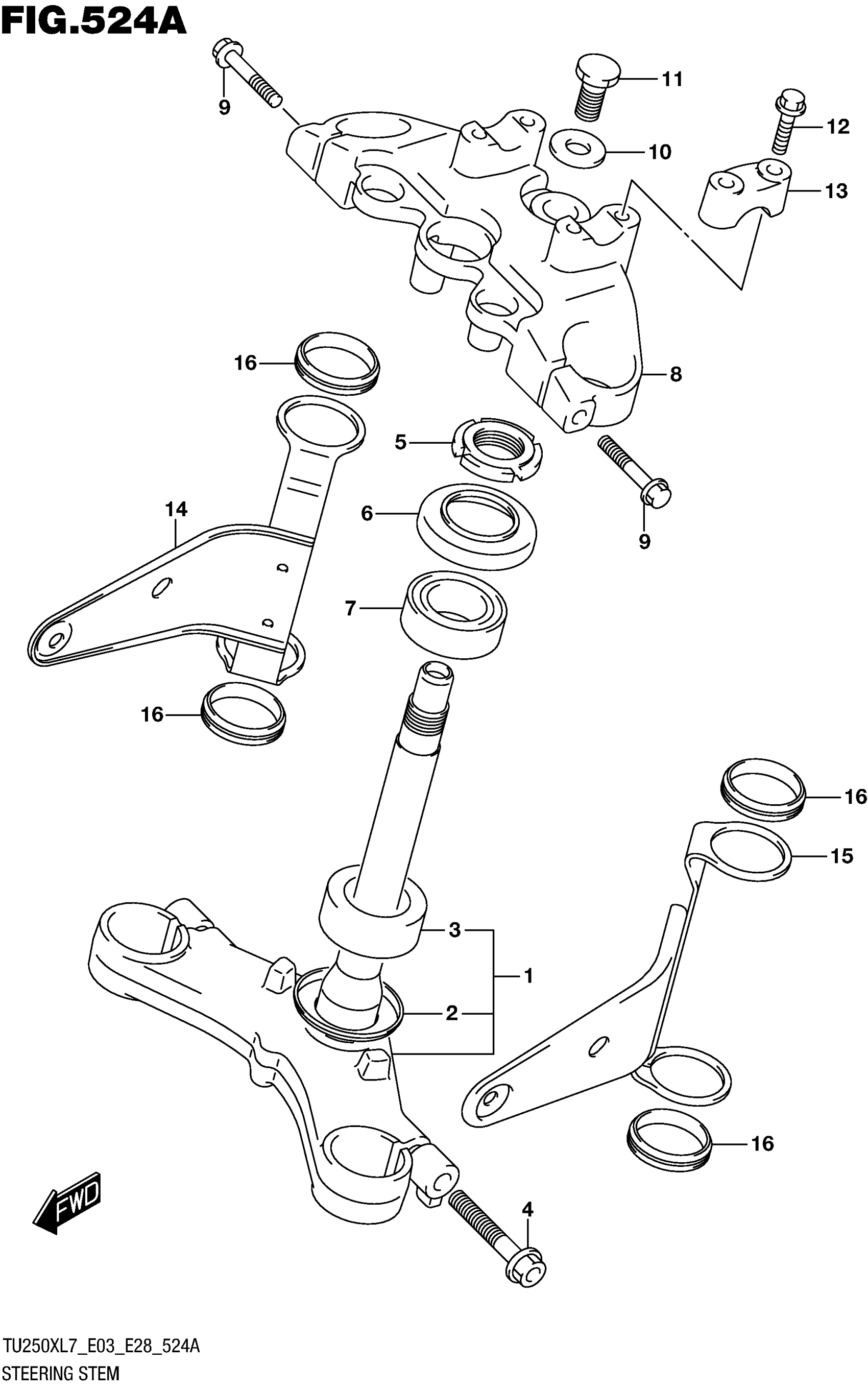

Suzuki TU250XL7 (2017) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING

51410-25DC0

Unavailable

2

.SEAL, STEERING LOWER

51644-12C00

$9.04

3

.BEARING (30X55X17)

09267-30010

$44.72

4

BOLT

01550-1040B

Unavailable

5

NUT, STEERING STEM

51631-28000

$19.60

6

SEAL, STEERING UPPER DUST

51643-49002

$13.92

7

BEARING (25X47X15)

09267-25009

$56.72

8

HEAD, STEERING STEM

51311-25D00

Unavailable

9

BOLT

01550-0840B

$4.45

10

WASHER

51356-43530

$7.40

11

BOLT

51352-43530

$17.40

12

BOLT

01550-0835B

$4.42

13

HOLDER, HANDLE (BLACK)

56211-27200-291

$20.22

14

BRACKET, HEADLAMP RH

51530-26G50

$152.71

15

BRACKET, HEADLAMP LH

51540-26G50

$162.90

16

CUSHION, HEADLAMP BRACKET

51553-34300

$6.00
