Description

Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

$67.32

2

.COVER

31861-47E00

$16.15

3

.FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

WIRE, STARTER MOTOR LEAD

33810-26G20

Unavailable

6

RECTIFIER ASSY

32800-20H00

$318.90

7

BOLT (6X30)

09116-06103

$3.15

8

SPACER (6.2X8.4X6.9)

09180-06325

$3.79

9

CUSHION (8.4X18X6)

09320-08066

$8.24

10

NUT

08316-1006A

$2.19

11

CONTROL UNIT,FI This part replaces 32920-26G31.

32920-26G32

$396.42

12

CUSHION, FI CONTROL UNIT

32980-26G10

Unavailable

13

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

14

COIL ASSY,IGNITION This part replaces 33410-26G00.

33410-26G01

$119.72

15

SPACER (6.2X12X14)

09180-06174

$5.57

16

BOLT

01547-0630B

$2.73

17

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.73

18

SEAL, SPARK PLUG

33541-38210

$4.68

19

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

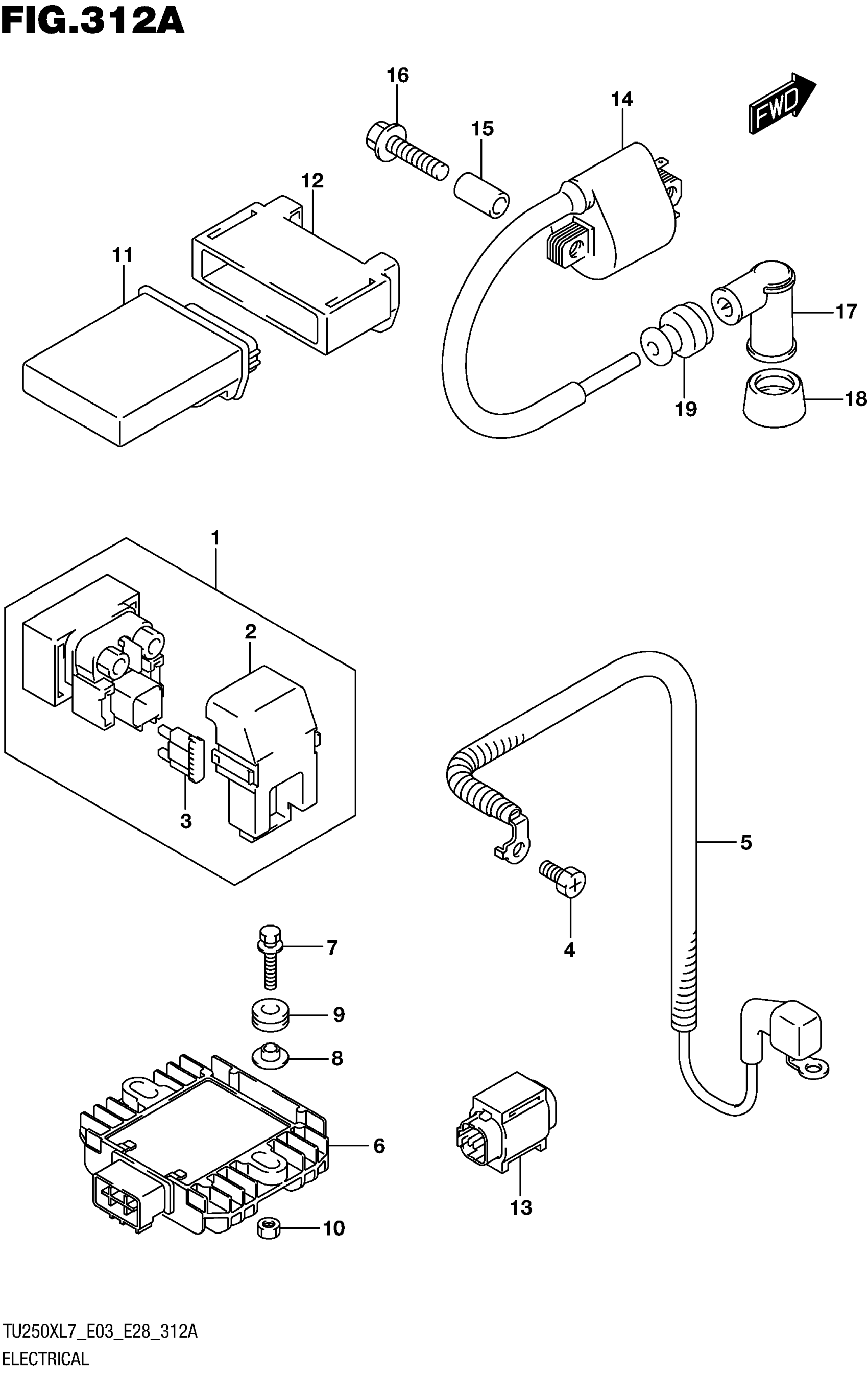

Suzuki TU250XL7 (2017) ELECTRICAL Diagram
