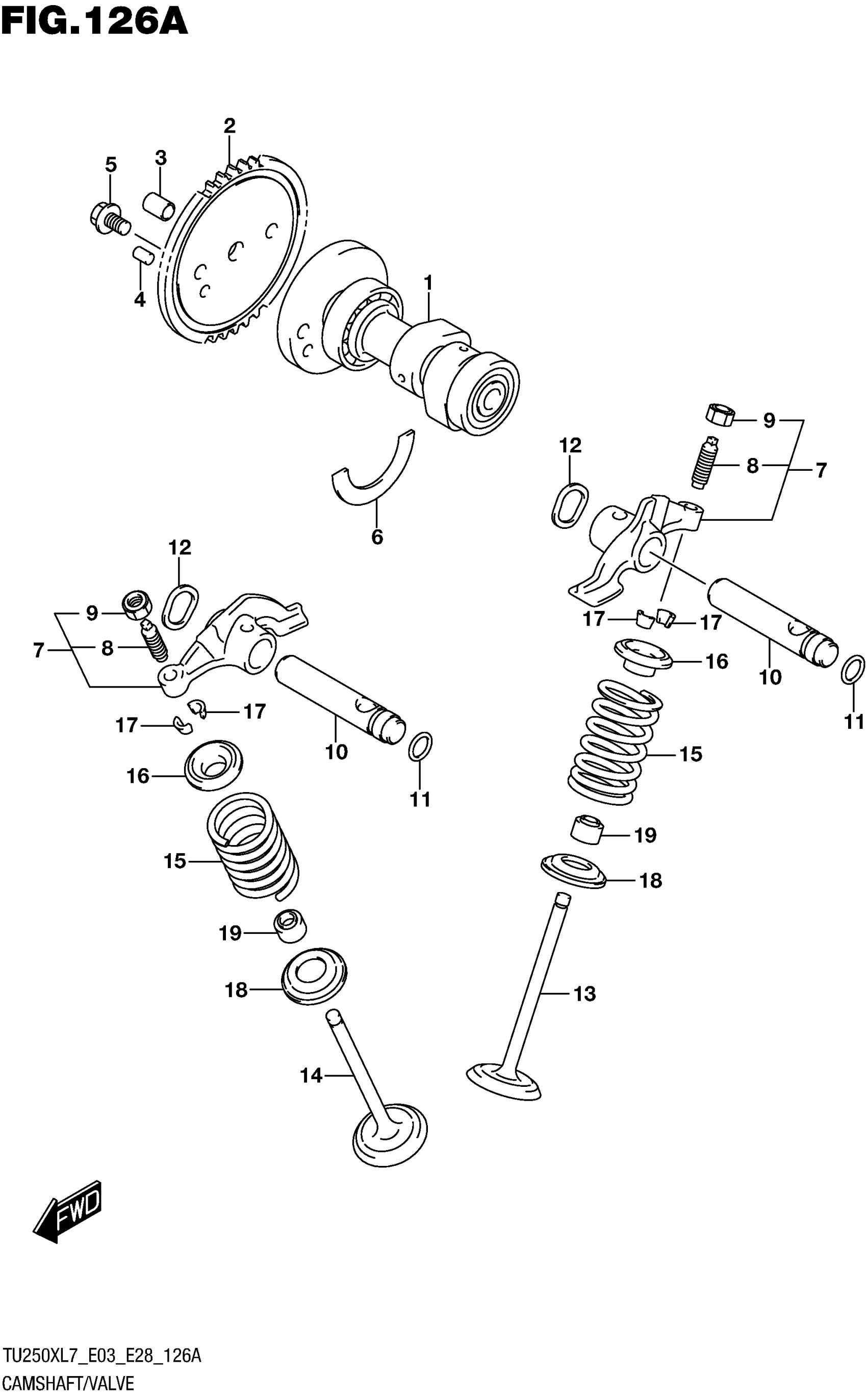

Suzuki TU250XL7 (2017) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-26G00

$213.72

2

SPROCKET, CAMSHAFT (NT:42)

12741-26G00

Unavailable

3

PIN (8X11)

09206-08001

$1.78

4

PIN (5X8)

09261-05005

$1.49

5

BOLT

07120-0612A

$2.50

6

C RING

09390-37001

Unavailable

7

ARM, VALVE ROCKER

12840-26G00

$54.75

8

.SCREW, TAPPET ADJUSTING

12842-38A00

$6.17

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

SHAFT, VALVE ROCKER ARM

12861-26G01

Unavailable

11

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

12

WASHER

09164-12021

$2.03

13

VALVE, INTAKE

12911-26G00

$42.82

14

VALVE, EXHAUST

12912-26G00

$69.90

15

SPRING, VALVE

12922-05240

Unavailable

16

RETAINER, VALVE SPRING

12931-49201

$6.91

17

COTTER, VALVE

12932-24400

$1.94

18

SEAT, VALVE SPRING

12933-38200

$6.38

19

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70
