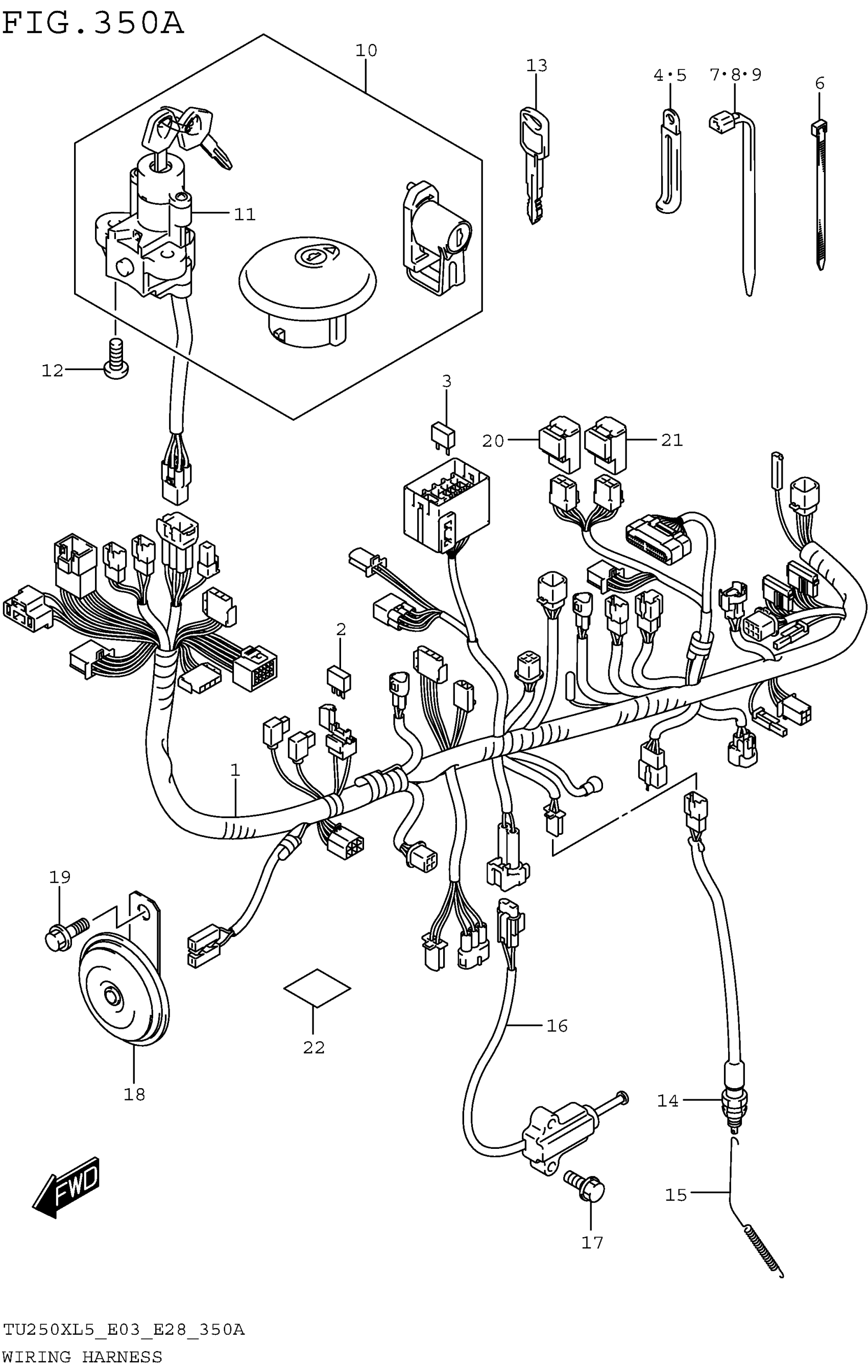

Suzuki TU250XL5 (2015) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING

36610-26G70

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

FUSE (10A)

09481-10501

$2.06

4

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

5

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.65

6

CLAMP (L:95)

09407-10403

Unavailable

7

CLAMP (L:95)

09407-11401

$2.63

8

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:190)

09407-19401

$3.05

10

LOCK SET This part replaces 37106-33890.

37106-33892

$327.08

11

LOCK ASSY,STEER This part replaces 37100-33EB0.

37100-33EB1

$208.02

12

BOLT (8X20)

09139-08016

$3.37

13

KEY, BLANK | OPT

37146-33E00

$21.21

14

SWITCH ASSY, STOP LAMP

37740-45D00

$18.27

15

SPRING

09443-06031

$4.13

16

SWITCH ASSY,SIDE STAND This part replaces 37840-35F00.

37840-35F02

$56.65

17

BOLT

01550-0616B

$2.48

18

HORN ASSY

38500-26G10

$87.70

19

BOLT

01550-0812B

$2.73

20

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

21

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

22

TAPE, WIRING HARNESS

36611-41F00

Unavailable
