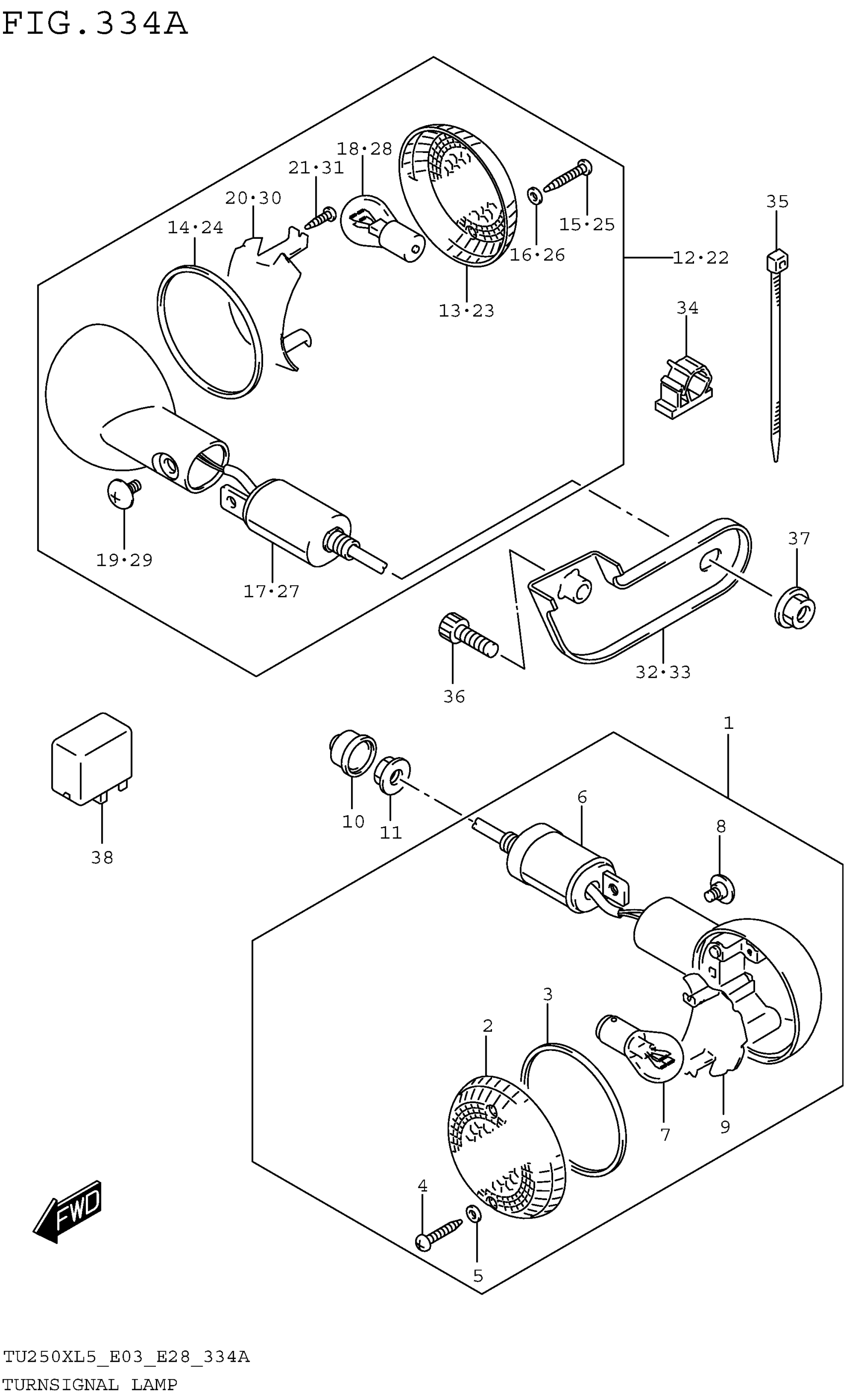

Suzuki TU250XL5 (2015) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL

35601-33D30

$160.20

2

LENS

35612-38A01

$13.02

3

GASKET

35613-38A00

$10.99

4

SCREW

03211-0425B

$2.95

5

GASKET

35627-43010

$2.29

6

STAY, TURNSIGNAL, FRONT

35619-45C10

$54.29

7

BULB (12V,21W)

09471-12045

$2.95

8

SCREW

35623-38A01

$4.75

9

REFLECTOR

35624-38A20

Unavailable

10

COVER, TURNSIGNAL LEAD

35698-01480

$5.75

11

NUT

08316-1010A

$2.95

12

LAMP ASSY, REAR TURNSIGNAL RH

35603-33D40

$371.40

13

LENS

35652-38A21

$15.43

14

GASKET

35613-38A00

$10.99

15

SCREW

03211-0425A

Unavailable

16

GASKET

35627-43010

$2.29

17

STAY, TURNSIGNAL

35619-45C10

$54.29

18

BULB (12V,21W)

09471-12045

$2.95

19

SCREW

35623-38A01

$4.75

20

REFLECTOR

35654-38A20

Unavailable

21

SCREW

03211-0412A

$0.73

22

LAMP ASSY, REAR TURNSIGNAL LH

35604-33D40

$371.40

23

LENS

35652-38A21

$15.43

24

GASKET

35613-38A00

$10.99

25

SCREW

03211-0425A

Unavailable

26

GASKET

35627-43010

$2.29

27

STAY, TURNSIGNAL

35619-45C10

$54.29

28

BULB (12V,21W)

09471-12045

$2.95

29

SCREW

35623-38A01

$4.75

30

REFLECTOR

35654-38A20

Unavailable

31

SCREW

03211-0412A

$0.73

32

BRACKET, REAR TURNSIGNAL RH

35621-26G20

$35.30

33

BRACKET, REAR TURNSIGNAL LH

35641-26G20

$35.30

34

CLAMP

09403-04310

$5.82

35

CLAMP (L:145)

09407-14407

$2.80

36

BOLT

01550-0625B

$2.43

37

NUT

08316-1010A

$2.95

38

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
