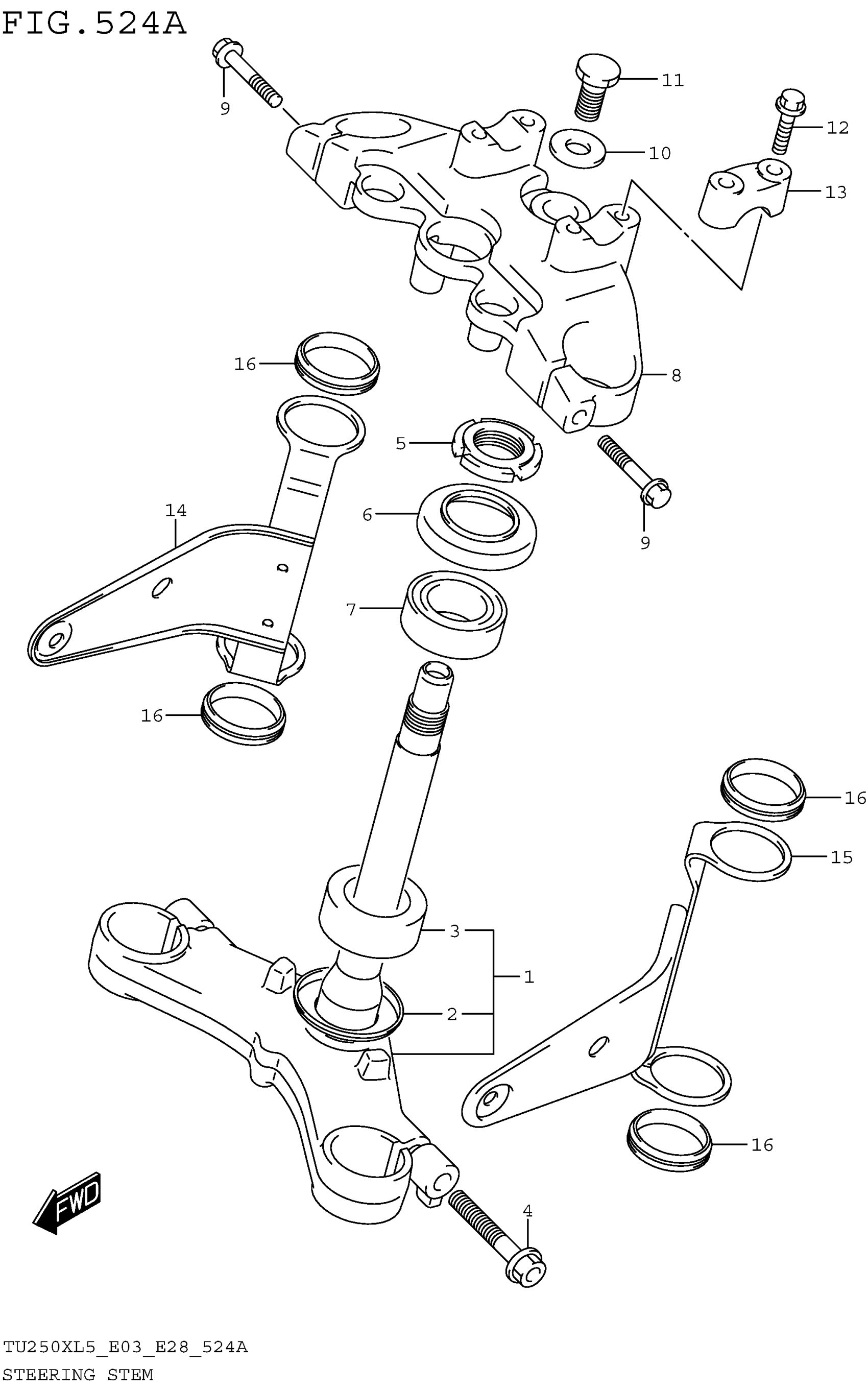

Suzuki TU250XL5 (2015) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING

51410-25DC0

Unavailable

2

SEAL, STEERING LOWER

51644-12C00

$9.44

3

BEARING (30X55X17)

09267-30010

$48.11

4

BOLT

01550-1040B

Unavailable

5

NUT, STEERING STEM

51631-28000

$17.37

6

SEAL, STEERING UPPER DUST

51643-49002

$12.32

7

BEARING (25X47X15)

09267-25009

$52.18

8

HEAD, STEERING STEM

51311-25D00

Unavailable

9

BOLT

01550-0840B

$4.10

10

WASHER

51356-43530

$6.55

11

BOLT

51352-43530

$15.42

12

BOLT

01550-0835B

$3.95

13

HOLDER, HANDLE (BLACK)

56211-27200-291

$17.90

14

BRACKET, HEADLAMP RH

51530-26G50

$135.95

15

BRACKET, HEADLAMP LH

51540-26G50

$146.38

16

CUSHION, HEADLAMP BRACKET

51553-34300

$4.52
